8 To obtain the toe measurement, subtract the distance reading
between the front of the tires (B) from the distance reading
between the back of the tires (A).
The result (TOE) should be in the range of 1.8-2.9mm.
9 Use the following procedure if the toe measurement is not
within the correct specifications.
a)
Loosen the tube clamp nut and bolt on each end of the
cross tube.
b)
Turn the cross tube until the specified toe distance is
obtained.
c)
The threaded portion of the tie rod end must be installed
into the cross tube beyond the point where the tube slot
stops.
d)
Tighten the nut and bolt on each end of the cross tube to
the specified torque. Refer to the Torque specifications.
10 Repeat Steps 1 - 8 to measure the toe dimension.

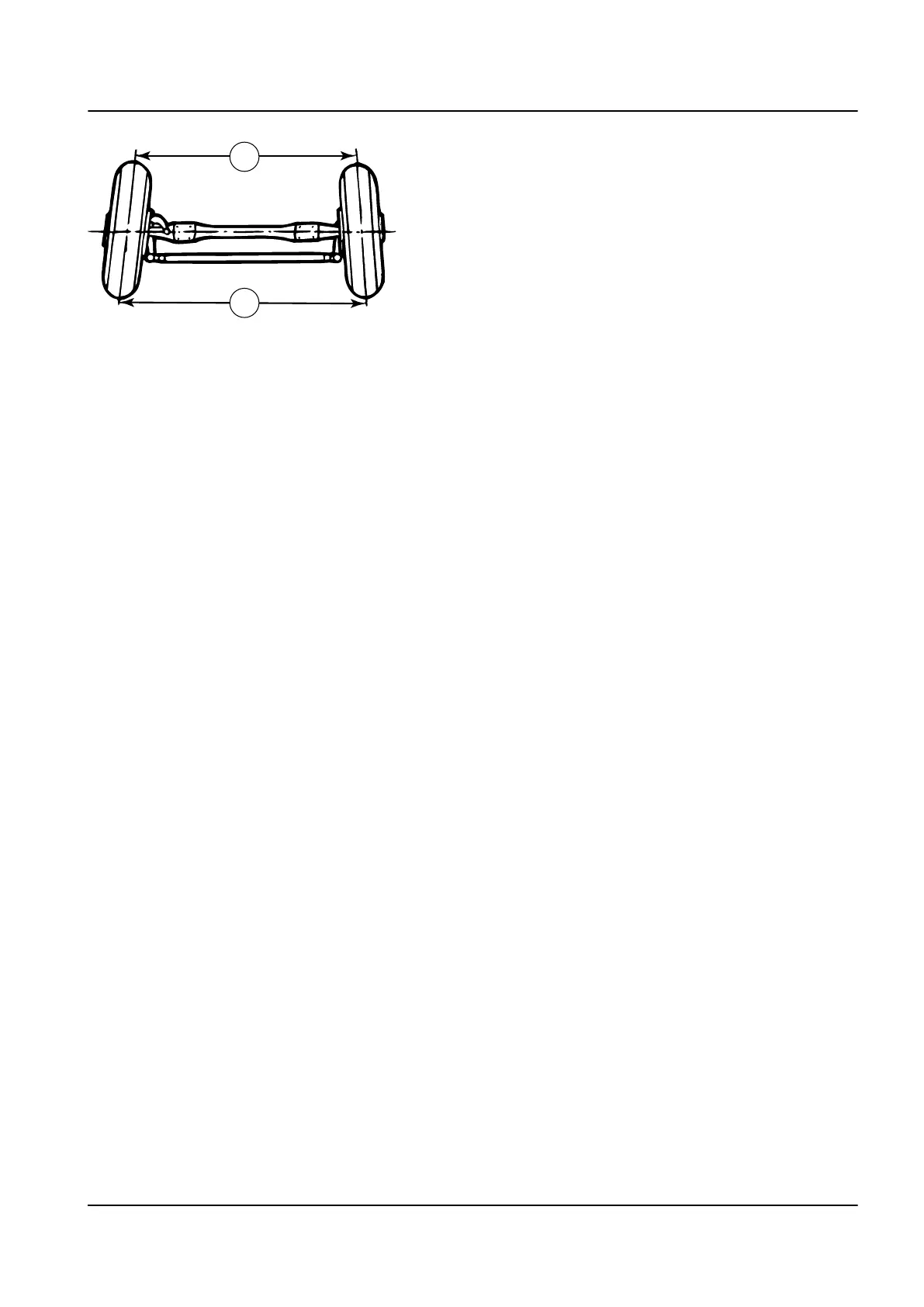

Fig. : Top view (front side of the vehicle is above the
illustration)
5 Steering – Wheel alignment 7
TL2 Maintenance Manual
591 003 Default
