F Technical data
Specifications and dimensional
drawing
General
This chapter includes the dimensional drawing of the machine, a
summary of component specifications and settings, and specifica‐
tions for the recommended oils, fluids, and greases to be used.
At the end of the chapter there is a table of the most common units
and their abbreviations, as well as conversion tables for the SI units
and length, area, volume, weight, mass, and pressure measure‐
ments.

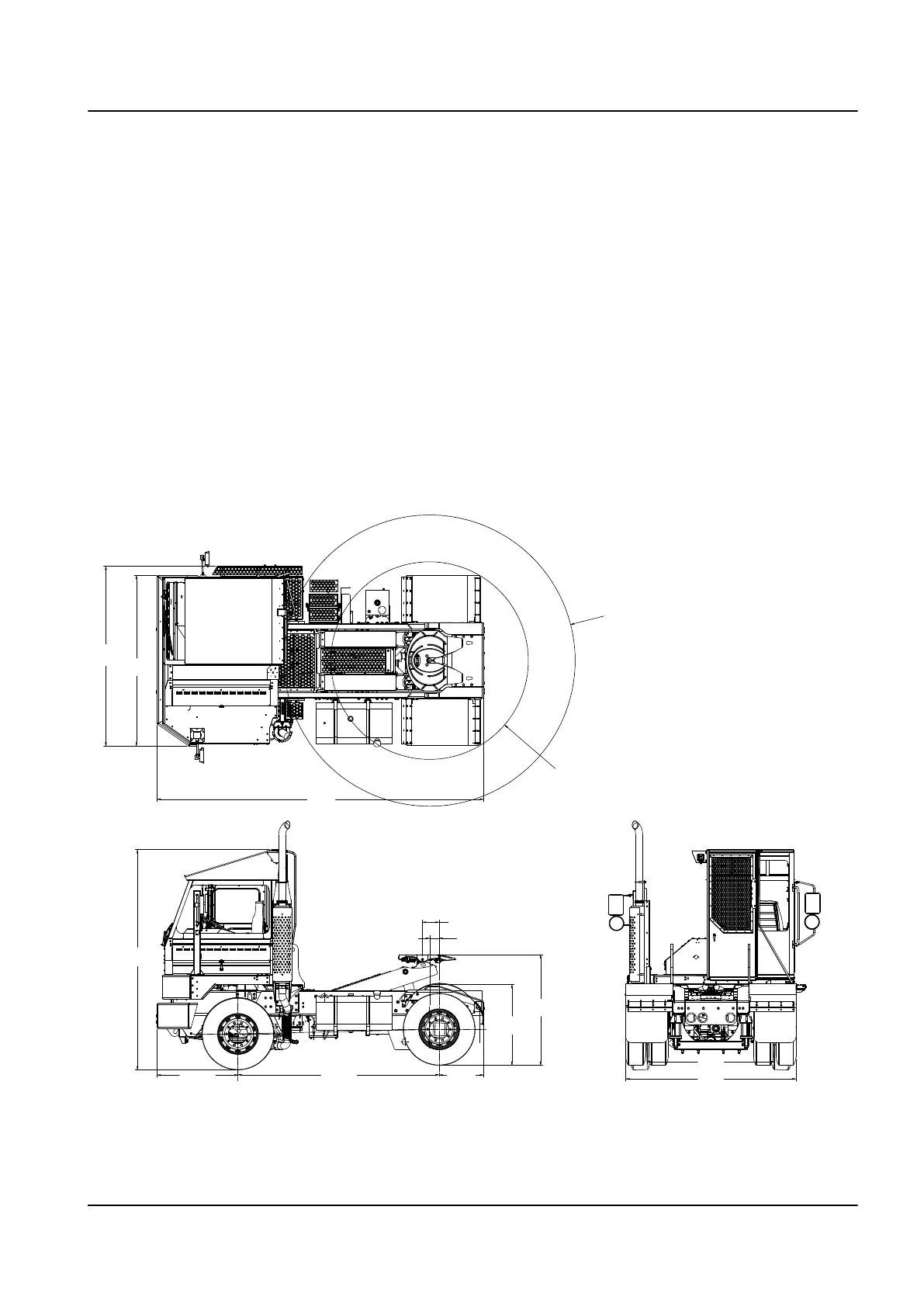

Dimensional drawing
103.19
[2621.09]
98
[2489.2]
187.4
[4760]
R 56.7
[1440.26]
TO REAR AXLE BRKT
R 83.59
[2123.19]
TO CAB REAR DOOR
9.6
[243.94]
UP
5.49
[139.57]
DOWN
63.56
[1614.39]
UP
46.37
[1177.88]
DOWN
0.98
[25.01]
116
[2946.4]
46.39
[1178.25]
126.42
[3211.05]
74.02
[1880]
80.43
[2043]
REAR
F Technical data – Specifications and dimensional drawing 3
TL2 Maintenance Manual
591 003 Default
