1 Make sure that the lifting frame of the machine is in the lower
position.

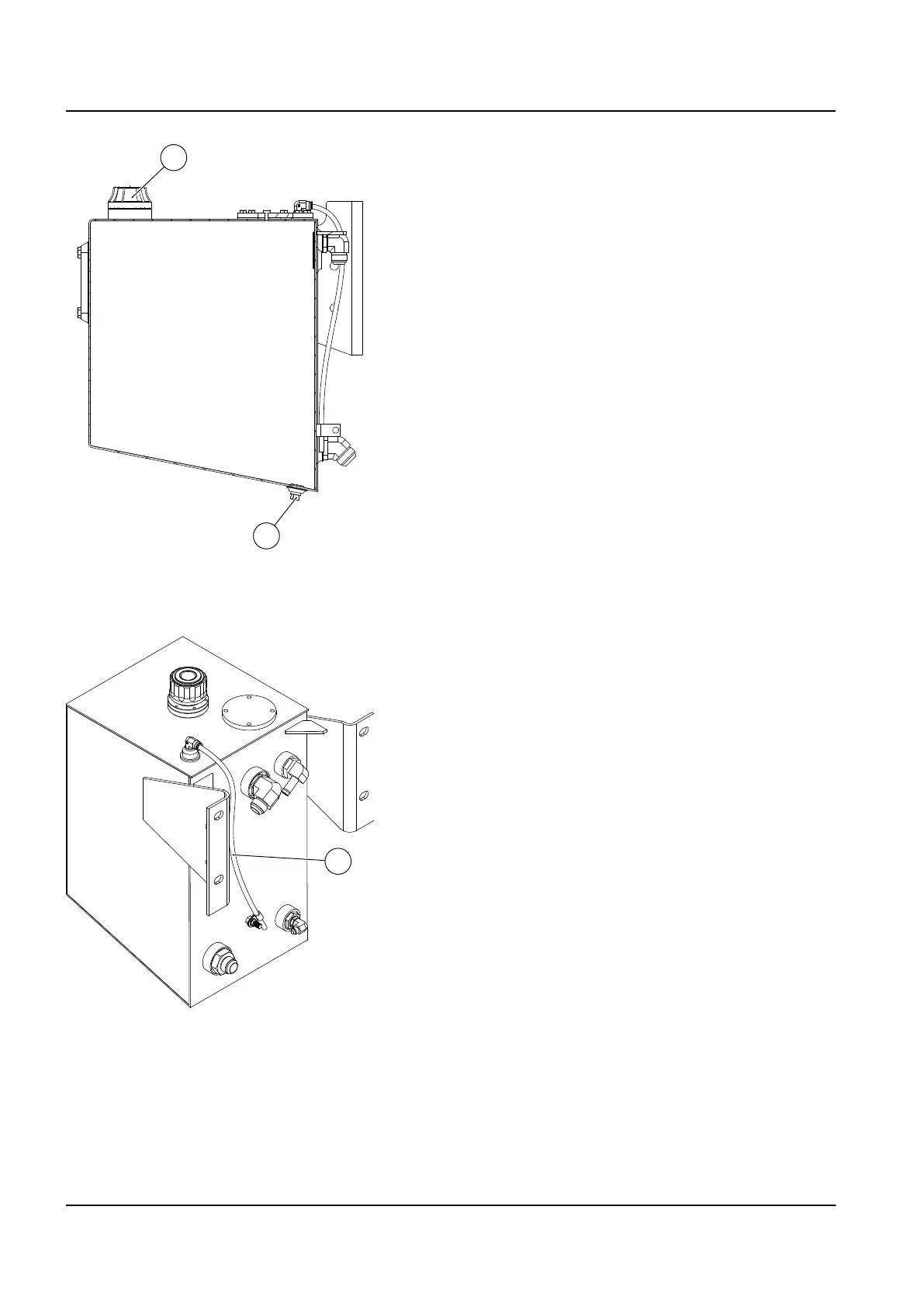

2 Place a container below the oil tank.
3 Open the darin plug (A) and drain the oil into the container.
4 Close the drain plug (A).
5 Open the filler cap (B).
6 Fill the oil tank to the correct level.
7 Close the filler cap (B).
8 Check the system for leaks.
Examine the hydraulic oil tank breather
The examination of the hydraulic oil tank breather is done during the
oil level examination or oil change.
1 Examine that the breather hose (A) is intact along its entire
length. Replace a damaged hose.
2 Use a screwdriver or other suitable tool to examine that the
free end of the hose is open.
3 Blow compressed air carefully through the oil filler and inspec‐
tion hole. Examine to ensure that air escapes through the
breather hose (A). If the hose is clogged, replace the hose.
NOTE
Do not blow the air with high pressure. Do not blow the air from the
breather towards the hydraulic tank.
4 10 Common hydraulics – 10.3 Tanks and accumulators
TL2 Maintenance Manual
591 003 Default
