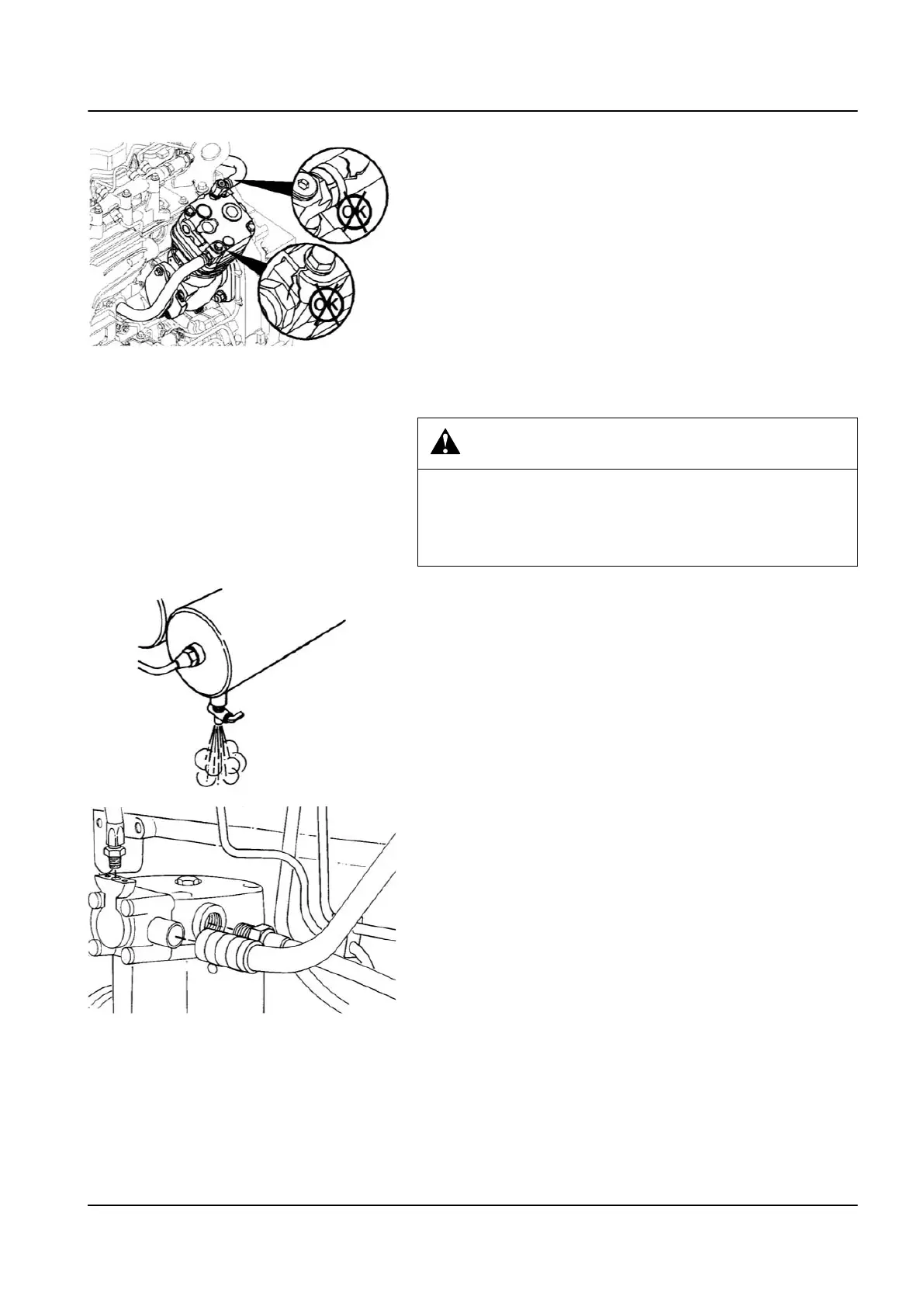

1 Examine the compressor housing for cracks and damage.
2 Examine the hydraulic pump couplings for cracks, wear, or
other damage, if equipped.
3 Examine the air plumbing for splits or cracks.
4 Examine the air compressor mounting nuts, including support
bracket, for loose or damaged hardware.
•
Mounting torque value 77Nm (57 ft-lb)
•
Bracket torque value 45Nm (33 ft-lb)
5 Operate the engine and examine for correct compressor oper‐
ation.
6 Examine for air, oil, and coolant leaks.
Examine air compressor discharge lines
WARNING
FLYING MATERIAL HAZARD!
Flying debris and dirt can cause personal injury.
Wear appropriate eye and face protection when using compressed
air.
1 Stop the engine.
2 Open the drain valve on the wet tank to release the system air
pressure
3 Remove the air compressor discharge line from the air com‐
pressor.
1 Engine – 1.6 Intake and exhaust system 19
TL2 Maintenance Manual
591 003 Default
