2.7 Cooling system
General
Transmission oil cooler is fitted at the engine radiator. The circula‐
tion of oil to the cooler is controlled automatically.
BB AA

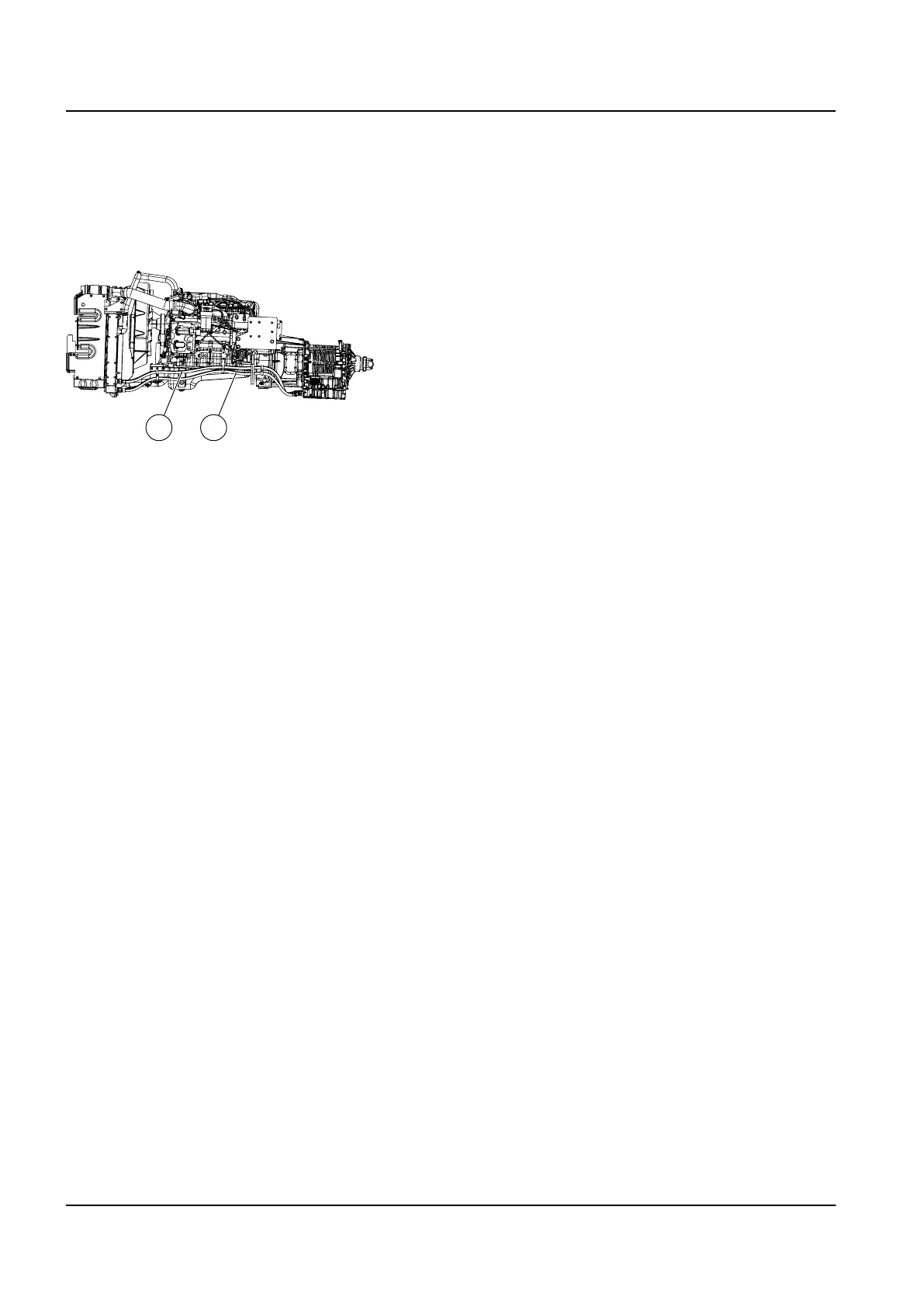

A. Cooling hose from the transmission to cooler
B. Cooling hose from the cooler to transmission
