KaControl for Door Air Curtains
INSTALLATION AND OPERATING INSTRUCTIONS
29
Door air curtains 1.96
Functional description
• Switching door air curtain on and off using the KaController
• Door air curtain switched on: - Winter mode: shut-off valve OPEN, pre-set fan stage running
continuously
- Summer operation: shut-off valve CLOSED, pre-set fan stage
running continuously
• Operating options on the KaController: - ON/OFF
- Fan stage setting 1, 2, 3, 4, 5
- Timer setting ON/OFF
Note:
• Automatic summer / winter mode changeover by external thermostat. Changeover by the
KaController is not possible!
Parameter setting: Standard
DIP switch setting:
DIP switch PCB
10.2 System 2
External thermostat
Type 30058
for summer / winter
changeover
Contact open = summer
Contact closed = winter
Door air curtain
Office
ON
OFF

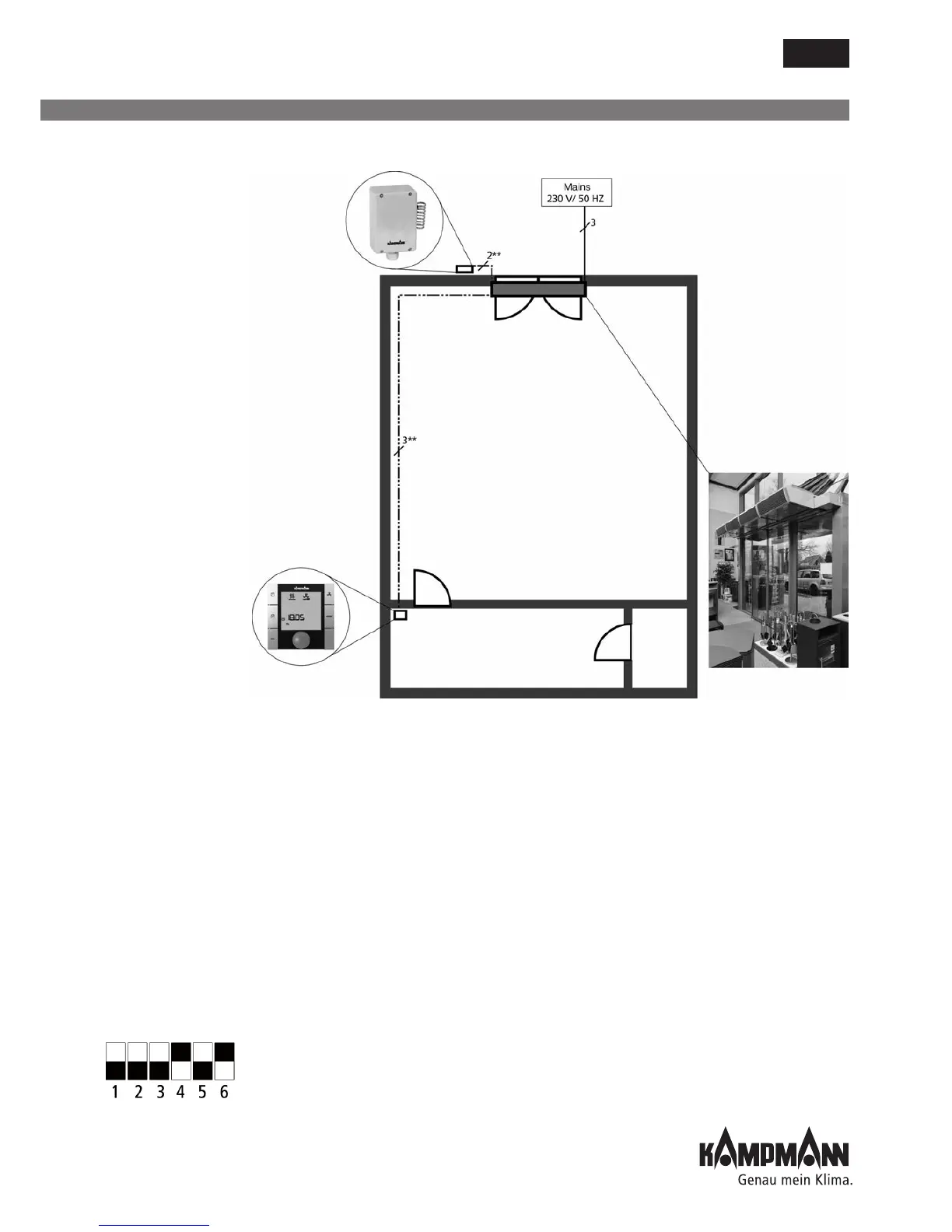

Cabling:
** Lay shielded, paired BUS cables, at least
Cat 5 (AWG 23), in a linear pattern
separately from high voltage cables!
The formation of star points, for instance,
in junction boxes is not permitted.
All other connections can be done in
NYM-J (or similar).
KaController
Typ 3210001
or Type 3210002
Max. cable length 30 m
