KaControl for Door Air Curtains
INSTALLATION AND OPERATING INSTRUCTIONS
31
Door air curtains 1.96
10.4 System 4
Functional description
• Switching door air curtain on and off using the KaController
• Door air curtain switched on: Room temperature control,
- Room temp. < Target value - valve OPEN, fan running continuously in the set stage
- Room temp. > Target value - valve CLOSED, fan running continuously in the set stage
• Operating options on the KaController: - ON/OFF
- Fan stage setting 1, 2, 3, 4, 5
- Timer setting ON/OFF
- Room temperature setpoint
Note:
• Automatic summer / winter mode changeover by external thermostat. Changeover by the
KaController is not possible!
• Fan only switches off if the KaController on the door air curtain is set to OFF
• Room frost protection at a room temperature of < 8 °C
• Set the temperature set point in summer to 35 °C!
Parameter setting: deviates from the standard: P036 = 0, P037 = 1
DIP switch setting:
DIP switch PCB
Sales floor
Door air curtain
Office
ON
OFF
External thermostat
Type 30058
for summer / winter
changeover
Contact open = summer
Contact closed = winter

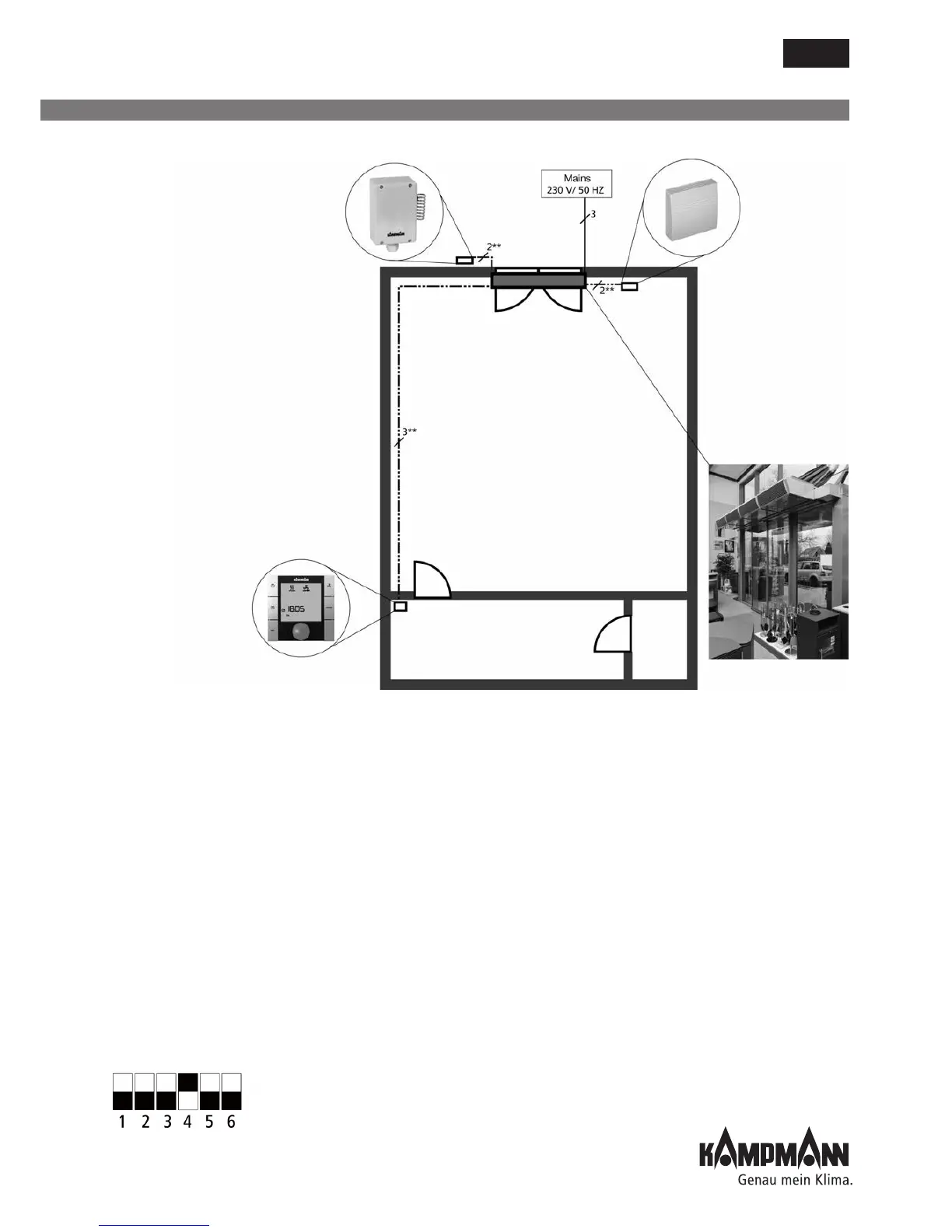

Cabling:
** Lay shielded, paired BUS cables, at least
Cat 5 (AWG 23), in a linear pattern
separately from high voltage cables!
The formation of star points, for instance,
in junction boxes is not permitted.
All other connections can be done in
NYM-J (or similar).
KaController
Typ 3210001
or Type 3210002
Room temperature
sensor Type 3250110
Max. cable length 30 m
