TECHNICAL DESCRIPTION MULTICAL® 21 & flowIQ® 2101 /..02 /..03
60 Kamstrup A/S •Technical Description • 5512-897_J1_GB • 06.2016
13.2 Application – environment
 Ambient temperature: 2 °C…55 °C
 Storage temperature: -25 °C…60 °C
 Protection class: IP65
13.3 Lifetime - Pulse Adapter
 16 years, with a single AA battery
 Battery change is possible
13.4 Connection of Pulse Adapter
From the factory, the meter configured in a way so it will not to transmit optical pulses – otherwise, battery
life will be shorten. Therefore, having mounted the Pulse Adapter, the installer must set up the meter to
transmit optical pulses.
The procedure is as follows:
1. Unfasten the screw of the adapter ring to allow mounting of the unit on the meter
2. Dismount the two screws at the top and remove the cover

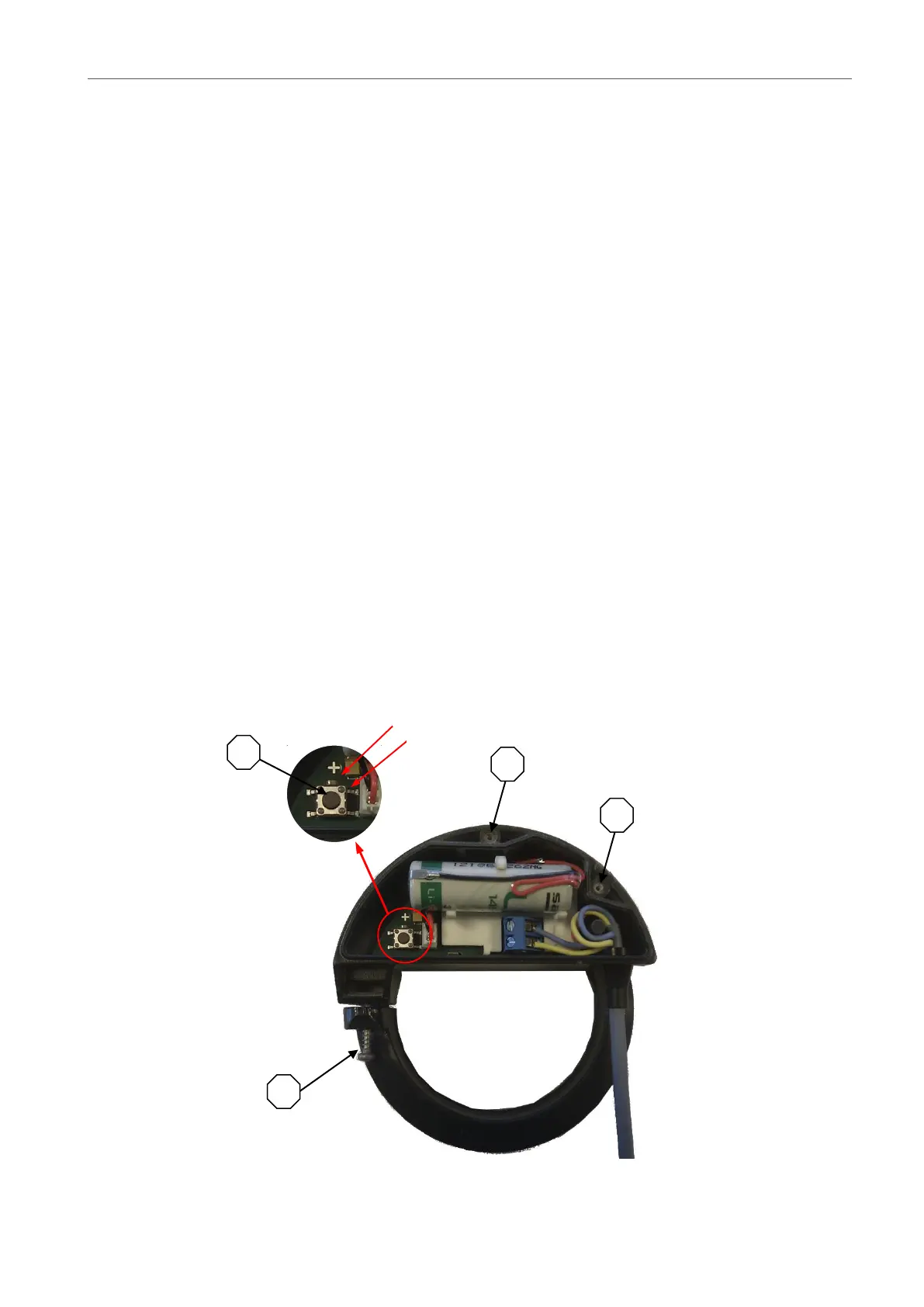

3. Push the button on the PCB, which is placed under the cover (see figure below)
Knap
LED
LED
Button
2
2
1
3
