TECHNICAL DESCRIPTION MULTICAL® 21 & flowIQ® 2101 /..02 /..03
64 Kamstrup A/S •Technical Description • 5512-897_J1_GB • 06.2016

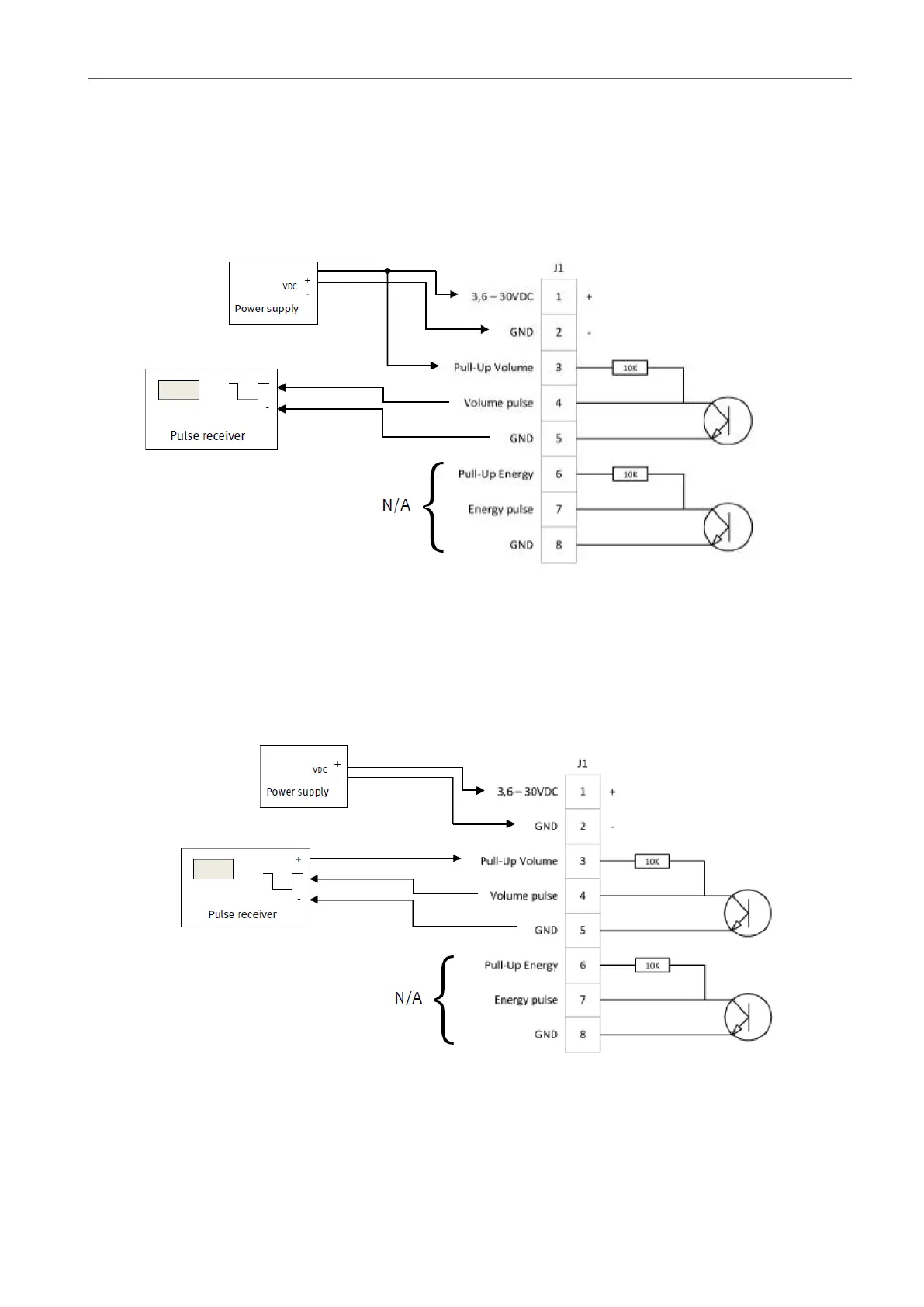

14.1.1 Connection with pulse receiver without supply
Here external supply for Pull-up is required
14.1.2 Connection with pulse receiver with supply
Here the supply from the receiver can be used.
