Electric connection
Connection to the Pulse Transmitter

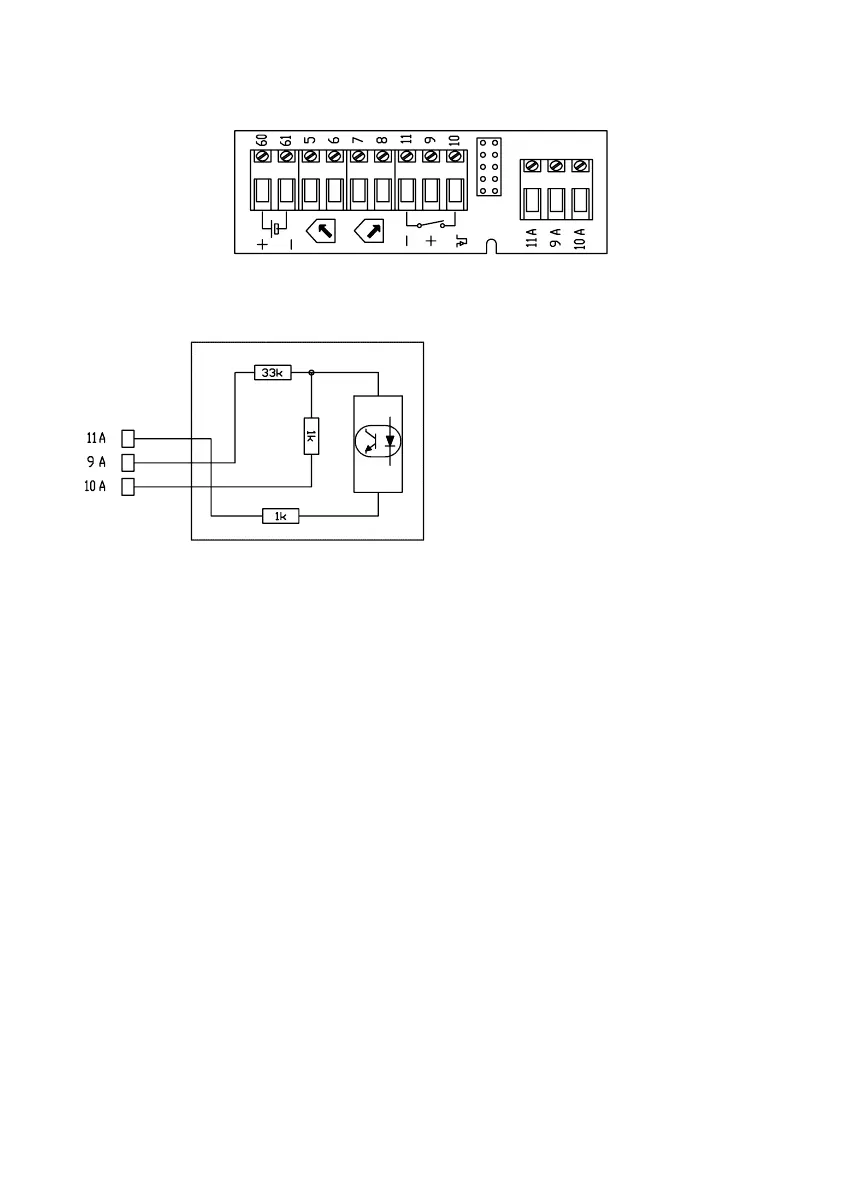

Block diagram
The Pulse Transmitter outlet
11A GND
9A Supply (3…10 VDC)
10A Signal
I
max
0.2 mA
If ULTRAFLOW® 54 is used as pulse generator for other equipment, it must be
connected through a Pulse Transmitter.
5512299_G2_DDD212-13_GB_02.2012
