MULTICAL® 603
4 Mounting the calculator

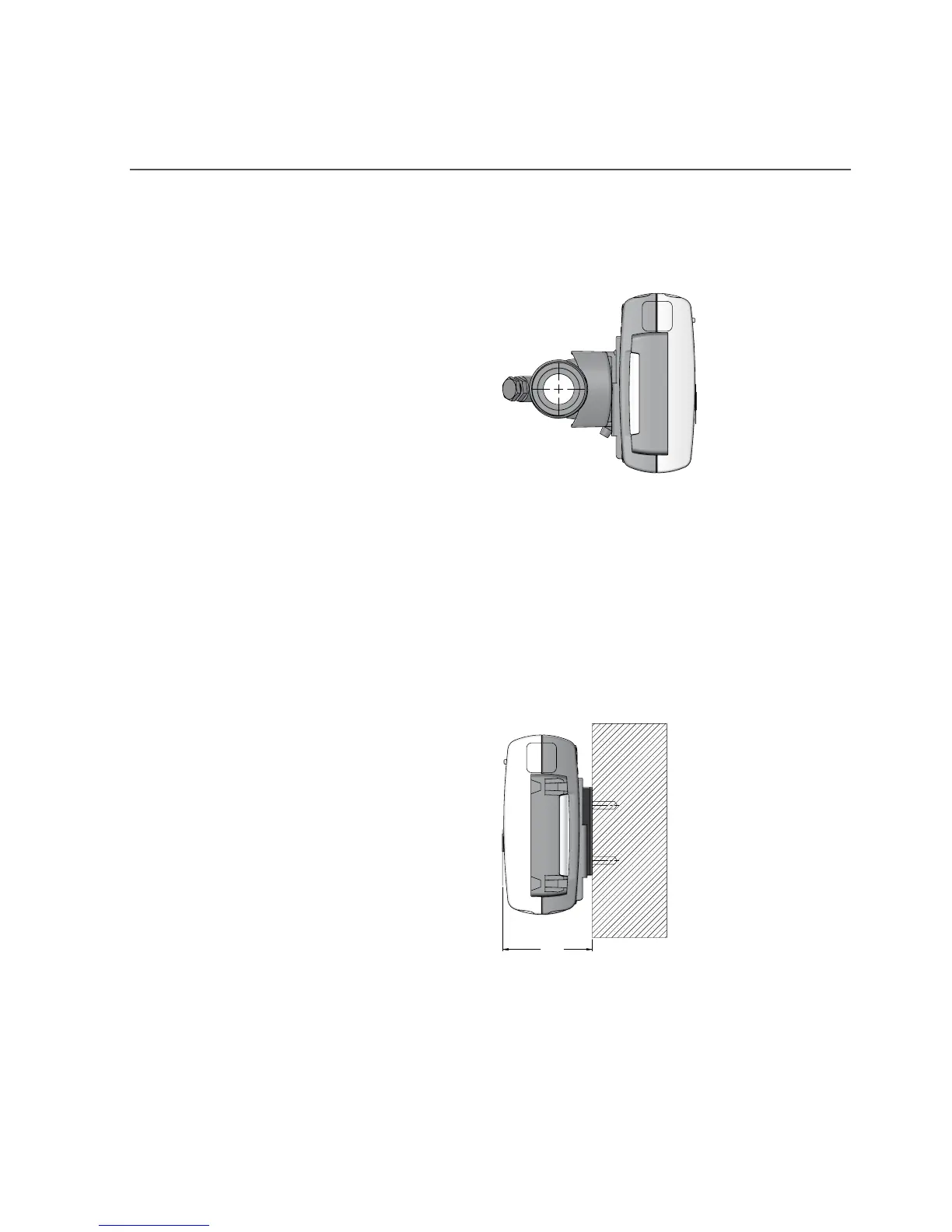

The MULTICAL® calculator can be mounted in different ways; either directly on ULTRAFLOW®
(compact mounting) or on a wall (wall-mounting).
4.1 Compact mounting
At compact mounting, the MULTICAL®
calculator is mounted directly on ULTRAFLOW®
by sliding the calculator onto the fitting of the
plastic casing of the flow sensor. Having been
mounted, the calculator is sealed with seal
and locking wire or sealing label. At the risk of
condensation (e.g. in cooling applications), the
calculator must be wall-mounted. In addition, a
condensation-proof flow sensor must be used
in cooling applications.
Note: In case of compact mounting, it may
be necessary to use the enclosed angle
fitting with some types of ULTRAFLOW®
to obtain the required combination of
viewing angle for the calculator’s display
and installation angle for ULTRAFLOW®.
4.2 Wall-mounting
MULTICAL® can be mounted on an even wall.
Wall-mounting requires a wall fitting which
is available as an accessory to MULTICAL®.
Use the wall fitting as a template to mark and
drill two 6 mm holes in the wall. Then mount
the wall fitting with the enclosed screws and
rawlplugs. Mount MULTICAL® on the wall fitting
by sliding the calculator onto the fitting in the
same way as it is done by compact mounting.
