MULTICAL® 603

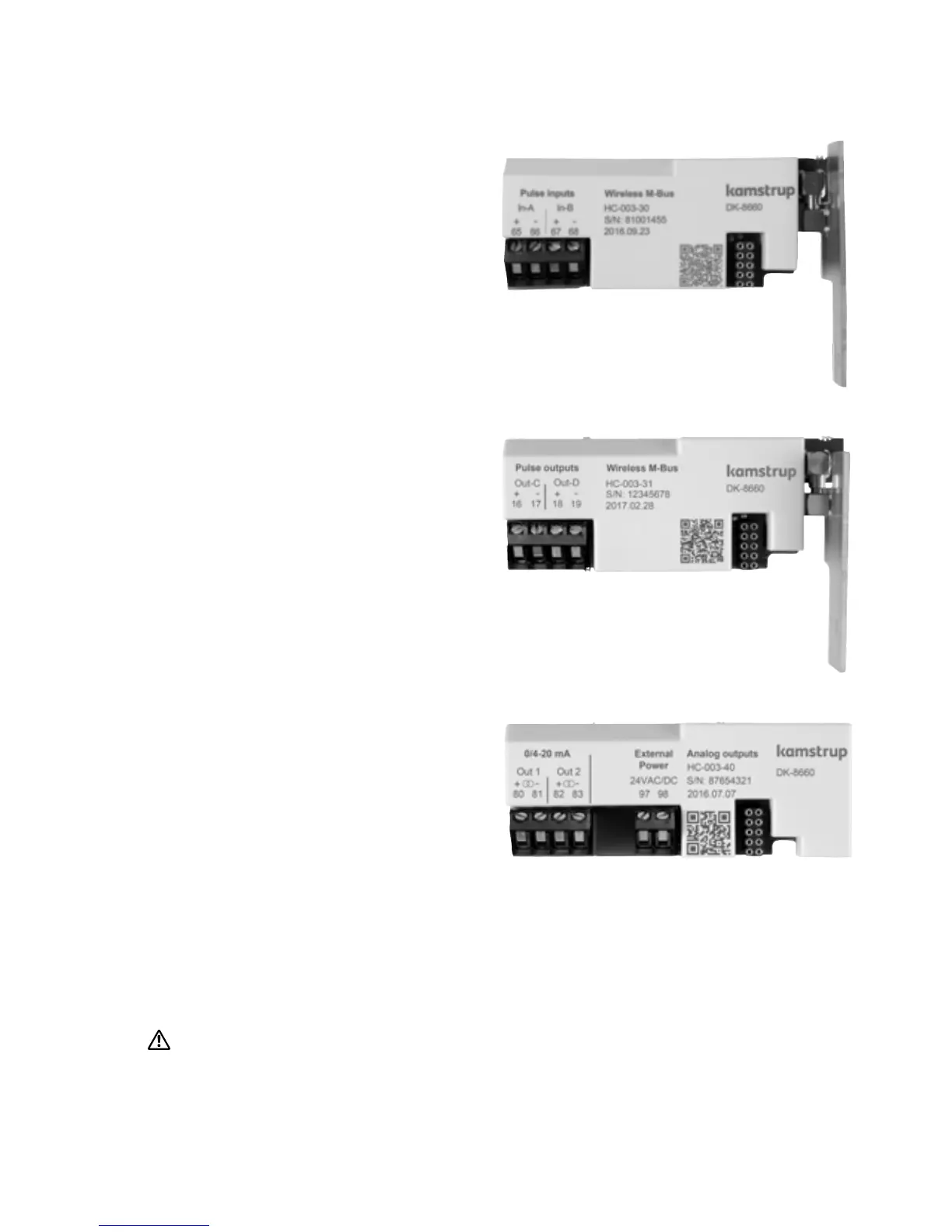

8.9 Wireless M-Bus + pulse inputs, type HC-003-30*
The wireless M-Bus module has been designed
to form part of Kamstrup’s hand-held Wireless
M-Bus Reader system, which operates within
the unlicensed frequency band in the 868 MHz
area. The radio module is available with either
internal or external antenna. Please note that
both antenna types use the same connection.
8.10 Wireless M-Bus + pulse outputs, type HC-003-31*
The wireless M-Bus module has been designed
to form part of Kamstrup’s hand-held Wireless
M-Bus Reader system, which operates within
the unlicensed frequency band in the 868 MHz
area. The radio module is available with either
internal or external antenna. Please note that
both antenna types use the same connection.
8.11 Analog outputs, type HC-003-40
Analog module with 2 pcs. 0/4..20 mA current
outputs. The current is measured directly via
the 2 sets of output terminals 80-81 and 82-
83.
The meter must be supplied by 24 VAC or 230
VAC.
The module requires an external 24 VAC power
supply for operating the analog outputs.
* The wireless M-Bus module must be connected to an internal or external antenna. When
mounting an external antenna, ensure that the antenna cable is not jammed or damaged when
the calculator is assembled. Before replacing or mounting modules, the supply to the meter
must be switched off. The same applies to mounting of an antenna.
