Kamstrup MULTICAL 603 User Manual

8 Kamstrup A/S • 55122070_A2_GB_07.2017
MULTICAL® 603
3.2 Mounting of ULTRAFLOW® ≤ DN125
90°90°
90° 90°

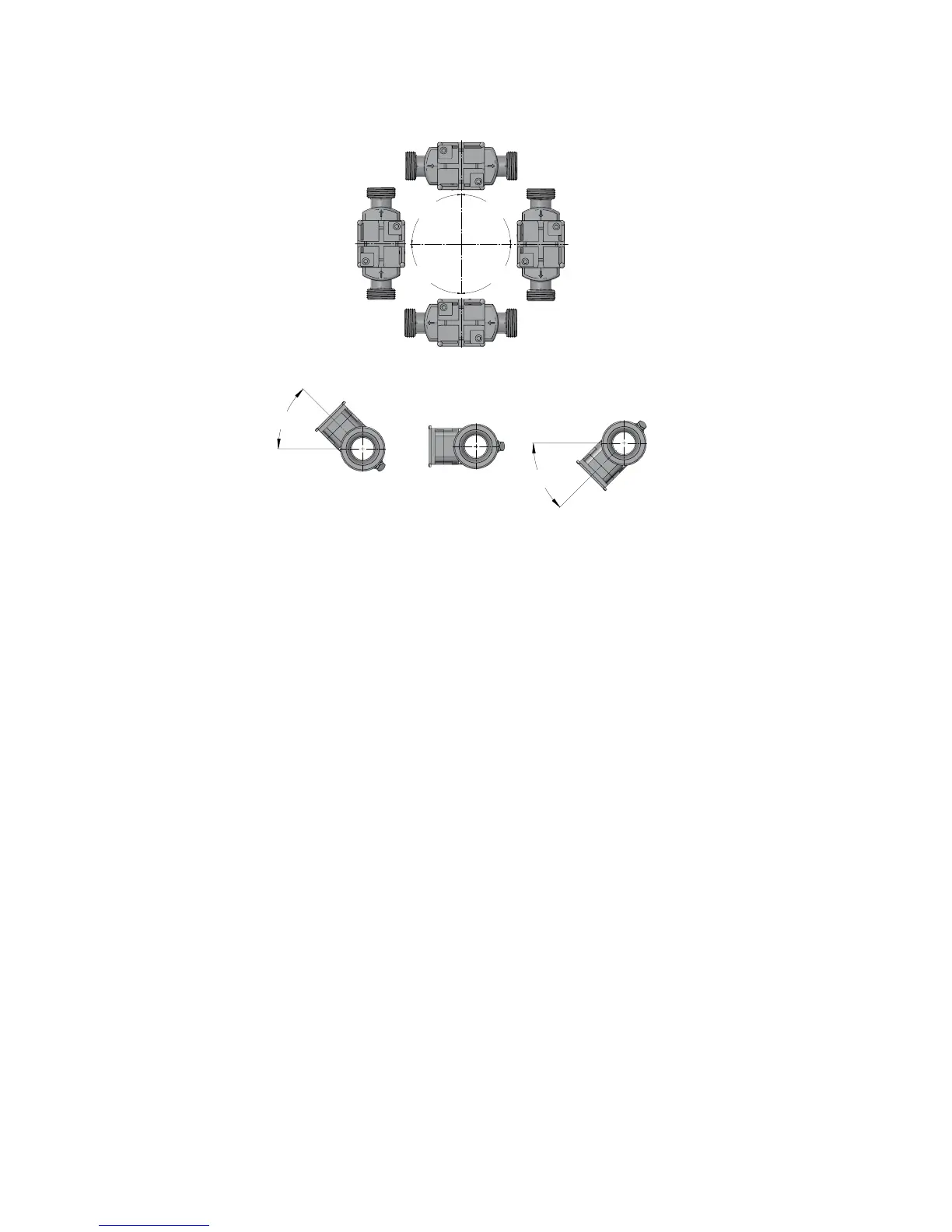

The flow sensor can be mounted horizontally, vertically or at an angle.
Max. 45°
Max. 45°
The flow sensor should be mounted with the plastic casing placed on the side (at horizontal mounting).
The flow sensor may be turned up to ±45° in relation to the pipe axis, if necessary*.
* Flow sensors of the type 65-5-XXHX-XXX in the sizes q
p
0.6...2.5 m
3
/h must not be turned
upwards.
Note: In installations in which the media temperature is below the ambient temperature,
ULTRAFLOW® in a condensation-proof version must be used. At the same time,
ULTRAFLOW® must not be mounted with the plastic casing turned to below 0°. It is
recommended to turn the plastic casing 45° upwards.
3.3 Mounting of ULTRAFLOW® 54 ≥ DN150
See Installation and user guide no. 5512-887

Kamstrup MULTICAL 603 Specifications

General

Flow Sensor	Ultrasonic
Battery Life	Up to 16 years
Power Supply	Battery
Communication Options	M-Bus, Wireless M-Bus, Modbus, BACnet
Display	LCD
Application	Heating and Cooling
Pressure Rating	PN16
Approval	MID
Accuracy	Class 2
Ambient Temperature Range	55°C
Housing Material	Brass
