PERMANENT GRAPHICS
Arrow graphics number are for both Full Matrix and 2-Line message signs. When enter-
ing the graphic code, the brackets must be included (example: [g1].

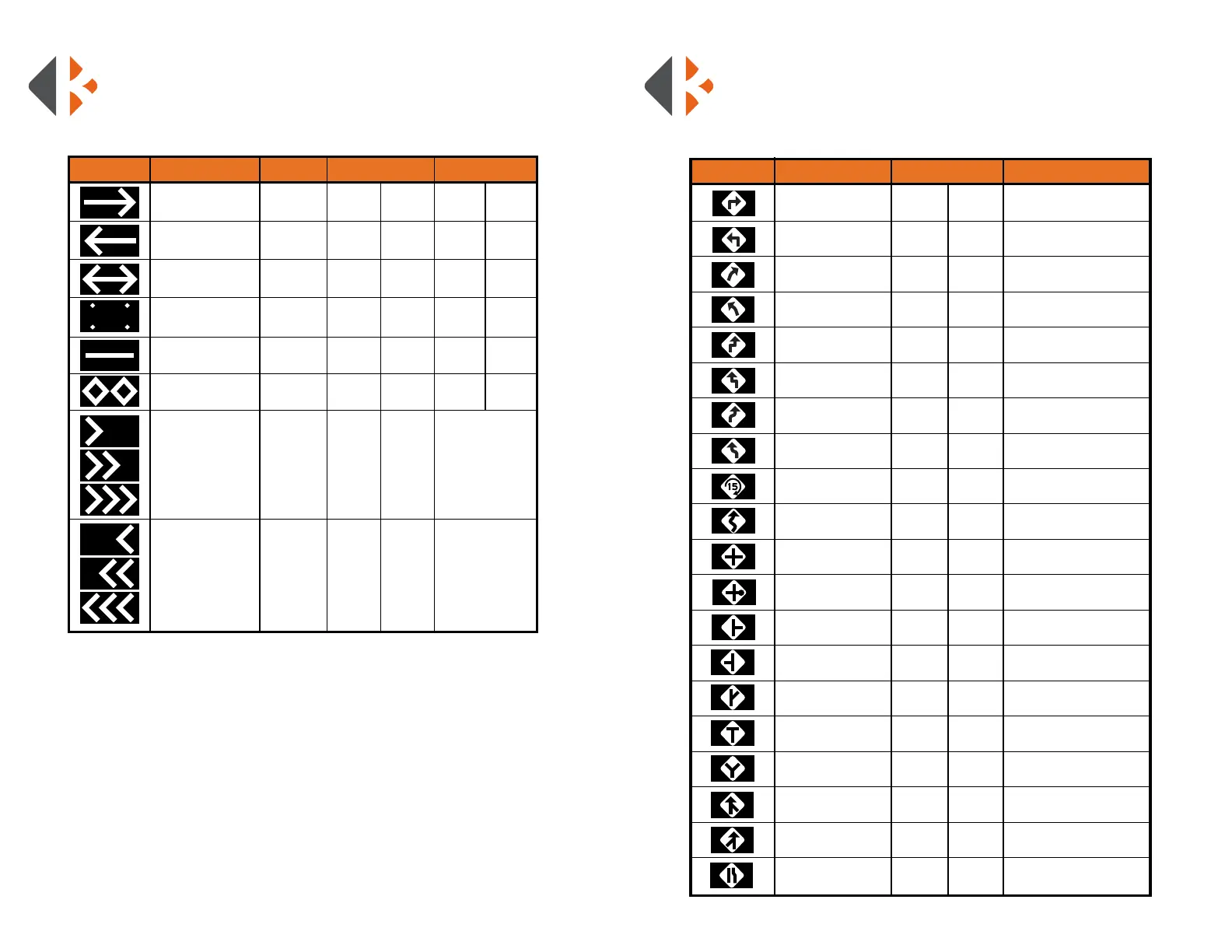

ARROW GRAPHICS THUMB WHEEL LIST
Arrow graphics are preset on the controller TW (Thumb Wheel) from the factory. Simply roll the
TW to the letter or number associated with the desired graphic for easy selection.
Arrow Right #9 216 G1 256 G61
Arrow Left A 217 G2 257 G62
Both Arrows B 218 G3 258 G63
Corners C 219 G4 259 G64
Straight Bar D 220 G5
Double Diamonds E 221 G6
Right Chevron F 222 G7
275: [pt10o0]
[g65]
[np][g66]
[np][g67]
[np]
Left Chevron 0 223 G8
261: [pt10o0]
[g68]
[np][g69]
[np][g70]
[np]
Graphic Description T W 2-Line 3-Line
FULL MATRIX PERMANENT GRAPHICS
This list is applies to 3-Line (Full Matrix) Message Signs only. Permanent message
number can be either of the two listed numbers. When entering the graphic code, the
brackets must be included (example: [g1].
Graphic Description Static Graphic Animated Series
Right Turn 216 G1
Left Turn 217 G2
Right Curve 218 G3
Left Curve 219 G4
Right “S” Bend 220 G5
Left “S” Bend 221 G6
Lane Shift Right 222 G7
Lane Shift Left 223 G8
Circle Around 224 G92: [g9]
Curves Ahead 225 G10
Crossroad 226 G11
Crossroad 227 G12 225: [g11]
Road Right 228 G13
Road Left 229 G14
Right Exit 230 G15
“T” Junction 231 G16
Fork 232 G17
Left Merge 233 G18
Right Merge 234 G19
Road Narrows 235 G20
