Operating Instructions KBL 3500
54
The replacement (see “Maintenance intervals”) must be carried
out by two people. The procedure is the same for both sides.

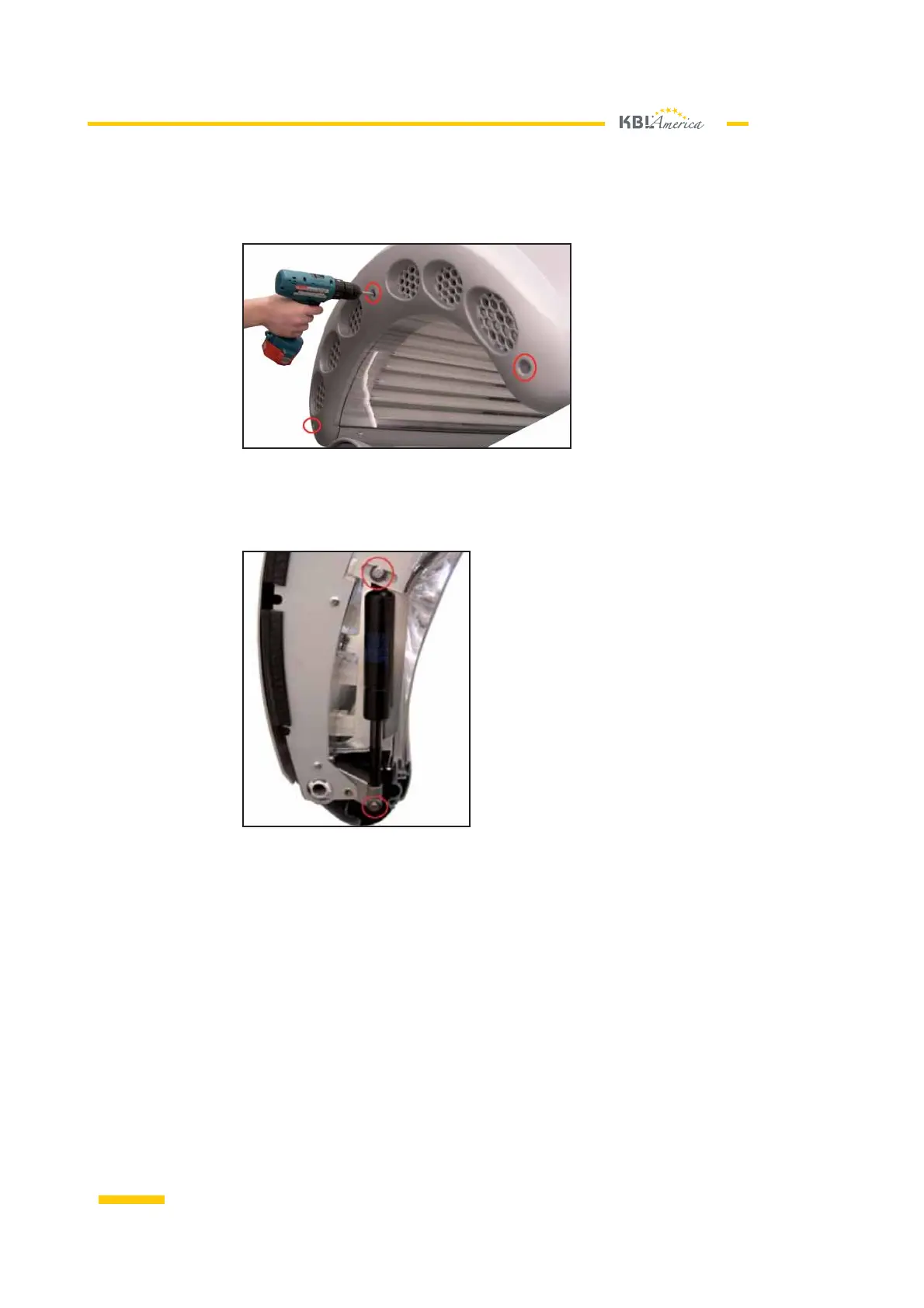

Undo the 3 screws on the lateral part of the canopy.
Remove the lateral part.
Fold up the canopy and undo the lock washers on the upper and lower
bolt with a screwdriver.
1.
2.
3.
ReplacementReplacement
