KBL 3500 - Replacing the Canopy Drive

53
Operating Instructions KBL 3500
Replacing the canopy drive
Replacing the canopy drive
The canopy drive consists of one gas spring each on
the right-hand and left-hand side of the sunbed.
In some units, there are weights fi xed within the canopy section. Af-
ter the canopy drive has been replaced, the number of weights may
need adjusting. Changes, however, are required only if it becomes evi-
dent during operation of the unit that the canopy has become har-
der to open than previously (meaning that weight has to be removed)
or that the canopy does not completely close any more (meaning that
weight has to be added). The exact weight has to be determined indivi-
dually. In order to check for the canopy weights, proceed as follows:
Remove the two upper lateral parts (see section 1 1. and
2 in the chapter “Replacement” further down).
Lift the canopy cover. The weights (steel bars at 500 g each) are located
in the middle of the front area.
1.
2.

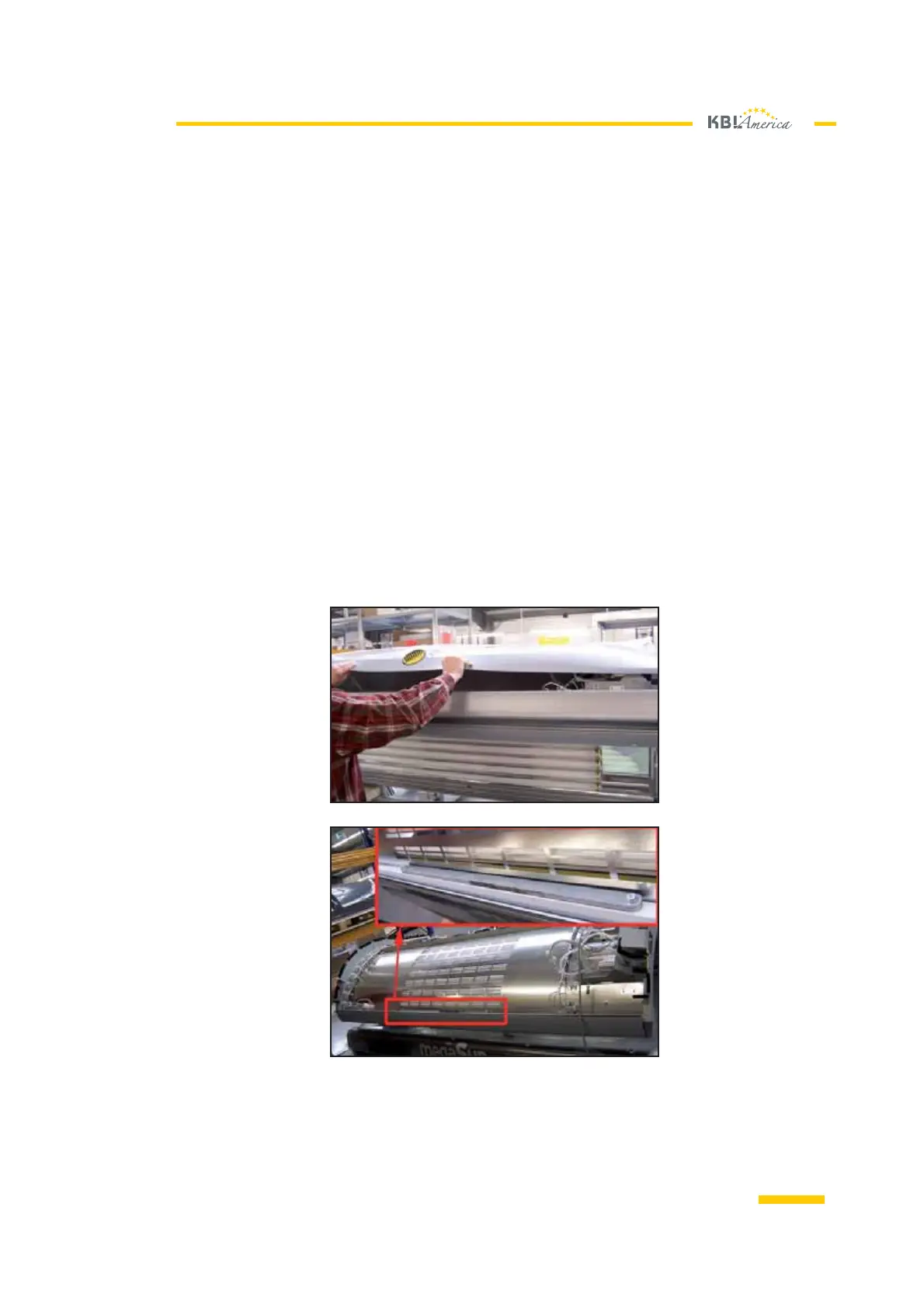

Checking for
canopy weights
Checking for
canopy weights
