KEB COMBIVERT R6-N User Manual

Page 3.7 - 6 COMBIVERT R6-N © KEB, 2015-07
Parameter sets
3.7.6 Parameter set selection

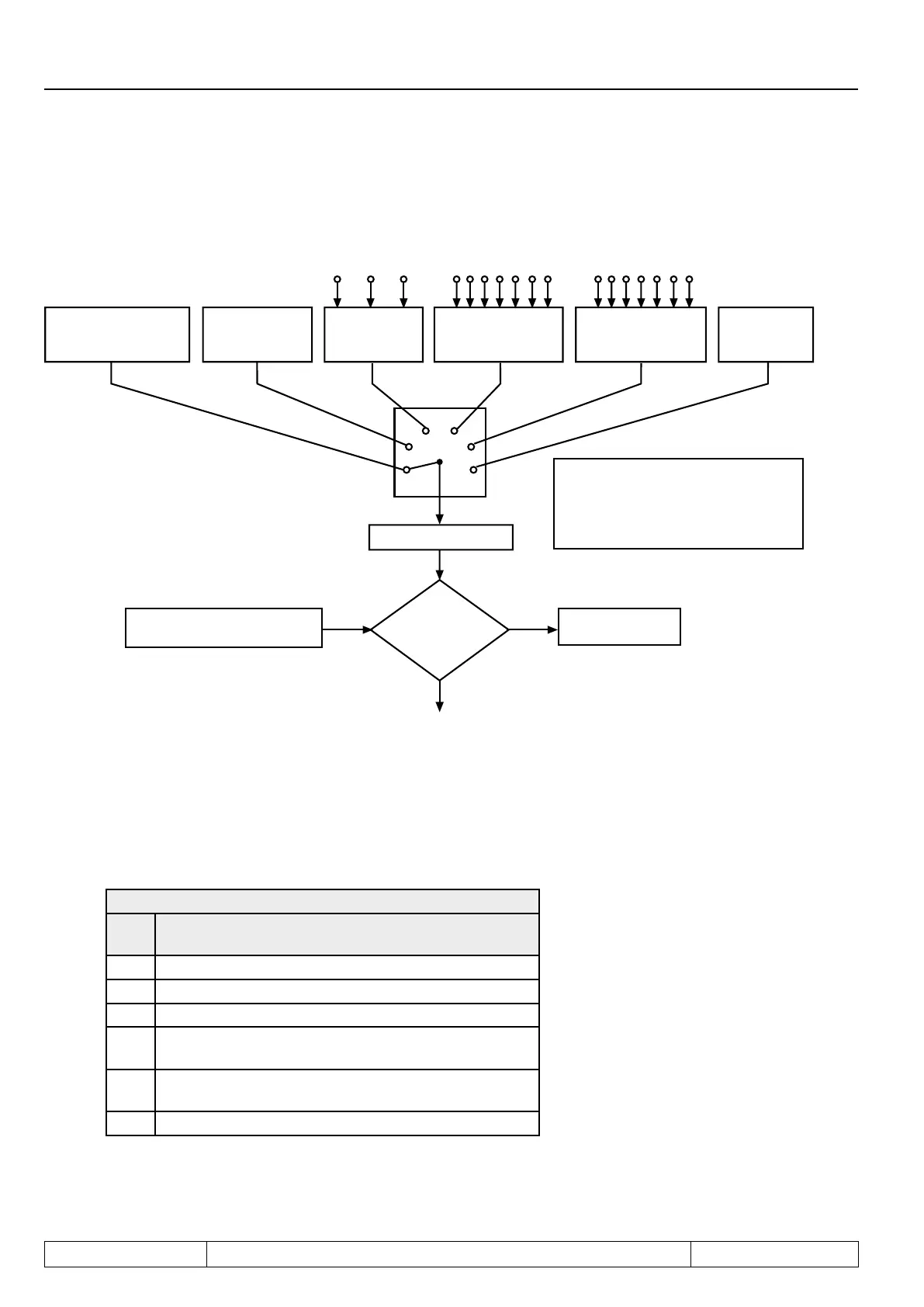

Picture 3.7.6 Principle of the parameter set selection
Fr.2
0
1
2
3
2
0
2
1
2
2
1234567 1234567
4
5
digital
set selection deacti-
vated
set 0 always active
Fr.04 with
Keyboard/bus
terminal strip
binary coded
Terminal strip
binary coded
ST>RST>...>ID
Terminal strip
binary coded
ID>IC>...>ST
SY.50 with
control word
(only bus)
Parameter set 0...7
Fr.03 Parameter set lock
Set 0...7 (Value 0...255)
Is
selected set
locked ?
yes
no
Actual Parameter set
Error message
E.SEt
Attention!The valence at Fr.02 =
2...4 is generally ID > IC > ...>ST.
The sequence mentioned above
refers to the priority.
Fr.02 Parameter set source
As seen in picture 3.7.6 Fr.02 determines, whether the parameter set selection is done or switched off via key-
board/bus (Fr.04) terminal strip or via control word (SY.43/ 50). The selection is activated by pressing "Enter".
Fr.02: Parameter set source
Val-
ue
Function
0 Set selection deactivated; set 0 always active
1 Set selection via keyboard/bus with Fr.4
2 Set selection binary-coded via terminal strip
3
Setselectioninput-codedviaterminalstripPriority:ST
>RST>R>F>I1>I2>I3>I4>IA>IB>IC>ID
4
Setselectioninput-codedviaterminalstripPriority:ID
>IC>IB>IA>I4>I3>I2>I1>R>F>RST>ST
5 Set source via control word SY.43 / 50
