Parameter sets
With these parameters the time is adjusted,
- with which the activation of a new set is delayed (Fr.05)
- with which the deactivation of an old set is delayed (Fr.06)
At set changeover, the switch-off time of the old set and the switch-on time of the new set are added.

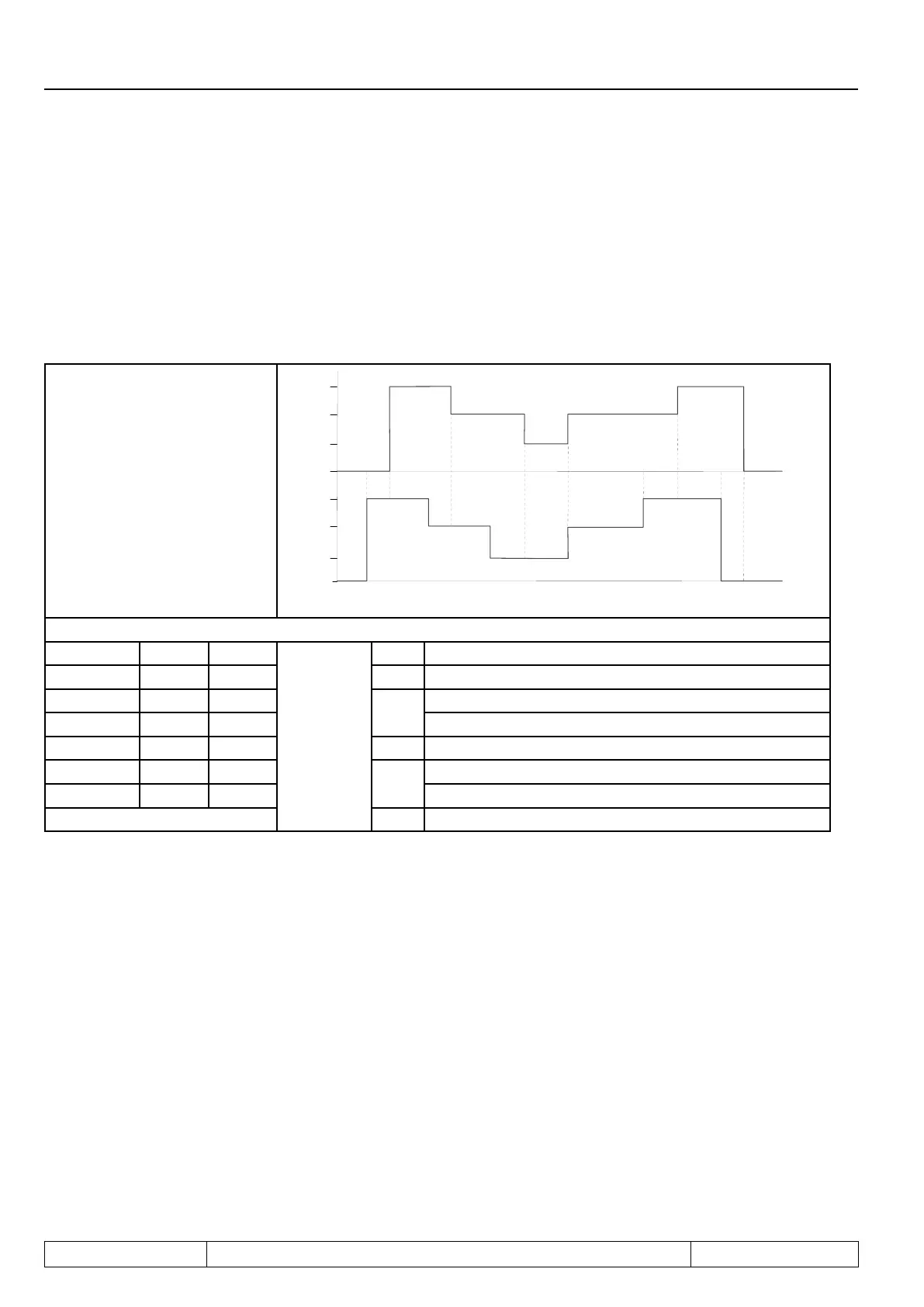

Figure 3.7.8 ON and OFF delay
Current set
Adjusted set
1
2
3
4
5
6
Set1
Set3
Set2
Set1
Set3
Set2
Set0
Set0
Example 1: ON delay for set 3 of 2s
on off 2: OFF delay for set 3 of 2s
Set Fr.05 Fr.06 3: OFF delay for set 2 of 1s +
0 0s 0s ON delay for set 1 of 2 s
1 2s 0s 4: immediate changeover as no delay is adjusted
2 0s 1s 5: OFF delay for set 2 of 1s +
3 2s 2s ON delay for set 3 of 2s
6: OFF delay for set 3 of 2s
