KEEWAY ATV250 - Power Flow Chart

36
From the engine：
：：
：
Piston(1)
Connecting rod(2)
Crankshaft(3)
Primary driven disk(12)
Pressure disk(7)
Clutch(8)
Intake shaft of gear box(4)
Idle shaft of gear box(5)
Transation shaft of gear box(6)
Idler pulley
Rear axle shaft

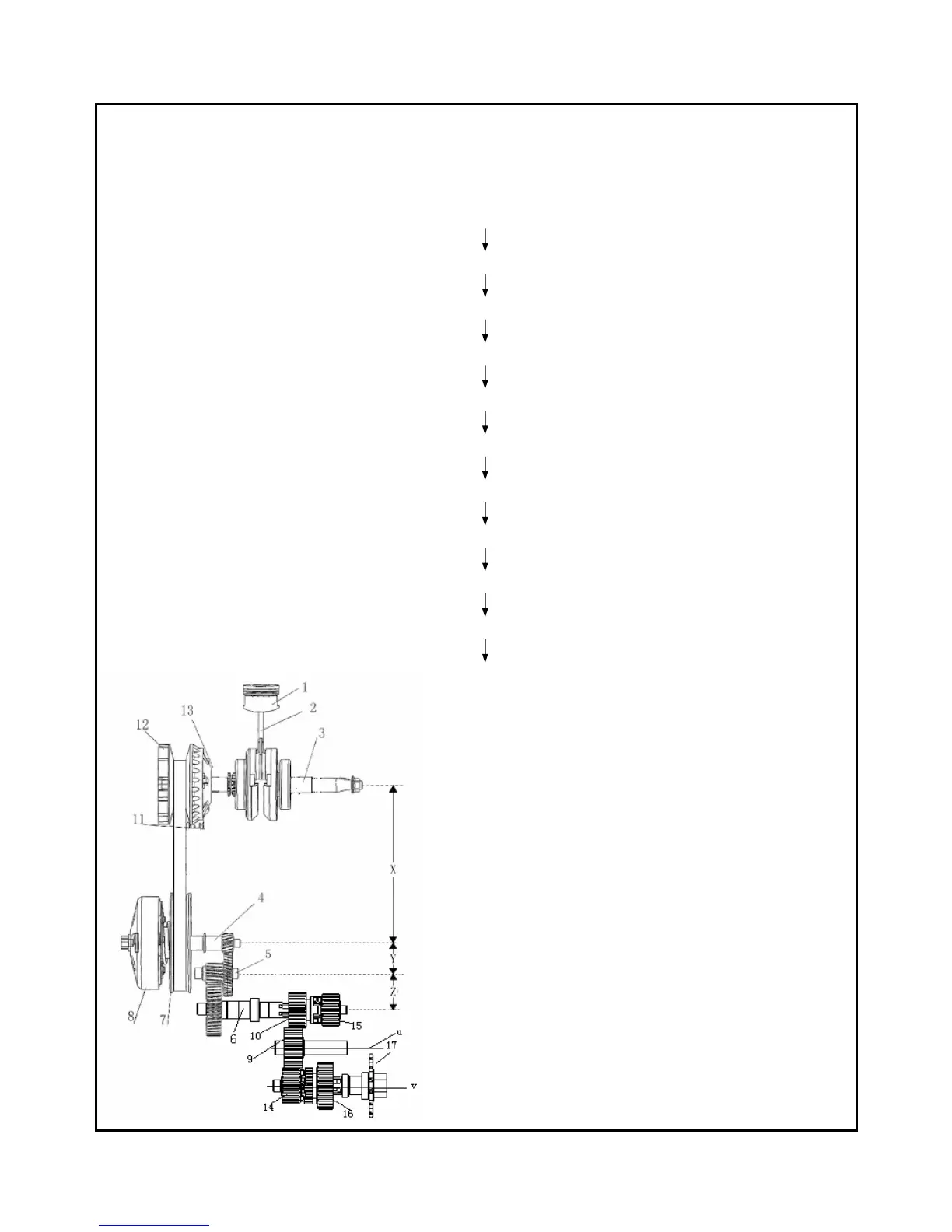

Power flow chart
X－Outmatic speed-down rate
Y－Junior speed-down rate（4015）
Z－Sub speed-down rate（37/16）
