65
M a g n e t o （
（（
（ A C G ）
））
）
Configuration：
：：
：
ATV’s magneto is made up by stator and rotor.
Type of stator’s loop: star model.

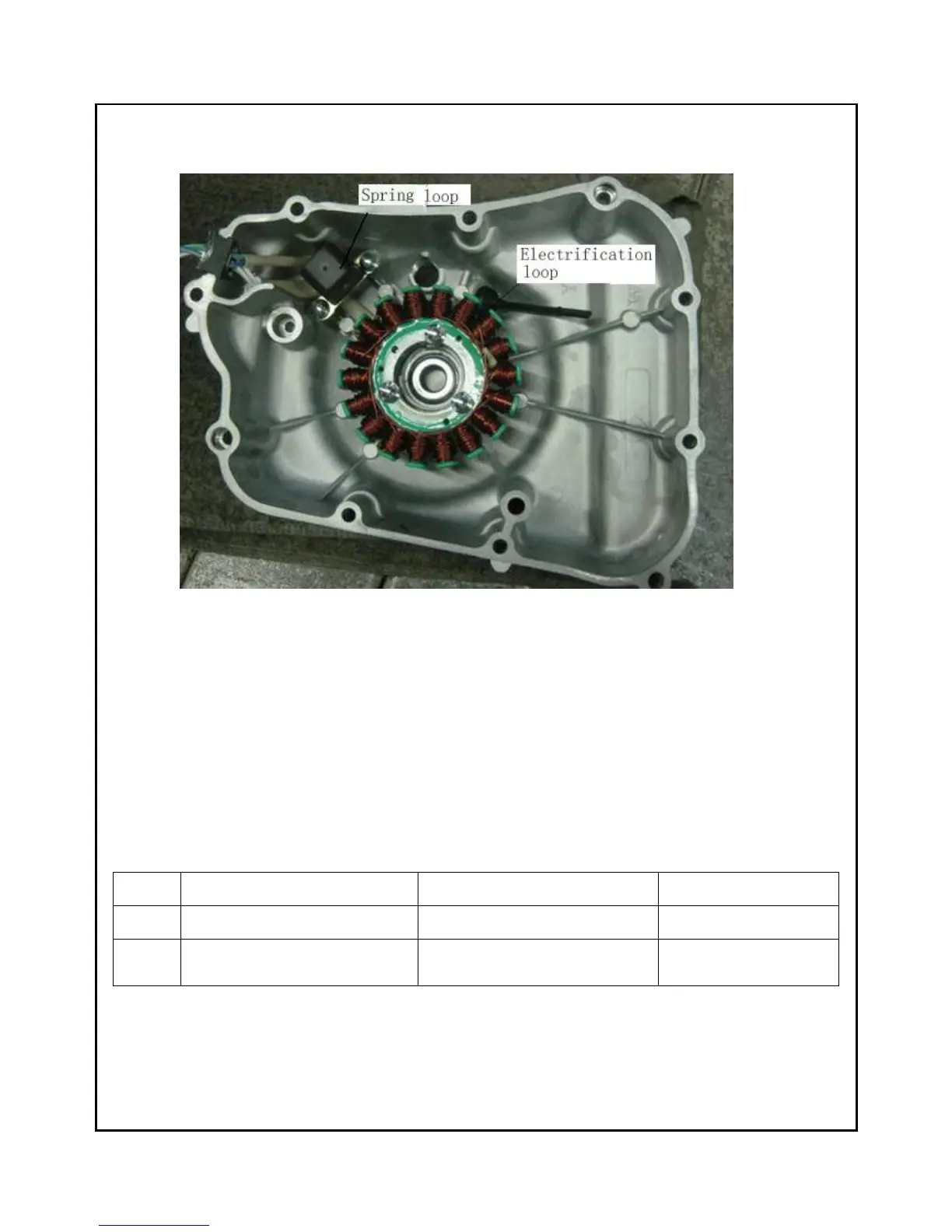

Assembly of stator ：
：：
：
Stator with 12loops: 12 loops are for lighting and electrification.
Spring loop and stator are formed to the cover of right crankcase.
The spring the clectrification loops of the C.D.I are used to ignition.
The electricity produced by lighting loop is used to light and electricity produced by electricfication loop is used to
electricficate, both of them pass through the rectifier.
The table shows the color code of magneto line and resistances of all kinds loops down blow：
NO. Type of loop Resistances Color of line
2. Spring loop 20℃，200±20Ω Blue white/green white
3.
Lighting
Electrification loop of battery
<2Ω
<2Ω
blue
blue
Instruction: All the measures of resistance are refer to the line connecting to the ground (black)
● Oil groove type magneto comp
● Stator comp without (capacitor) fixing stick is assembled directly to the left cover of crankcase
● The structure of the stator overlap has two fixing holes.
