Keithley 2002 Calibration Manual

Calibration Programs
B-4

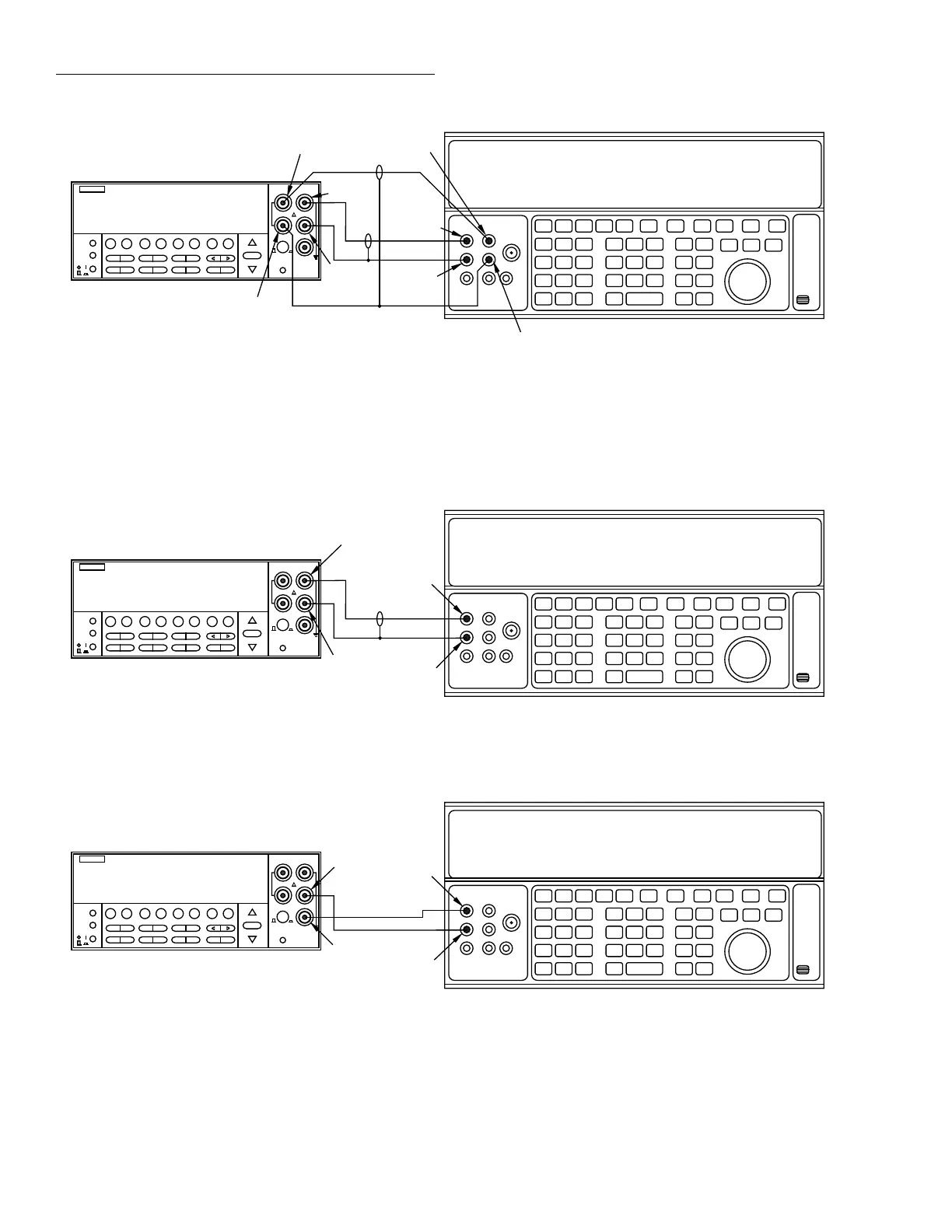

Figure B-2
Connections for comprehensive calibration
2002 MULTIMETER
F
Input HI
Output HI
Input
LO
Output
LO
Model 2002
5700A Calibrator
Note : Use shielded cables to minimize noise.
Enable or disable calibrator external
sense as indicated in procedure.
Sense HI
Sense LO
Sense LO
Sense HI
Figure B-3
Calibrator voltage connections
2002 MULTIMETER
Input HI
Output HI
Input
LO
Output
LO
Model 2002
5700A Calibrator
Figure B-4
Calibrator current connections
2002 MULTIMETER
Output HI
Input
LO
Output
LO
Model 2002
5700A Calibrator
Amps
Note: Be sure calibrator is set
for normal current output

Keithley 2002 Specifications

General

Resolution	8.5 digits
DC Voltage Accuracy	±0.0006%
Maximum DC Voltage	1000 V
Maximum AC Voltage	750 V
Maximum DC Current	3 A
Maximum AC Current	3 A
Connectivity	GPIB, RS-232
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	10 Ω to 1 GΩ
Model	2002
Category	Multimeter
Interface	GPIB, RS-232
AC Current Accuracy	±0.1%
Frequency Range	0.1Hz to 300kHz
Display	VFD
Type	Digital
Power Supply	100-240V AC, 50/60Hz
Current Range (DC)	100 μA to 3 A
Current Accuracy (DC)	±0.01%
Current Range (AC)	100 μA to 3 A
Current Accuracy (AC)	±0.1%
DC Current Range	100 μA to 3 A
AC Current Range	100 μA to 3 A
