Keithley 2110 Calibration Manual

Section
1: Calibrating and adjusting the Model 2110 Model 2110 5½ Digit Multimeter
Calibration Manual
1-2 2110-905-01 Rev. C / August 2013

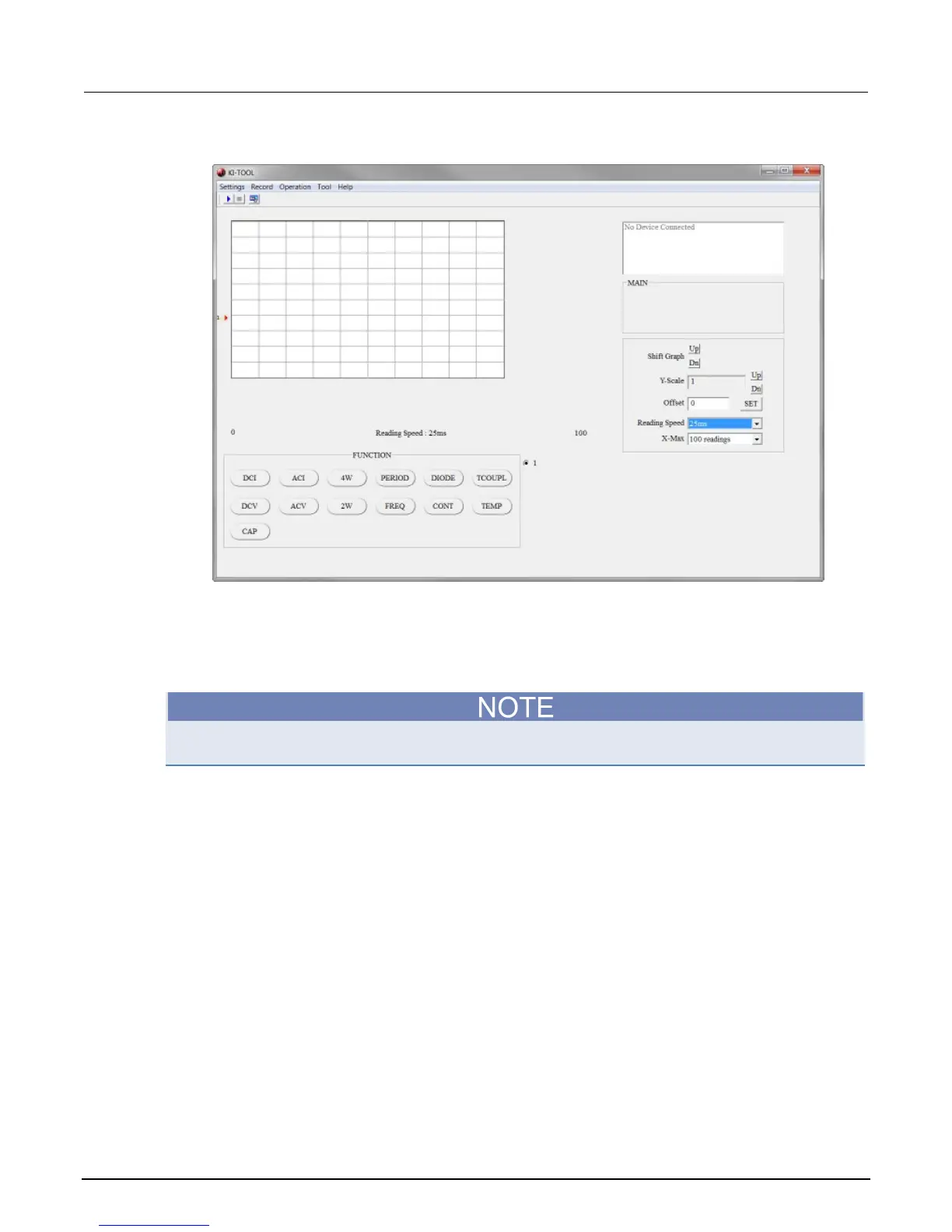

Figure 1: Model 2110 KI-TOOL software
5. The procedure consists of connecting the Fluke 5700A/5725A and 5520A/5522A output to the
Model 2110 front panel input, setting up appropriate ranges, and performing calibration by
sending specific SCPI commands. These commands are entered into the Send String field
followed by clicking the Write button. To access the command control window, click Tool >
Command Control.
The figure below shows the Command Control window. Ensure that the correct model number is
selected before sending any SCPI commands.

Keithley 2110 Specifications

General

Model	2110
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Continuity	Yes
Diode Test	Yes
Category	Digital Multimeter
Display	5.5 digit
DC Current Range	100 µA to 3 A
AC Current Range	100 µA to 3 A
Resistance Range	100 MΩ
Frequency Range	3 Hz to 300 kHz
Frequency Accuracy	0.01% + 1 count
Capacitance Range	1 nF to 100 µF
Capacitance Accuracy	1% + 5 counts
Connectivity	USB, GPIB (optional)
Dimensions	88 mm
Power Supply	100 V to 240 V AC, 50/60 Hz
DC Voltage Accuracy	±0.012% + 2 counts
