Series 3700A System Switch/Multimeter Reference Manual Section 3: Instrument description
3700AS-901-01 Rev. D/June 2018 3-9
Main menu
The main menu structure is summarized in the following figure and table. For other menu items, see
Configuration menus (on page 3-11).

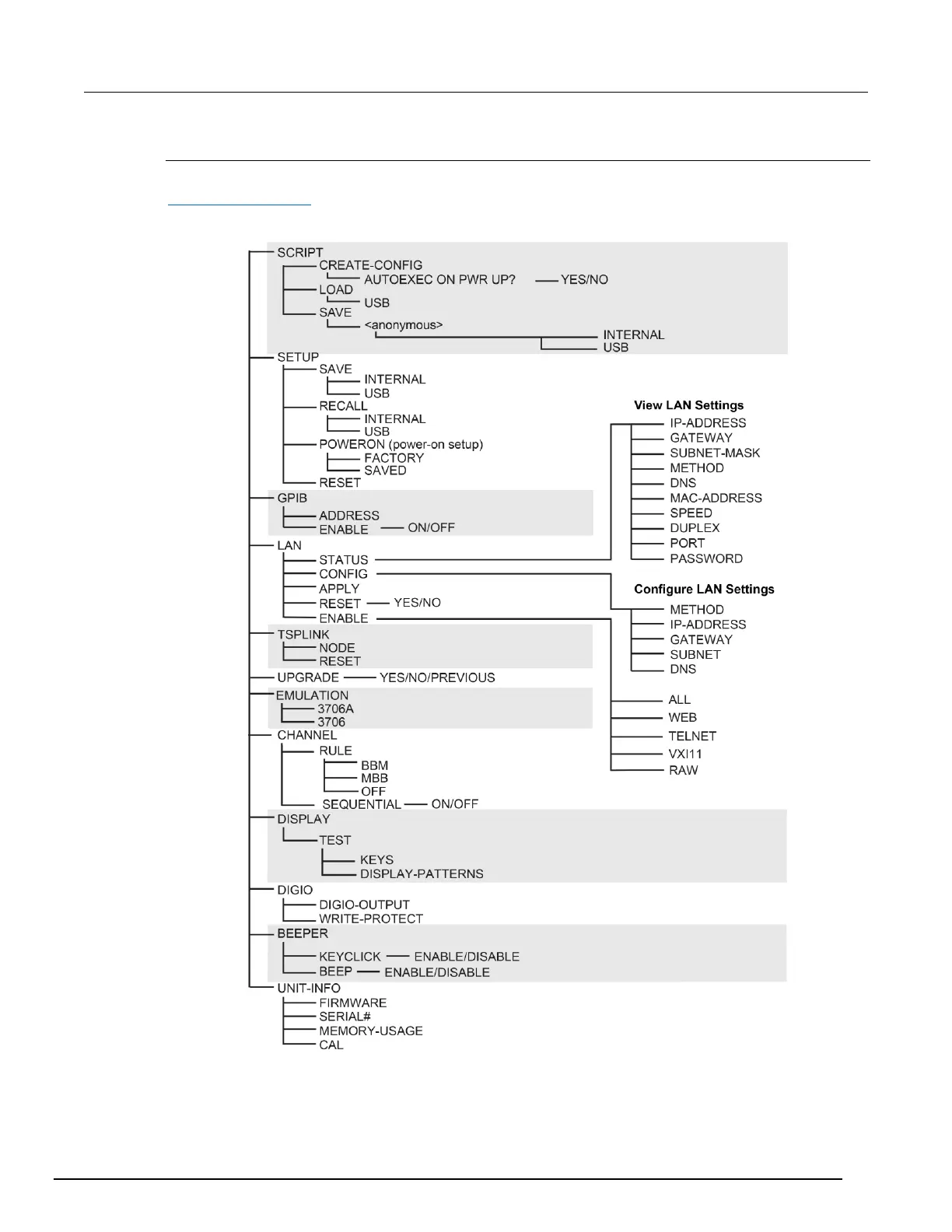

Figure 23: Main menu tree
