Section 3: Instrument description Series 3700A System Switch/Multimeter Reference Manual
3-38 3700AS-901-01 Rev. D/June 2018

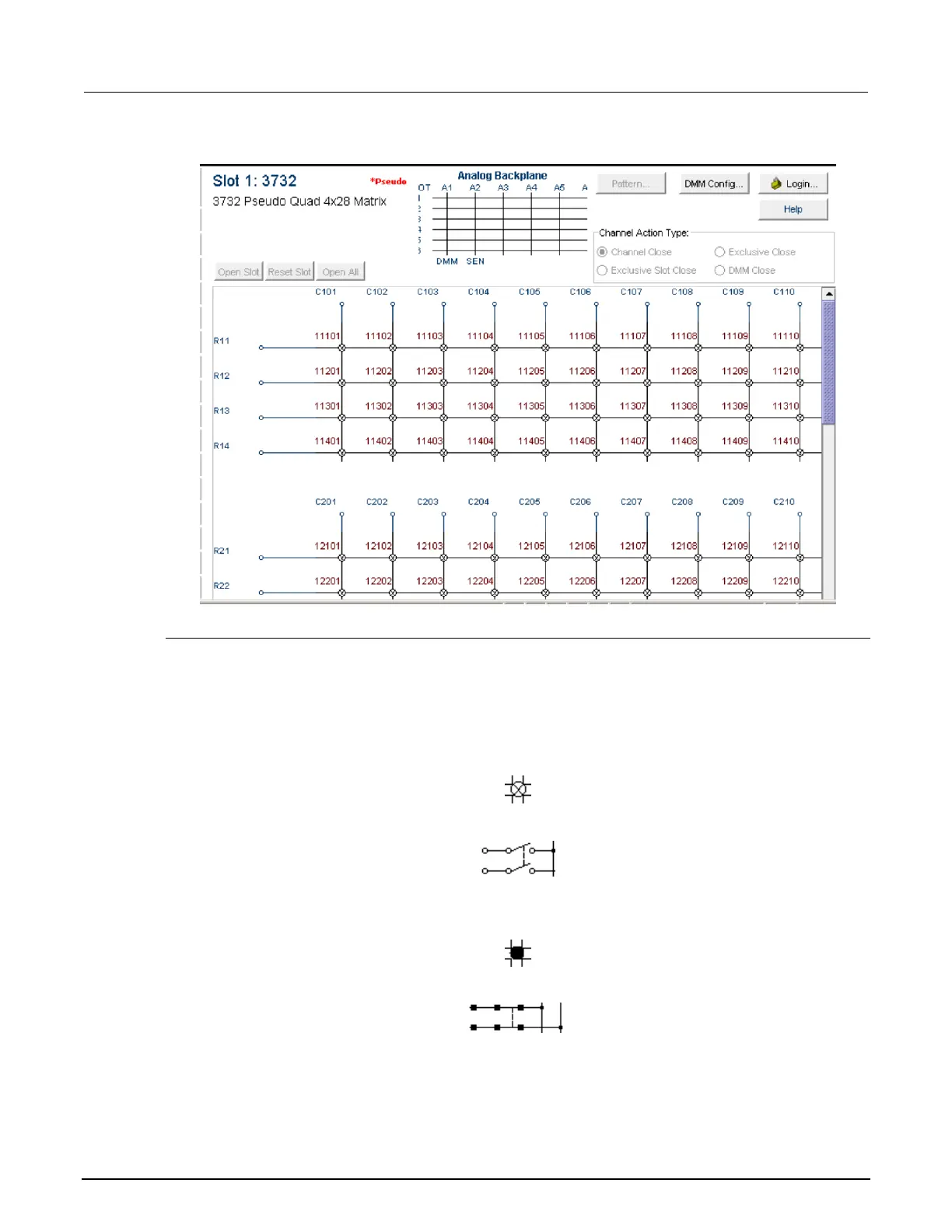

Figure 38: Series 3700A web interface cards page
Open and close slots from the card pages
You can open and close channels from the card pages in several ways.
The simplest method is to click a connection. The channel changes state to open or closed. When the
channel is open, the connection will look similar to one of the following graphics (the actual item on
the web interface depends on the installed card):
Figure 39: Web interface open channel
Figure 40: Web interface relay open
When the channel is closed, the connection will look similar to one of the following:
Figure 41: Web interface closed channel
Figure 42: Web interface relay closed
