Al, (Fc, Mc, Ss, Fe)

U-groove

1.0 red W001067 W001068

1.2 orange W001069 W001070

1.6 yellow W001071 W001072

Wire feed rolls, metal

ø mm lower upper

Fe, Ss,

(Al, Mc, Fc)

V-groove

0.8 – 0.9 W006074 W006075

1.0 W006076 W006077

1.2 W004754 W004753

1.4 W006078 W006079

Fc, Mc, (Fe)

V-groove, knurled

1.0 W006080 W006081

1.2 W006082 W006083

1.4 – 1.6 W006084 W006085

2.0 W006086 W006087

Al, (Fc, Mc, Ss, Fe)

U-groove

1.0 W006088 W006089

1.2 W006090 W006091

1.6 W006092 W006093

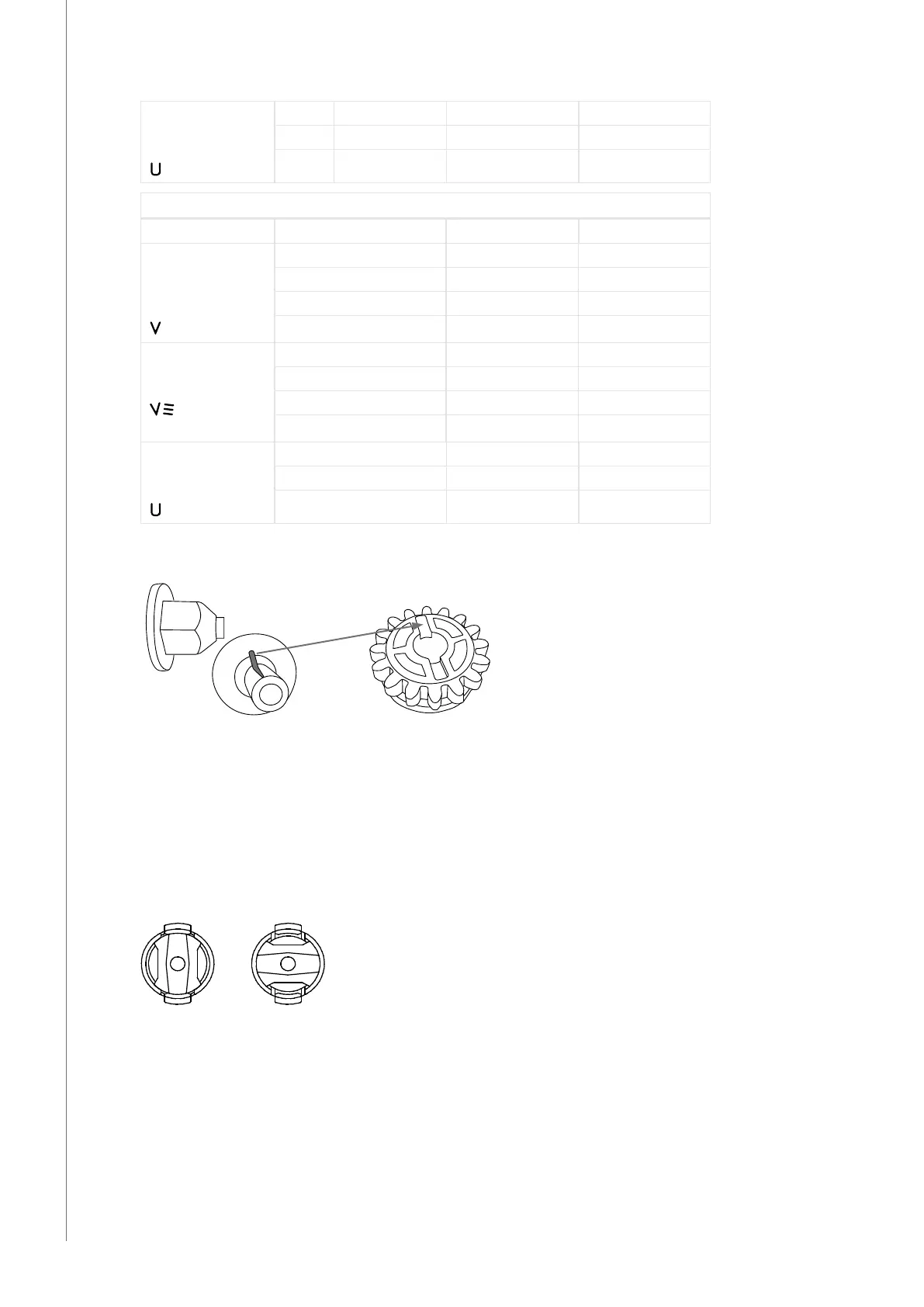

NOTE! Mount the lower feed roll, ensuring that the pin on the shaft ts in the cut on the feed roll.

2.8 Installation of welding gun

Make sure the gun wire conduit and the contact tip match the manufacturer’s

recommendations for the type and diameter of wire you use. Too small a conduit may

overload the wire feed device and impede the wire feeding. Tighten the gun’s quick connector

to eliminate voltage loss. A loose joint will heat up the gun and wire heater.

NOTE! Never use defected gun.

2.9 Mounting and locking of wire reel

LOCKED OPEN

• Release locking nails of wire reel hub by turning locking knob a quarter round.

• Mount the reel at its place. Note rotating direction of reel!

• Lock the reel with locking knob, locking nails of hub remain to outside position and will

lock the reel.

Kempact Pulse 3000, KempactCool 10
