Kenmore 10 User Manual

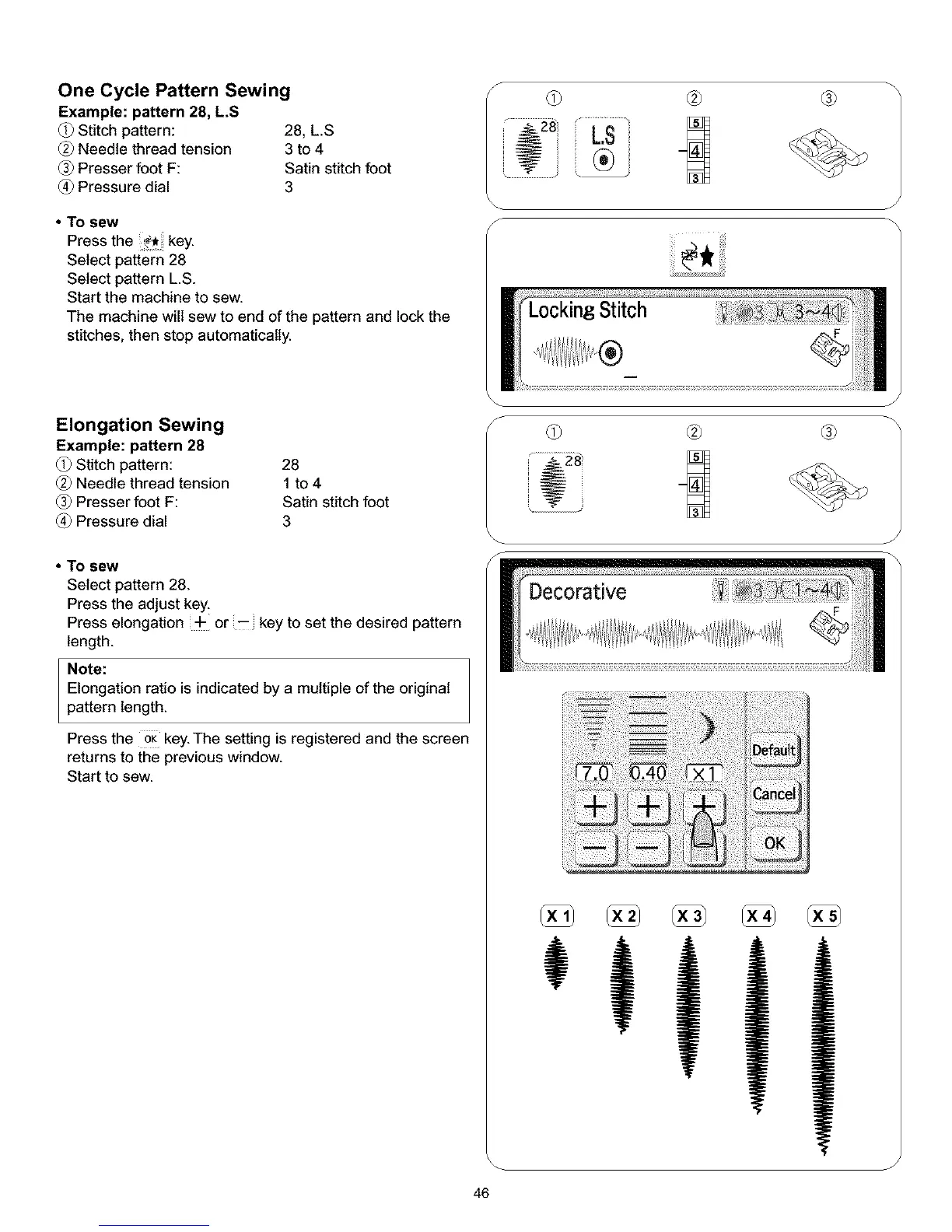

One Cycle Pattern Sewing
Example: pattern 28, LS
(_ Stitch pattern: 28, L.S
Needle thread tension 3 to 4
Presser foot F: Satin stitch foot
Pressure dial 3
• To sew
Press the _* key.
Select pattern 28
Select pattern L.S.
Start the machine to sew.
The machine will sew to end of the pattern and lock the
stitches, then stop automatically.
S
M_j
f-
I LS
E
i®
®
Elongation Sewing
Example: pattern 28
Stitch pattern: 28
Needle thread tension 1 to 4
Presser foot F: Satin stitch foot
Pressure dial 3
• To sew
Select pattern 28.
Press the adjust key.
Press elongation 4- or -- key to set the desired pattern
length.
Note:
Elongation ratio is indicated by a multiple of the original
pattern length.
Press the oKkey.The setting is registered and the screen
returns to the previous window.
Start to sew.
f
J
®
J
46

Kenmore 10 Specifications

General

Brand	Kenmore
Model	10
Category	Sewing Machine
Language	English
