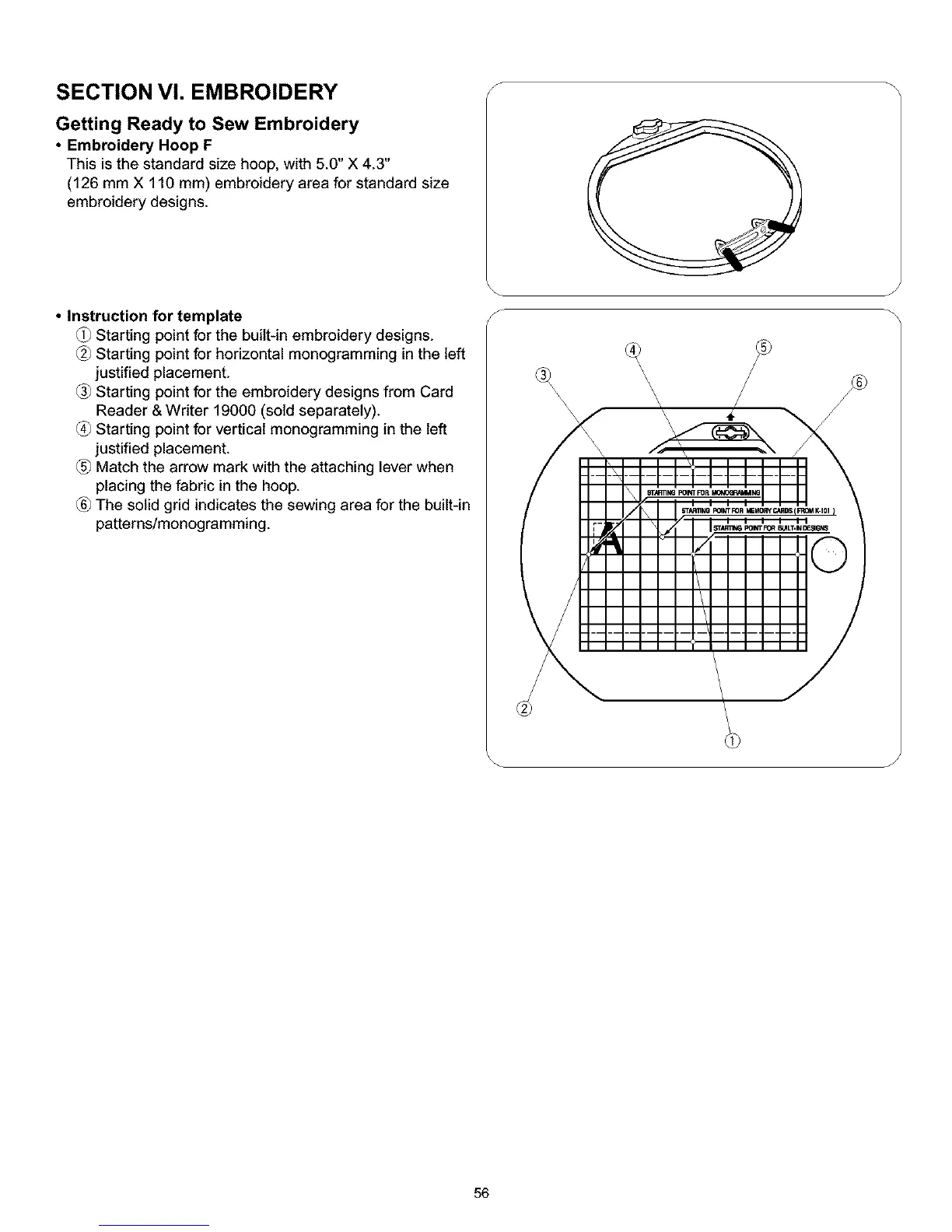

SECTION VI. EMBROIDERY
Getting Ready to Sew Embroidery
• Embroidery Hoop F
This is the standard size hoop, with 5.0" X 4.3"
(126 mm X 110 mm) embroidery area for standard size
embroidery designs.
• Instruction for template
Starting point for the built-in embroidery designs.
Starting point for horizontal monogramming in the left
justified placement.
Starting point for the embroidery designs from Card
Reader & Writer 19000 (sold separately).
Starting point for vertical monogramming in the left
justified placement.
Match the arrow mark with the attaching lever when
placing the fabric in the hoop.
The solid grid indicates the sewing area for the built-in
patterns/monogramming.
S
\
\ \
\ \
\
\
\ \
\
J
J
56
