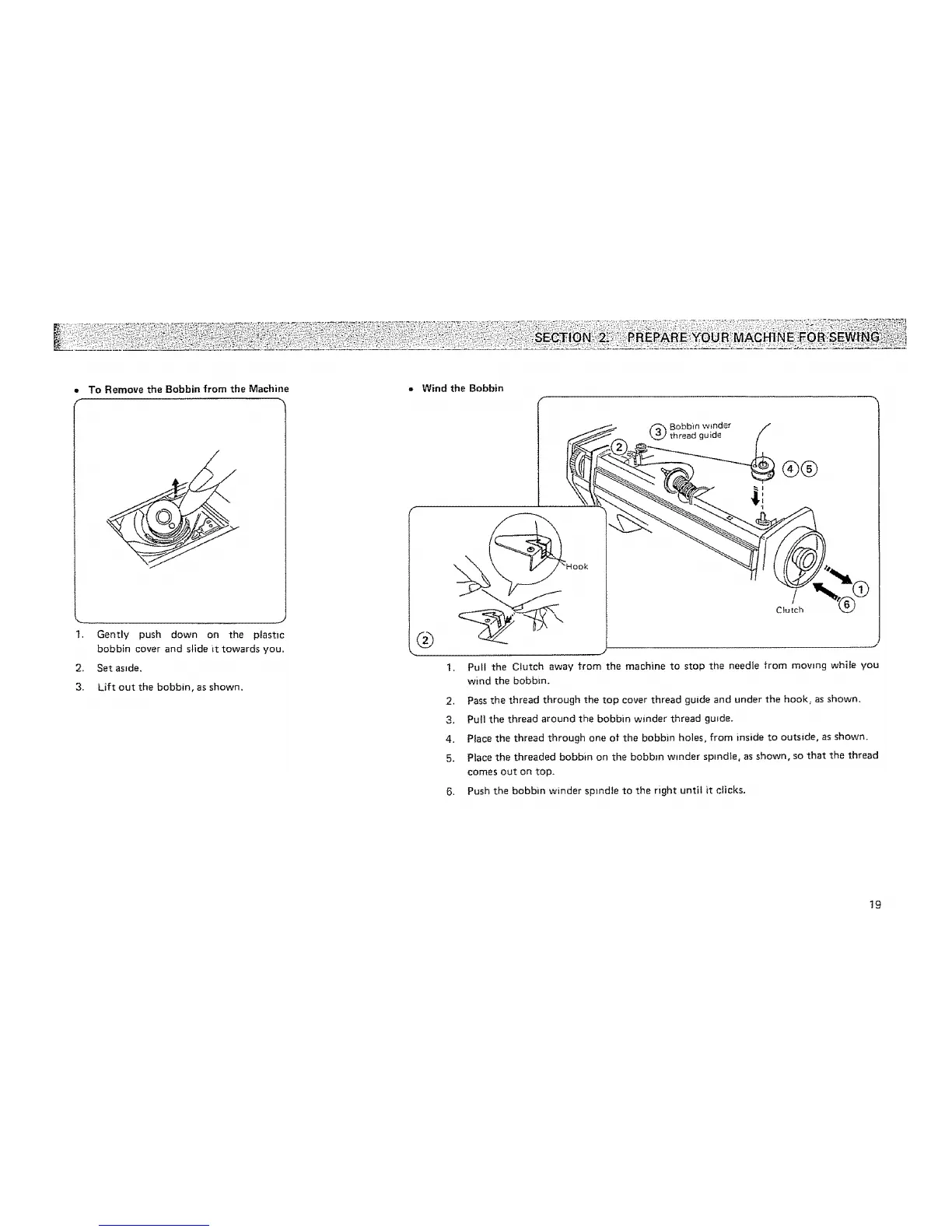

= To Remove the Bobbin from the Machine
/-
1. Gently push down on the plastic
bobbin cover and slide it towards you.
2. Set aside,
3. Lift out the bobbin, as shown.
®
. Wind the Bobbin
...... J
1. Pull the Clutch away from the machine to stop the needle from mowng while you
wind the bobbin.
2. Pass the thread through the top cover thread guide and under the hook, as shown.
3. Pull the thread around the bobbin winder thread guide.
4. Pface the thread through one of the bobbin holes, from inside to outside, as shown.
5. Place the threaded bobbin on the bobbin winder spindle, as shown, so that the thread
comes out on top.
6, Push the bobbin winder spindle to the right until it clicks.
19
