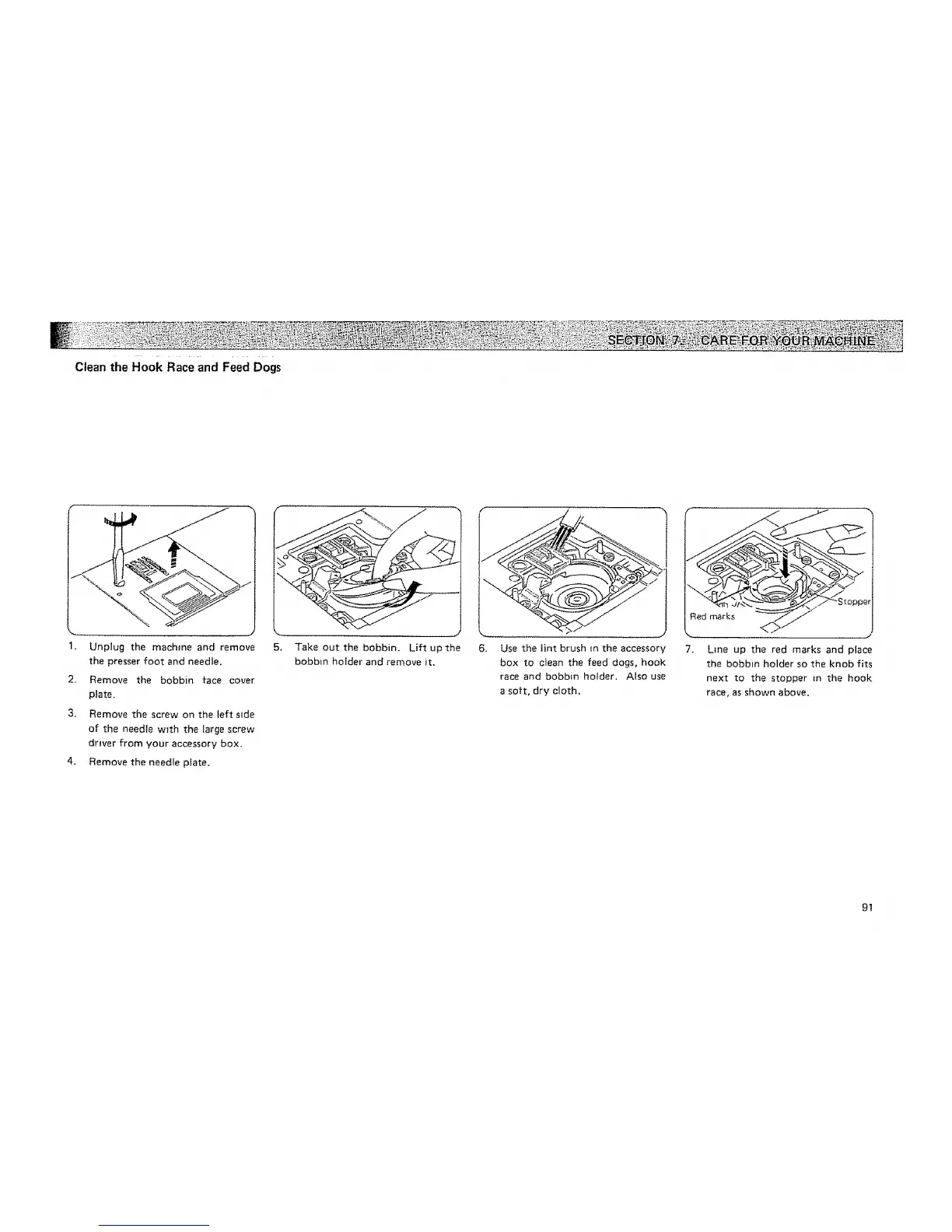

Clean the Hook Race and Feed Dogs
1. Unplug the machine and remove
the presser foot and needle.
2. Remove the bobbin face cover
plate,
3. Remove the screw on the left side
of the needle w_th the large screw
driver from your accessory box.
4. Remove the needle pSate.
\
5. Take out the bobbin. Lift up the
bobbin holder and remove it.
6_
Use the lint brush in the accessory
box to clean the feed dogs, hook
race and bobbin holder. Also use
a soft, dry cloth.
Red marks
.... J
7. Line up the red marks and place
the bobbin holder so the knob fits
next to the stopper m the hook
race, as shown above.
91
