Kenmore 19502 - Page 6

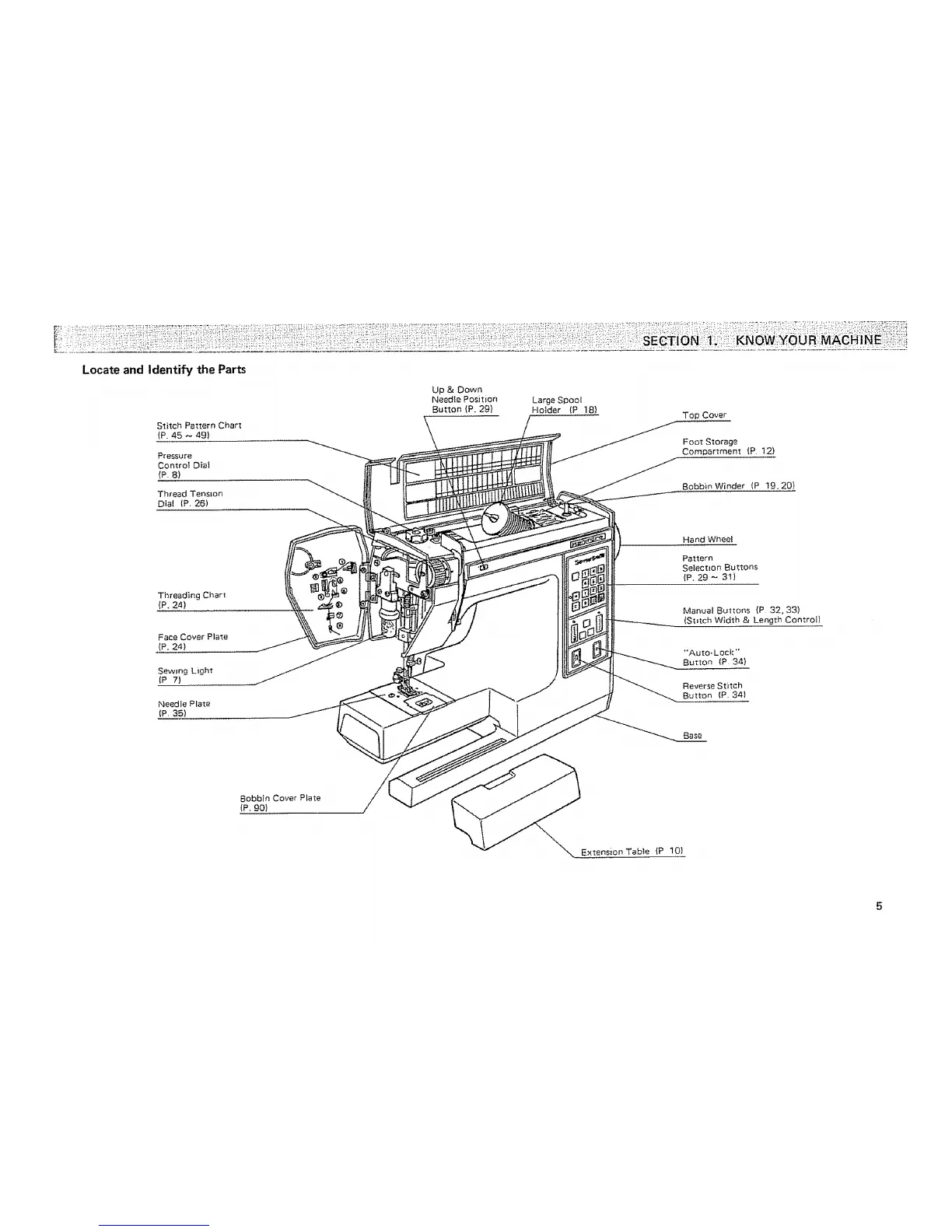

Locate and Identify the Parts
Stitch Pattern Chart
(P. 45 _ 49)
Pressure
Control Diai
{P 8)
Thread Tensmn
Dial (P, 26)
Threading Chart
(P. 24)
Face Cover Plate
(P, 24)
Sewing Light
(P 7)
Needle Plate
(P. 35}
Bobbin Cover Plate
(P. 90)
Up & Down
Needle Position
Button (P. 29)
Large SPool
Holder (P 1B)
Top Cover
Foot Storage
Compartment (P t2)
Winder (P 19,20}
Hand Wheel
Pattern
Select_on Buttons
(P. 29 _ 31)
Manual Buttons (P 32, 33}
(Stitch Width & Length Contro_)
"Auto-Lock"
Button tP 34}
Reverse Stitch
Button iP 34)
Base
n Table {P 10}
