KENT SP500 - Leveling the Screen

01/28/02
Page 8.3
Setup
Kent Pad Printer Canada Inc.

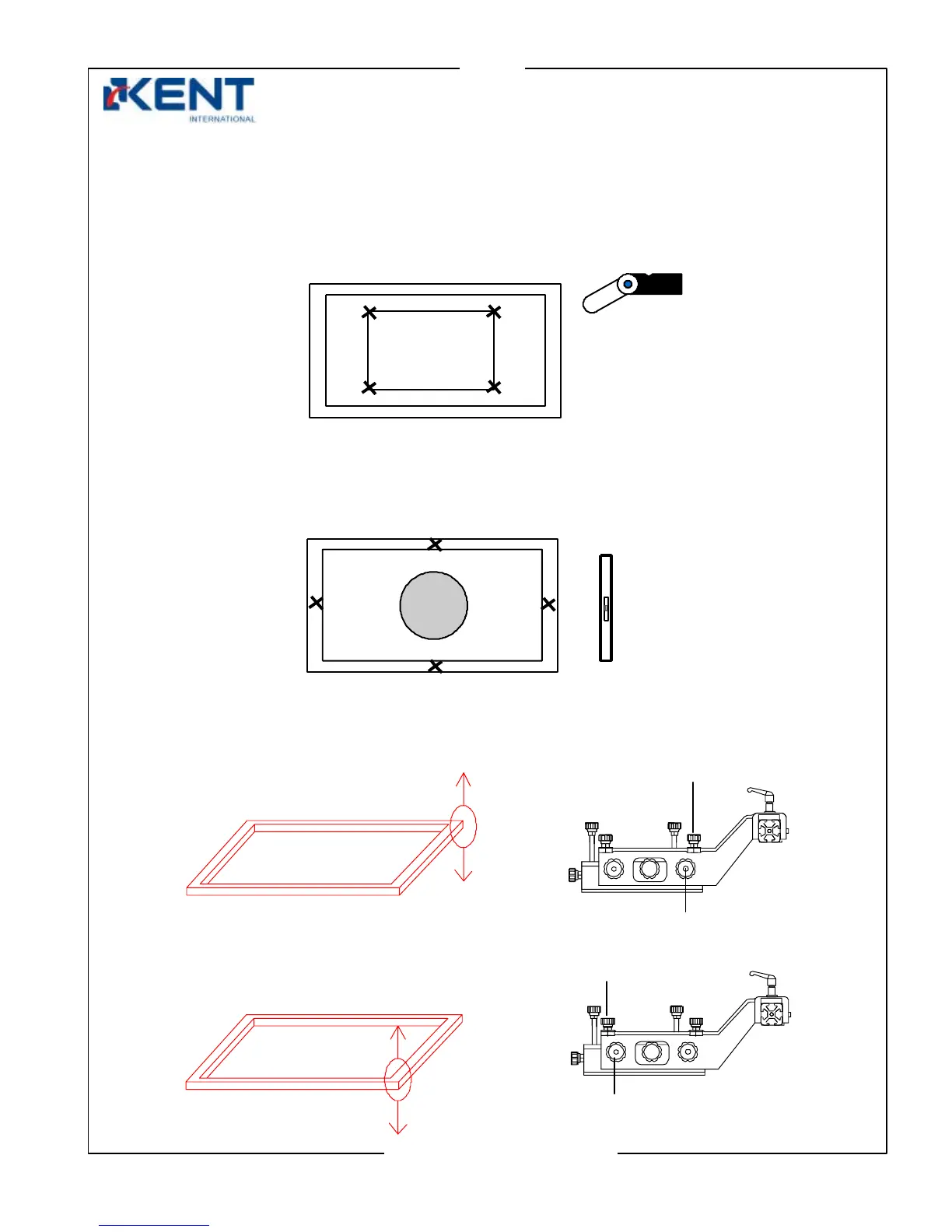

Leveling the screen
For flat print setup, use a fillet gauge to check if screen is level as shown:
For round print setup, use a level gauge to check if screen is level as shown:
To level one corner of screen
Object
Screen
Object
Screen
Insert fillet gauge between
screen and object as
indicated by the cross marks.
Size of gauge will depend on
clearance left in step 0ne.
2mm gauge should be used.
Place level gauge on top of
screen as indicated by the
cross marks.
Loosen locking screw
Level by knob
Loosen locking screw
Level by knob
