Kenwood DMX8520DABS - Connecting the camera

Connection/Installation
102

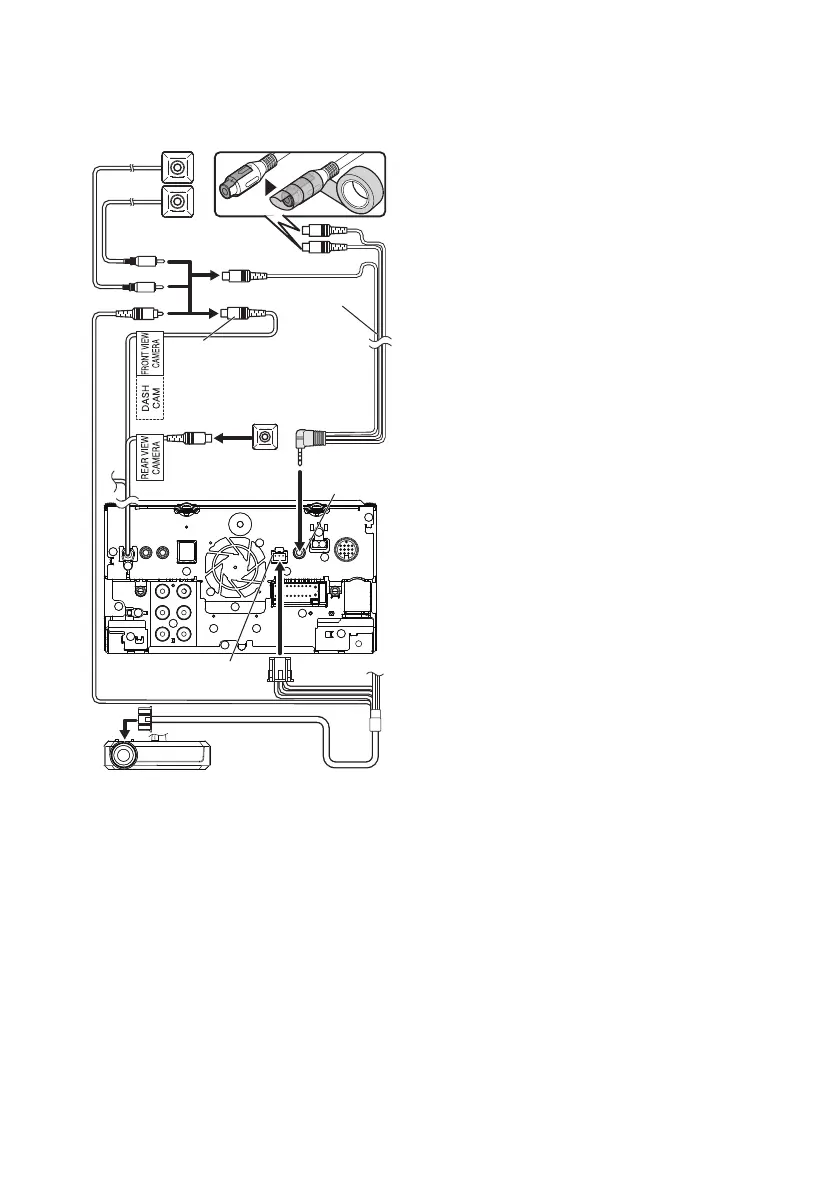

Ñ Connecting the camera
DRV-N520
[1]
Front view camera/Dashboard
camera input (Yellow)
[8]
[4]
[3]
Front view camera
[5] [7]
Left side view camera and Right side view
camera
[2]
AV-IN input
Rear view camera
input (Yellow)
Dashboard camera
interface
[9]
Rear view camera
[5] [6]
VIDEO input
(Yellow)
CA-C3AV
[1]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
more information, see Camera Assignment
Settings (P.65).
[4]
Insulate audio input terminals of a CA-C3AV
(optional accessory) when connecting to the
Camera.
[5]
CMOS-3xx series (optional accessory) or
commercially available camera.
[6]
For HD video, an HD camera is also used
as Rear view camera. (DDX9020DABS /
DDX920WDABS only)
[7]
For HD video, an HD camera is also used
as Front view camera. (DDX9020DABS /
DDX920WDABS only)
[8]
For DDX8020S / DDX820WS / DMX8020S /
DMX820WS, Front view camera input (Yellow)
[9]
Except DDX8020S / DDX820WS / DMX8020S /
DMX820WS
