FIXED STATION INSTALLATION

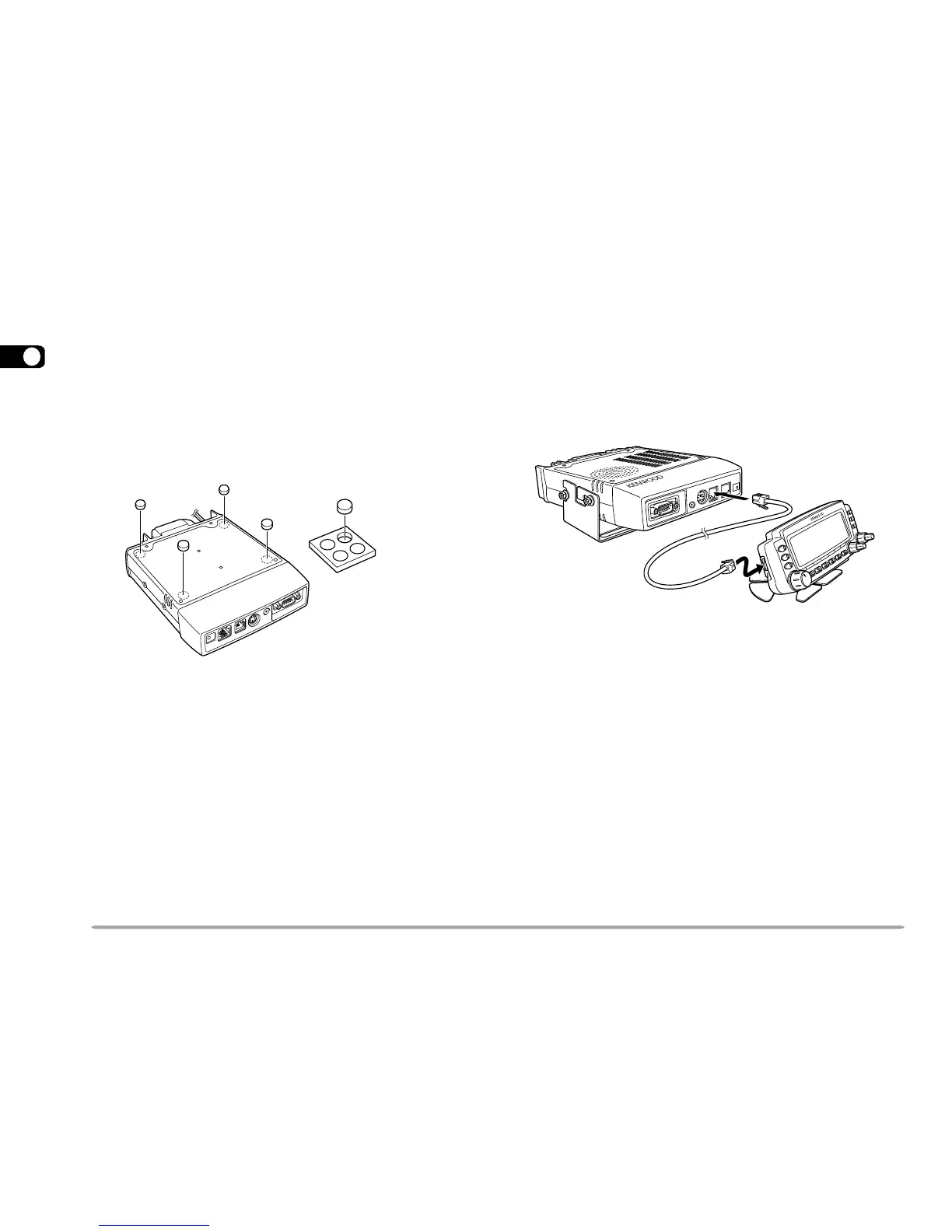

When placing the main unit on such a surface as a desk
top, use the supplied cushions to prevent the surface
from being scratched. Attach the 4 pieces of cushions to
the specified positions on the rear of the main unit.
Note: Attach all the cushions to the flat surface on the main unit;
otherwise the installation will be unstable or the cushions may come off
easily.
MODULAR PLUG CABLE CONNECTION
Use the supplied modular plug cable to connect the front
panel to the main unit. Connect the 4-pin plug to the
front panel and 6-pin plug to the main unit.
Note: The 6-pin plug is wider than the 4-pin plug.
4-pin plug
6-pin plug
