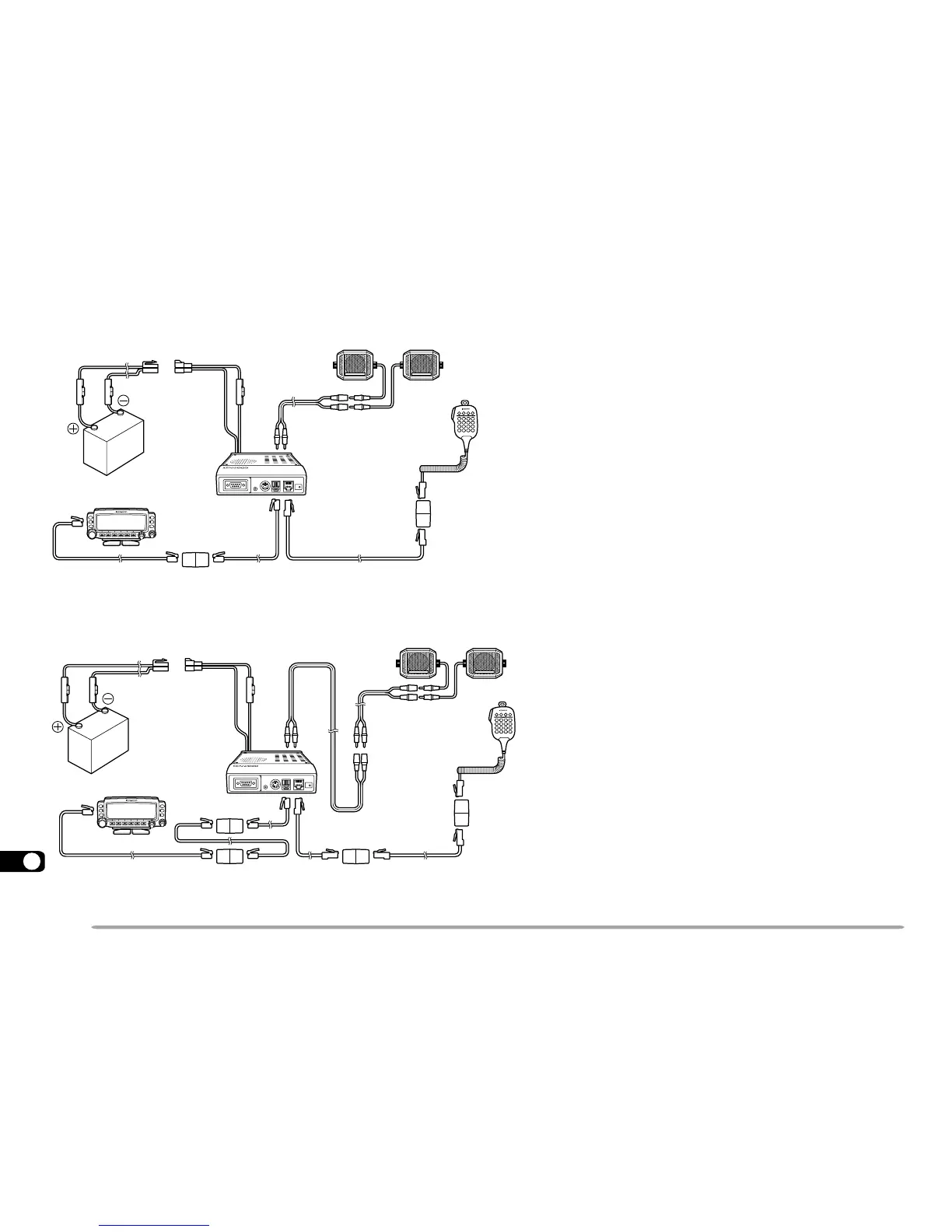

Connections Using One Set of PG-4X Kit
Connections Using Two Sets of PG-4X Kits
(4 m)(4 m)
(4 m)
(6 m)
For 6 pins
For 8 pins
Note: Always connect the 4-pin plug on the modular plug cable supplied
with the transceiver to the front panel.
For 6 pins
For 6 pins
For 8 pins
For 8 pins
