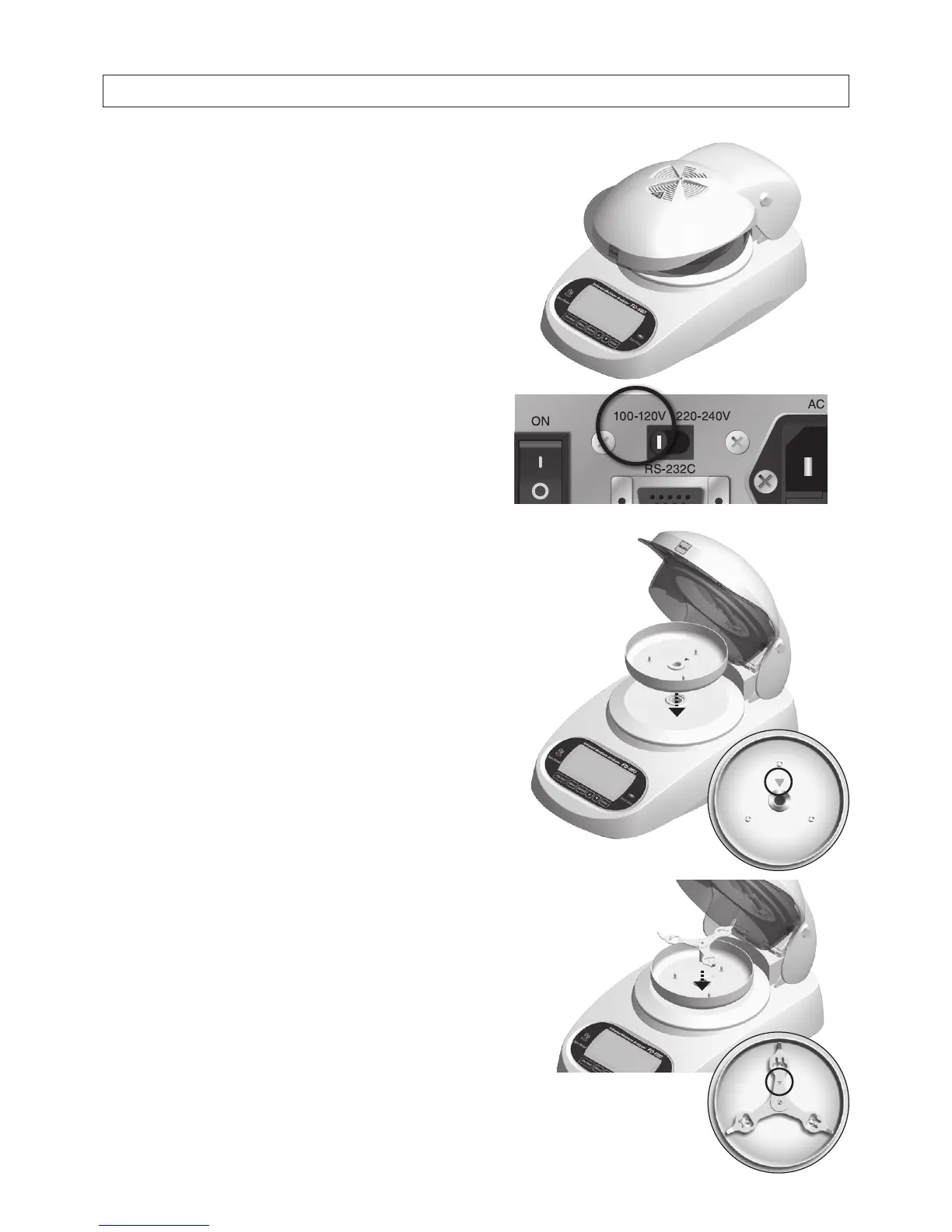

5. Assembly and Installation
①
Opening the package
Open the package and check to make sure all listed
items are included. (see page 9)
②
Installing the main unit
Place the unit on a flat and stable workbench that is
insensitive to external vibration, wind, and the like.
③
Checking the power supply voltage
Check to see whether the power conversion switch
on the rear panel of the main unit is set to the working
voltage side.
* It is set to the (100-120 volts) side in Japan and the US.
If the switch is not set to the working voltage side, the
error (Er701) is displayed when the power is turned on.
④
Attaching the wind shield
Open the heater lid.
Place the wind shield so that the
▽
mark on the shield
points downward.
When the wind shield is appropriately placed, no
backlash or rotation may be created.
* Be careful not to apply excessive force on the center
shaft when attaching the wind shield. Failure to observe
this may damage the instrument.
⑤
Placing the sample dish stand
Engage the sample dish stand (trivet) with the wind
shield so that the
△
mark on the stand is aligned with
the
▽
mark on the shield. When the wind shield is
appropriately placed, no backlash or rotation may be
created.
* Be careful not to apply excessive force on the center
shaft when placing the sample dish stand. Failure to
observe this may damage the instrument.
