Kett FD-660 - Computer Output Format

33
● Baud rate setting
1

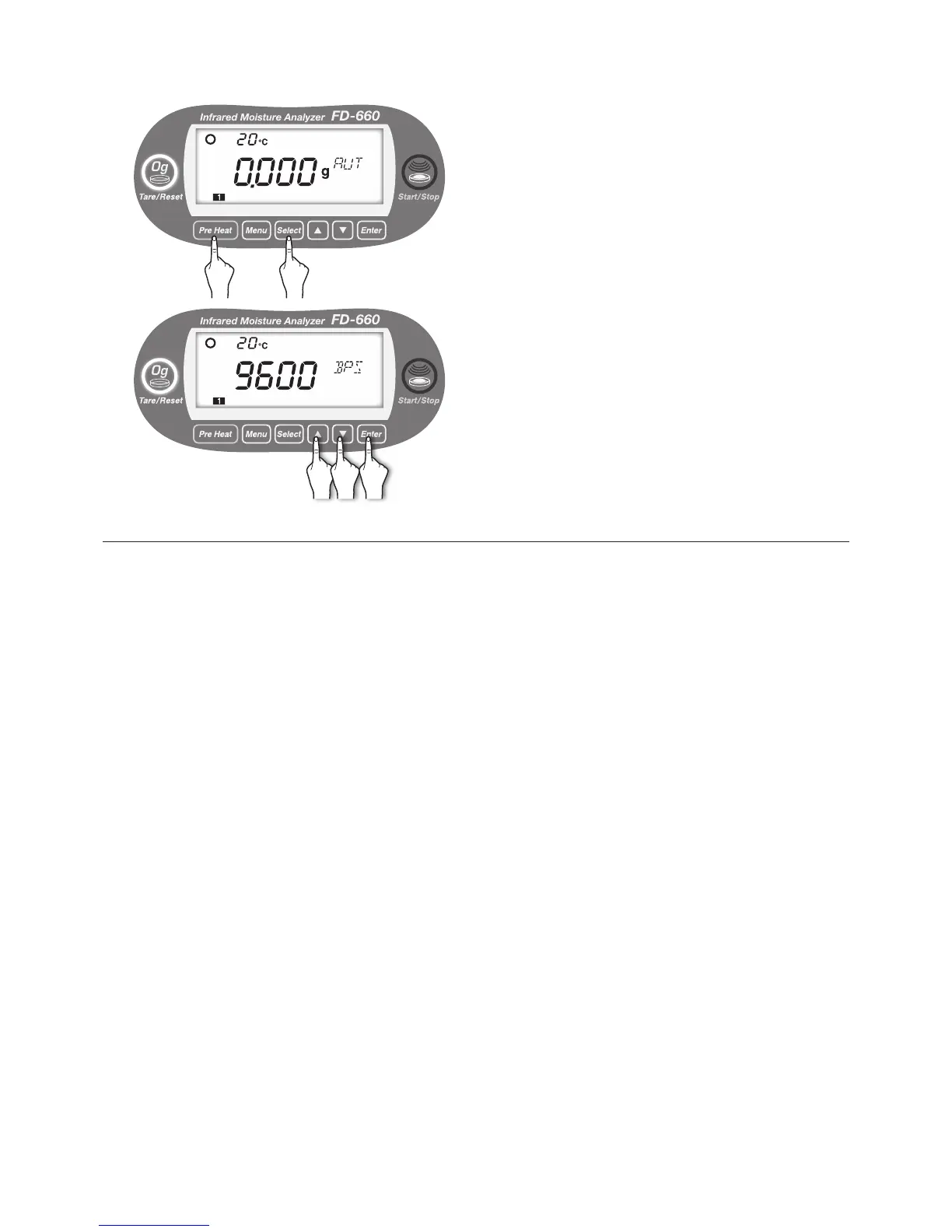

Hold down the [
Pre Heat
] key and [
Select
] key
simultaneously with the display showing the weight.
The setting value of the current baud rate is displayed.
Every time the [▲] or [▼] key is pressed, "2400" → "4800"
→ "9600" → "1200" → "2400" ... is alternately displayed.
2
① ②
①
Press the [▲] or [▼] key to select a baud rate value to
be set. (In the example at left, 9600 BPS is selected.)
②
Press the [
Enter
] key.
n
Computer Output Format
Interface type: RS-232C
Numeric output format: JIS(ASCII)
Delimiter code: 0x09(tab)
Delimiter: 0x0D (CR)+0x0A(LF)
l
Title output format at the time of measurement start (Underscore characters (i.e., ‘_’) are
used below to indicate blanks (i.e., ‘20’ in hexadecimal)
1. “_KETT_ELECTRIC_LABORATORY” + delimiter
2. “_Model_:_FD-660” + delimiter
3. “_S/N_”+”XXXXXXX” (7-byte Serial No.) + delimiter
4. “_Setting_:_”+”X” (1-byte setting number) + delimiter
5. “_Unit_:_” + “Wet Base Moist.” or “Dry Base Moist.” or “Solid Content” + delimiter
6. Automatic format
“_Mode_:_Auto” + delimiter
“_Setting Temp._:_” + “XXX” (3-byte temperature setting) + “C” + delimiter
“_Auto Stop Cond._:_”+”X.X” (3-byte automatic settings setting) + “min” + delimiter
7. Timed format
“_Mode_:_Time” + delimiter
“_Setting_Temp._:_” + “XXX” (3-byte temperature setting) + “C” + delimiter
“_Drying_Time_:_” + “XXX” (3-byte drying time setting) + “min.” + delimiter
8. “_Bias_:_”(+”-”) + “X.X”+”%” + delimiter
l
Measurement output format
tab + “Time (min.)” + tab + “Temp. (C)” + tab + “Mass (g)” + tab + “Moist (%)” + delimiter
l
Intermediate measurement output format
The number of characters indicating the moisture content varies with display setting.
tab + “XXX.X” (5-byte measuring time) + tab + “XXX” (3-byte thermistor temperature) +
tab + “XX.XXXX” (7-byte sample weight) + tab + moisture content “XXX.XX” (6-byte moisture content) + delimiter
Or
tab + “XXX.X” (5-byte measuring time) + tab + “XXX” (3-byte thermistor temperature) +
tab + “XX.XXXX” (7-byte sample weight) + tab + moisture content “XXX.X” (5-byte moisture content) + delimiter
l
Final measurement output format
The number of characters indicating the moisture content varies with display setting.
tab + “XXX.X” (5-byte measuring time) + tab + “XXX” (3-byte thermistor temperature) +
tab + “XX.XXXX” (7-byte sample weight) + tab + moisture content “XXX.XX” (6-byte moisture content) + delimiter
Or
tab + “XXX.X” (5-byte measuring time) + tab + “XXX” (3-byte thermistor temperature) +
tab + “XX.XXXX” (7-byte sample weight) + tab + moisture content “XXX.X” (5-byte moisture content) + delimiter
