9-3. Heater Replacement
①
Turn off the power, and unplug the power cord.
②
Remove the heater lid.
③
Remove the heater.
④
Mount a new heater.
Firmly secure the wire and holder base as to cross the wire.
* Plug the the connector on left side, if you are replacing the right heater.
Plug the the connector on right side, if you are replacing the left heater.
* Do not touch the glass part of the new heater with your bare hands.
If an oil spot or soil is attached to the glass surface, the heater may deteriorate, and its life may be shortened.
⑤
Finally, attach the heater lid.
1
2

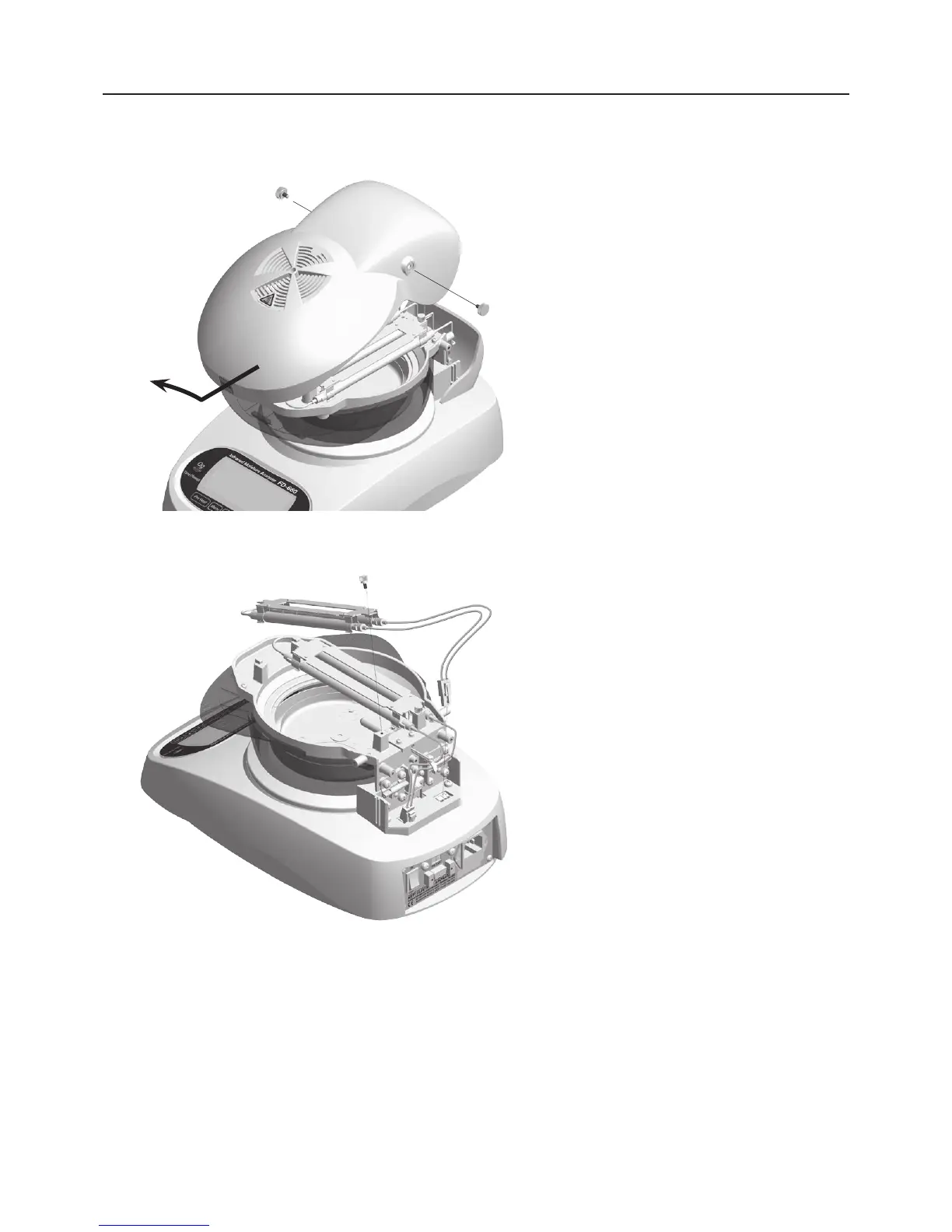

1. Remove the screws on both sides of
the heater lid after ensuring that the
heater lid and heater are thoroughly
cooled.
2. Lift the heater lid diagonally forward
while moving it forward, and remove
the lid.
1. Disconnect the coupling on the back
side of the main unit. If it is hard to
disconnect the coupling, open the
rear cover slightly from side to side
and try to disconnect it.
2. Raise the bracket holding the wire of
the heater, and disengage the wire.
3. Remove the metal thumb nut that
secures the heater holder base.
4. Disengage the hook while moving
the heater holder base backward,
and lift it.
To Next Page
