ENGLISH
Copyright by Keyline - Italy 994 LASER Man. cod. B409619FG Keyline S.p.A. 5

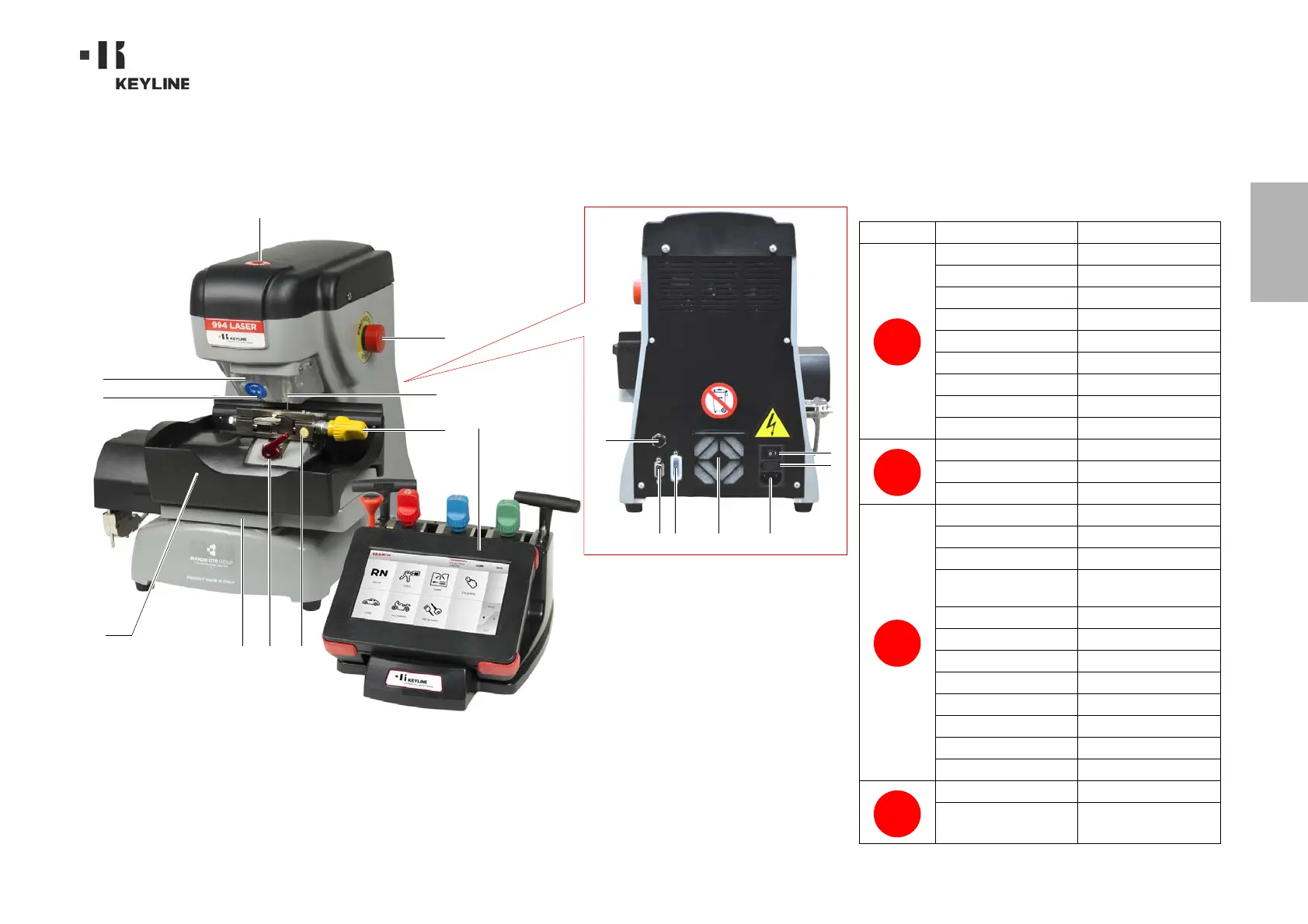

MACHINE DESCRIPTION
2.2.2 Parts- Machine 2.3.0 Jaws supplied with the machine
12
8
4
16
11
5
10
9
7 6
17
1314 15 2
1
3
1. Main switch
2. Power connection
3. Fuses holder
4. Tracer holder
5. Cutter
6. Jaw
7. Levers to lock jaw
8. Levers to lock jaw clamps
9. Jaw support carriage
10. Container to collect waste
11. Protective eye guard
12. Emergency button
13. Serial port (RS232)
14. Input / Output
15. Fan filter
16. Patent pending
17. Console
18. Console power connector
18
Jaw Car brands Key-system
Honda 4 External Track
Gm - Pontiac - GTO 2 External Track
Mercedes 4 External Track
Volvo 4 External Track
Volvo (V50 2004) 2 External Track
Saab 2 External Track
Vauxhall (U.K.) 2 External Track
Ford (U.K.) 2 External Track
Subaru - Outback 4 External Track
BMW 4 External Track
Volvo 2 External Track
Peugeot 4 External Track
Volkswagen 2 Inside Track
Audi 2 Inside Track
Lexus 4 Inside Track
Kia (Amanti: US +
Oprius: UK)
4 Inside Track
BMW 2 Inside Track
Saab 4 Inside Track
Porsche 2 Inside Track
Scoda (U.K.) 2 Inside Track
Seat (U.K.) 2 Inside Track
Vauxhall (U.K.) 2 Inside Track
Ford (U.K.) 2 Inside Track
Mazda - Millennia 4 Inside Track
Chrysler - Crossfire External Track
Mercedes External Track
A
B
C
D
