Keymile SUPM1 - Page 76

User Manual
SUPM1
page 76 of 94© KEYMILE December 2015 EN/LZTBU 372 129/1 RC
94
User Interface Reference

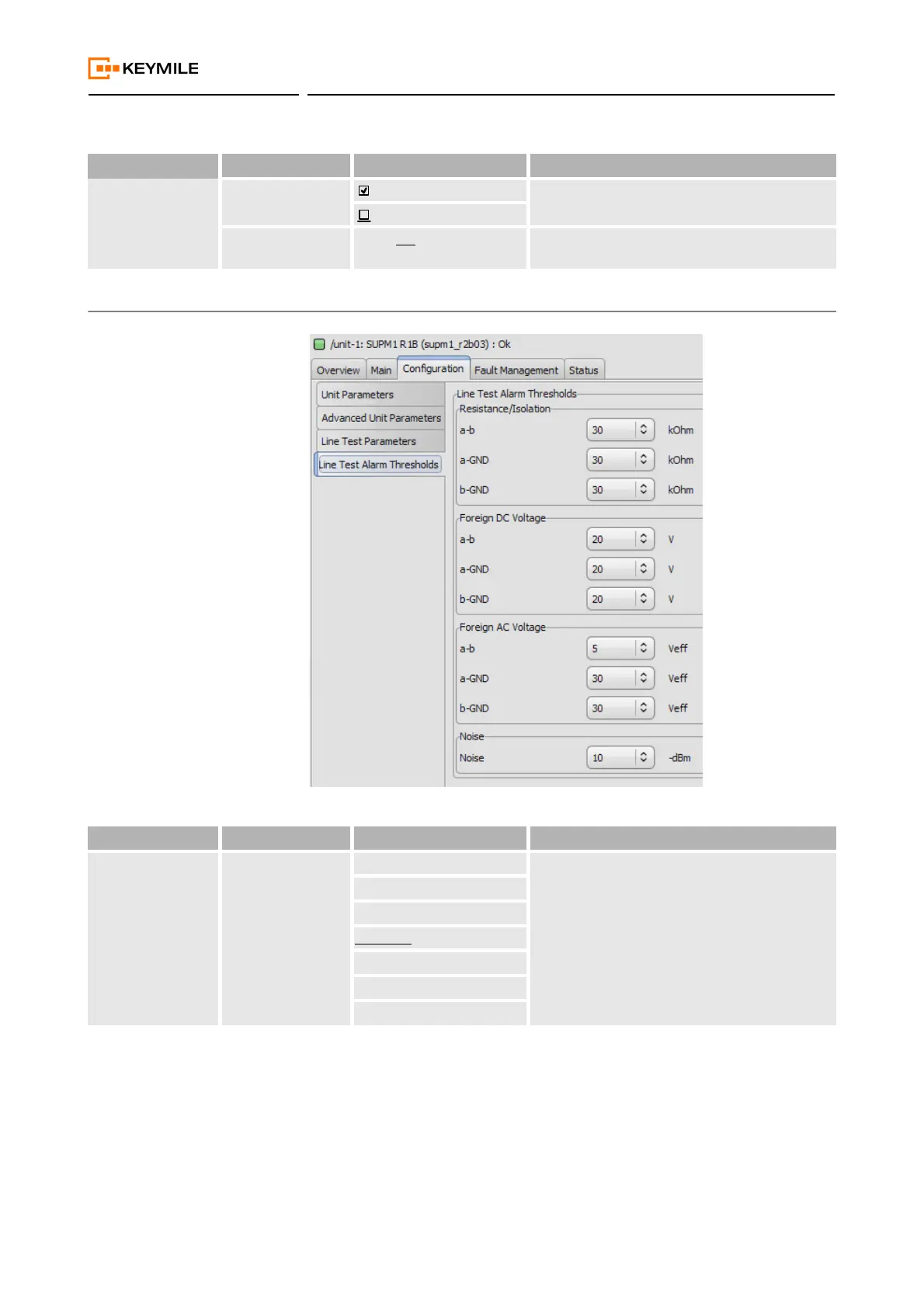

8.2.3.6 AP: / unit-x, Configuration - Line Test Alarm Thresholds
Capacitance
If set to true, the capacitance line-tests will be
done.
Line Test Time-Out 1.0 … 3.0 … 12.0 h,
step 0.5 h
Set the maximum duration a line-test may last.
Table 41: AP: / unit-x, Configuration - Line Test Parameters (continued)
Operation Name Parameter Name Range Description / Details
Table 42: AP: / unit-x, Configuration - Line Test Alarm Thresholds
Operation Name Parameter Name Range Description / Details
Line Test Alarm
Thresholds, Resist-
ance/Isolation
a-b Not Used
Alarm threshold resistance between a-wire and
b-wire.
10 kOhm
20 kOhm
30 kOhm
40 kOhm
50 kOhm
100 kOhm
