8.3.6.4 AP: / unit-x / port-y, Status - CTP

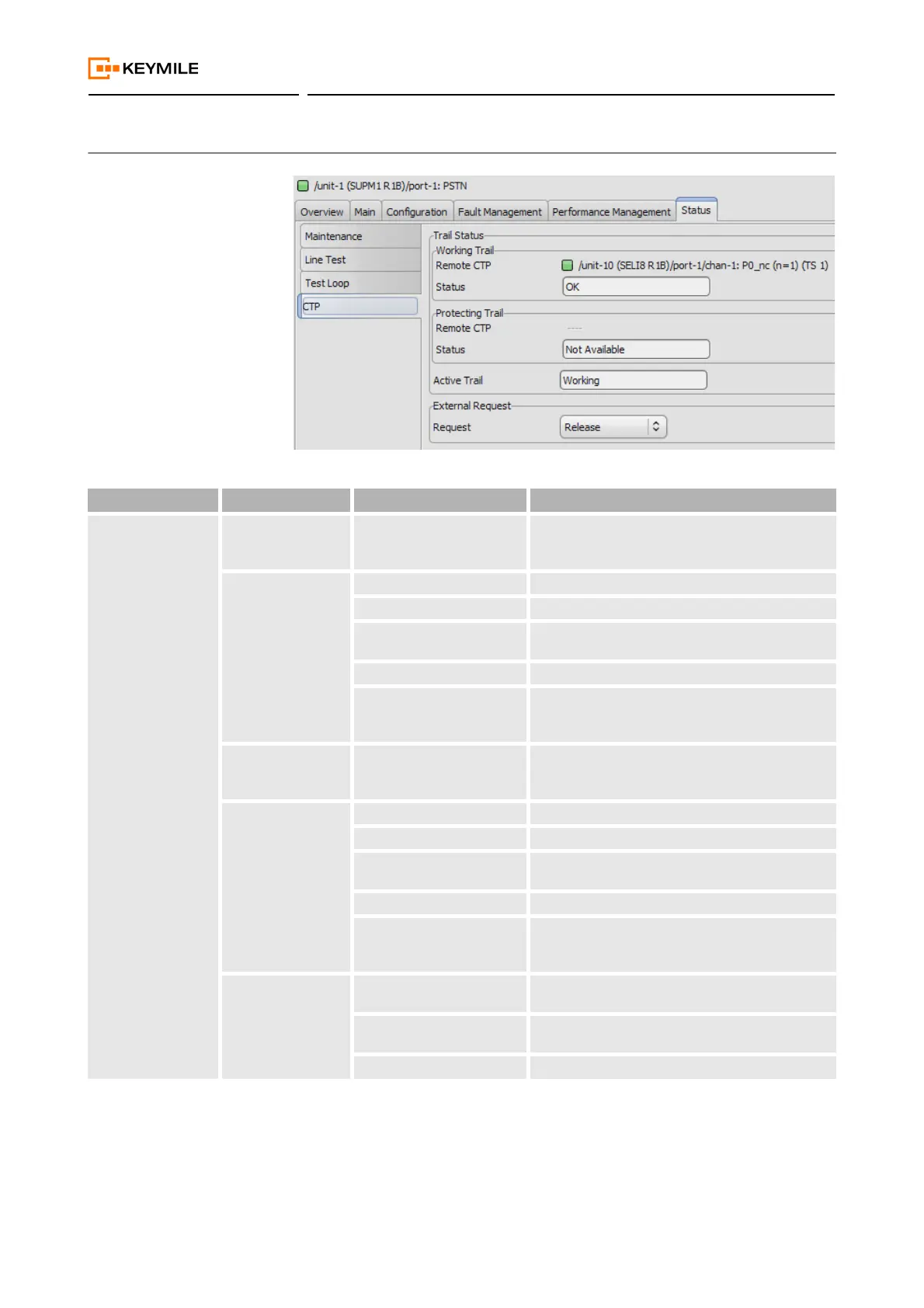

Table 55: AP: / unit-x / port-y, Status - CTP
Operation Name Parameter Name Range Description / Details
Trail Status Working Trail,
Remote CTP
<MO Address>
Managed object address of the CTP (connec-
tion termination point) where the P0-nc signal is
connected to, e.g. /unit-19/portgroup-1/port-1.
Working Trail, Sta-
tus
OK
No failure on the received signal.
SF
Signal Fail status on the received signal.
CAS AIS
CAS AIS status in the received signal, i.e. an all
‘1’ signal.
SD
Signal Degraded status on the received signal.
Not Available
The status of the received signal is not available,
e.g. when the CTPs role is a-end in a unidirec-
tional connection.
Protecting Trail,
Remote CTP
<MO Address>
Managed object address of the CTP (connec-
tion termination point) where the P0-nc signal is
connected to, e.g. /unit-19/portgroup-2/port-1.
Protecting Trail,
Status
OK
No failure on the received signal.
SF
Signal Fail status on the received signal.
CAS AIS
CAS AIS status in the received signal, i.e. an all
‘1’ signal.
SD
Signal Degraded status on the received signal.
Not Available
The status of the received signal is not available,
e.g. when the CTPs role is a-end in a unidirec-
tional connection.
Active Trail Working
The trail from the a-end working remote CTP has
been selected.
Protecting
The trail from the a-end protecting remote CTP
has been selected.
Not Available
There is no active trail.
