1Introduction
18 Keysight J7201A/B/C Operating and Service Manual
This section briefly describes the function of the rear panel connectors of J7201A/B/C.

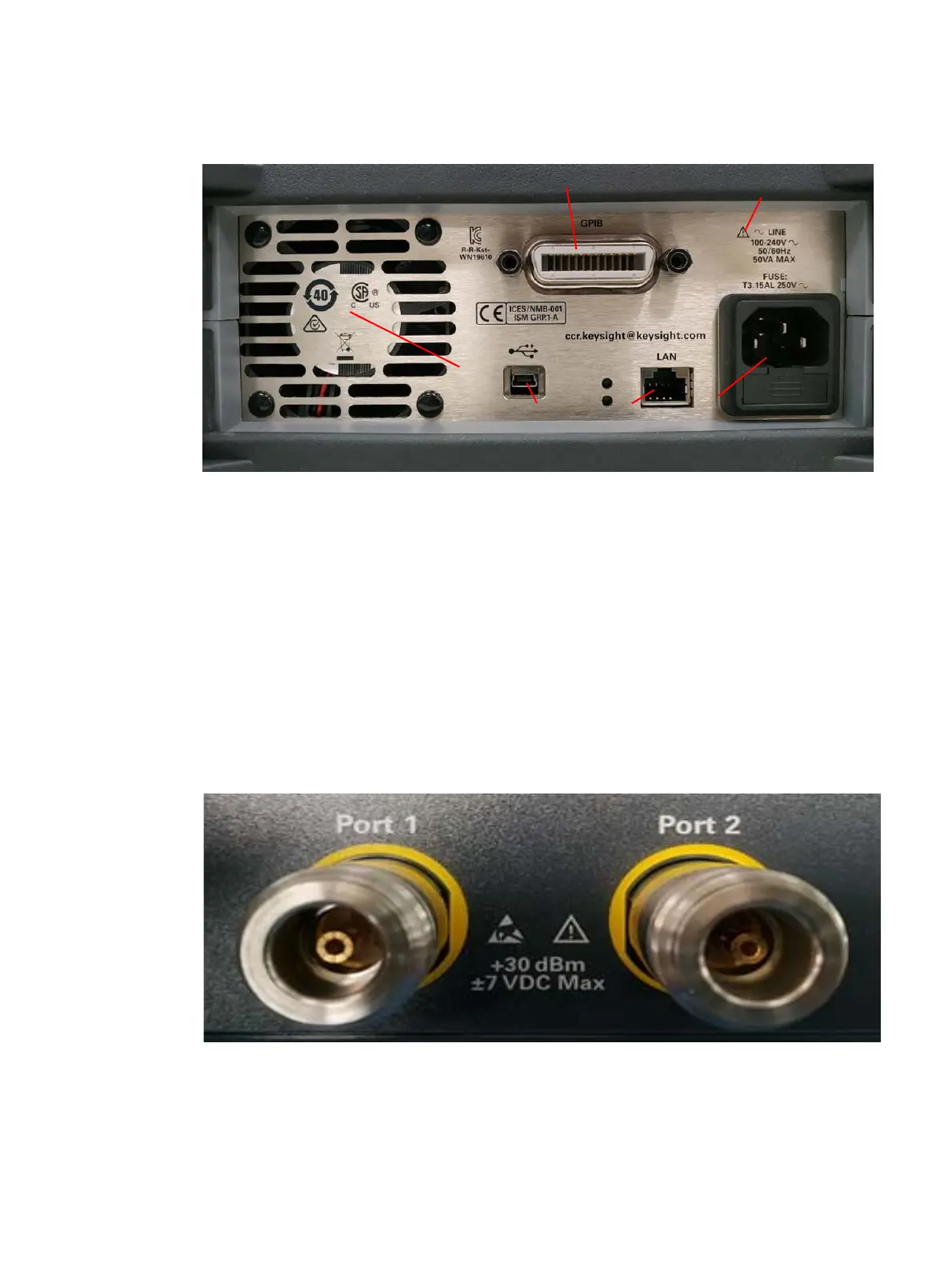

Figure 1-2 J7201A/B/C rear panel features
1GPIB connector: The interface connector from a source device to a listening device for remote
mode of operation.
2Alert symbol: This symbol is used to point out a necessary reference for the user.
3 Receptacle: Matches transformer primary to line voltage via power cable.
4 LAN connector: The interface connector for LAN cable.
5 USB connector: The interface connector for Type mini B 5—pin USB cable.
6 Instrument Markings.
Types of RF connectors for J7201A/B/C
Below illustrations are the RF connectors’ selections for J7201A/B/C.
Figure 1-3 Type N (f) connectors for J7201A/B only
1
2
5
4
3
6
