Keysight Technologies J7201A - Navigation Bar; Displaying the Browser Web Control Page; Figure 7-1 J7201 A;B;C Web Interfaces Home Window; Figure 7-2 Navigation Bar

Remote Interface Configurations 7
Keysight J7201A/B/C Operating and Service Manual 89

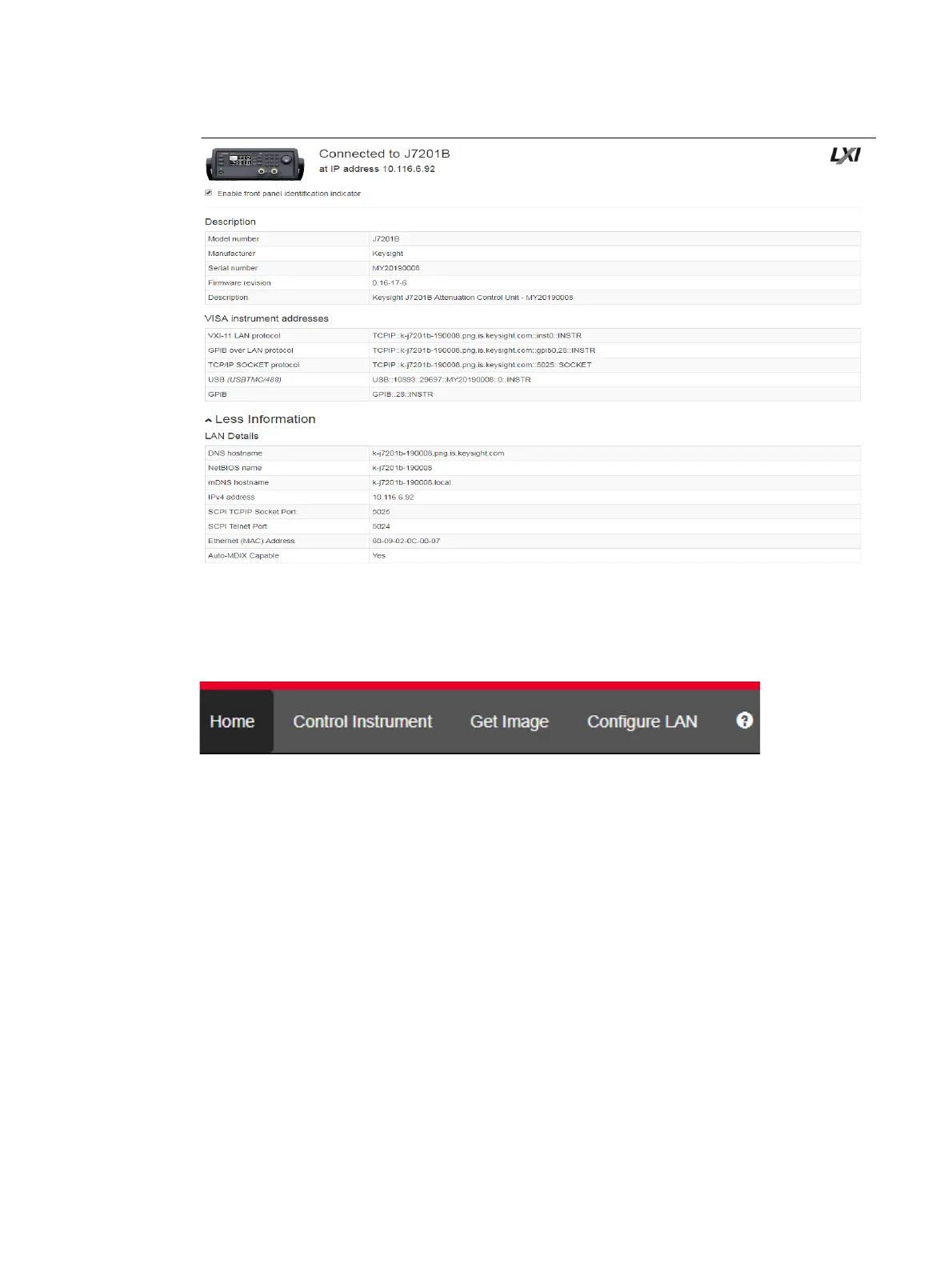

Figure 7-1 J7201A/B/C web interface’s home window
Navigation bar
Figure 7-2 Navigation bar
– Home: Displays various setting information.
– Control Instrument: Virtual front panel.
– Get Image: Receives image.
– Configure LAN: Displays and modifies LAN settings.
– Help icon: Displays the Help file.
Displaying the browser web control page
1 In the Home window, click Control Instrument on the top bar of the window.
2 You can view the virtual front panel of J7201A/B/C.
3 Now, you can control this device remotely, similar to the front panel of the actual instrument.
