Bench Operation
Pull the handle outwards, and adjust it into one of the two positions illustrated in Figure 2-1.
– (Top) Handle placed underneath the instrument to assure self-alignment of the instruments
when stacked
– (Bottom) Handle tilted to raise the front of the instrument for easier viewing of the front panel

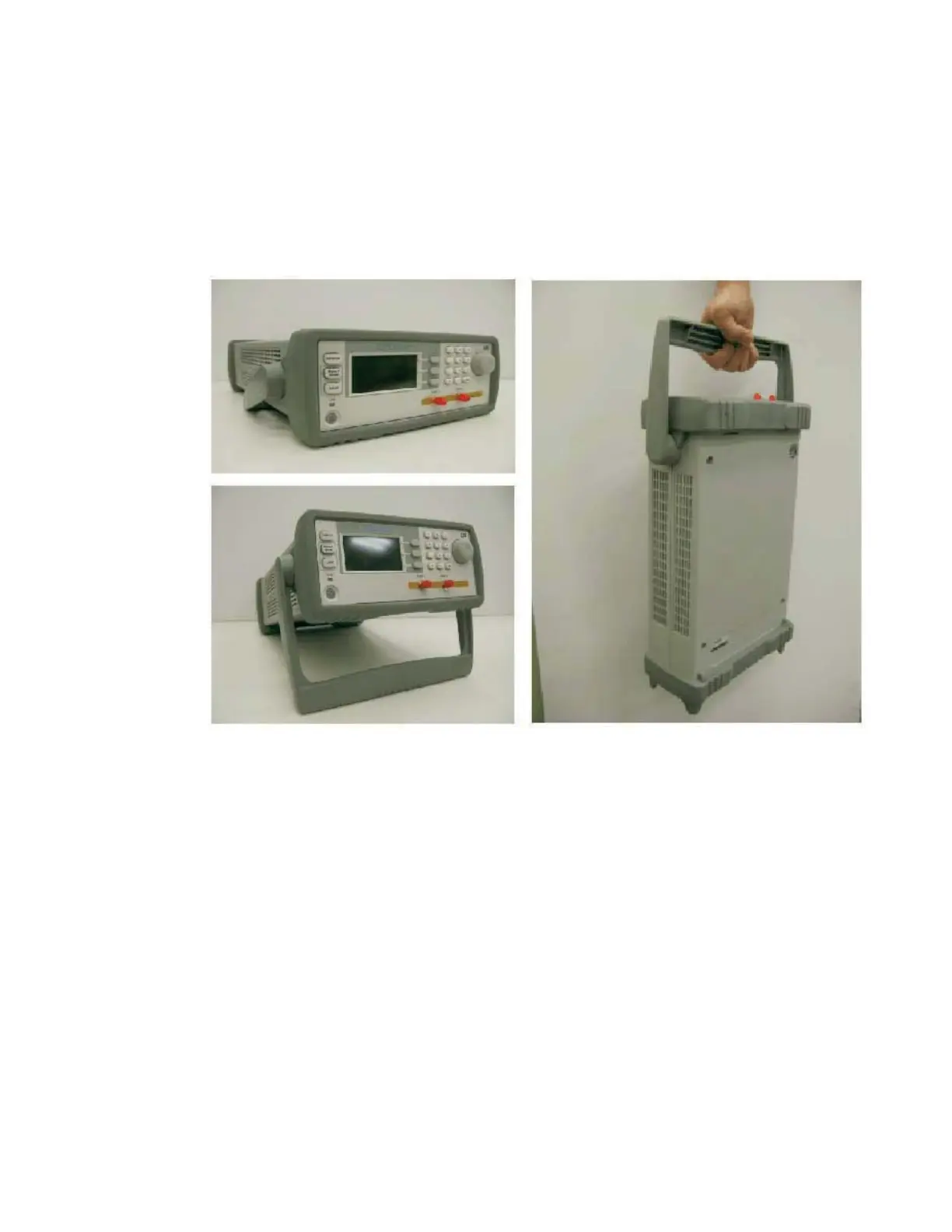

Figure 2-1 Handle positioning for bench operation
