6 Remote Interface Configurations
56 Keysight J7211A/B/C Operating and Service Manual
4 Use the Connectivity Expert utility of the Keysight I/O Libraries Suite to verify that the J7211A/
B/C is displayed under the USB interface.
5 Now you can use various programming environments to control the J7211A/B/C. For an
overview on programming instructions via USB, refer to the Connectivity Guide.
Connecting over LAN
The J7211A/B/C has two LAN operating modes:
–Auto mode
– Manual mode
Selecting the LAN network type
You can connect and configure your J7211A/B/C for site LAN or isolated (non-site) LAN operation.
–A Site LAN network is defined as a local area network (LAN) in which computers and LAN-
enabled instruments are connected to a site LAN (workgroup LAN, Intranet, or enterprise LAN)
via optional routers, hubs, and/or switches.
–A Isolated LAN network is defined as a local area network (LAN) in which computers and LAN-
enabled instruments are NOT connected to site LAN.
Auto mode
This mode is used when you are connecting J7211A/B/C via site LAN. In auto mode, the IP
address, Subnet Mask, and Default Gateway values are obtained from the DHCP server or
automatically assigned and the values can not be configured from the front panel.
1 Firstly, connect your computer and J7211A/B/C to LAN outlets using standard LAN cable.
2 Make sure power is applied to your computer and verify that the operating system is fully
booted.
3 Apply power to J7211A/B/C and background LED color turns red, indicating standby mode.
4 Press once on the ON button and LED color turns from red to green.
5 After several minutes, LAN indicator will turns green which means LAN connection is
established.
6 Then, the LCD screen displays 6 submenus.
To prepare J7211A/B/C for auto mode
Select J7211A/B/C for auto mode

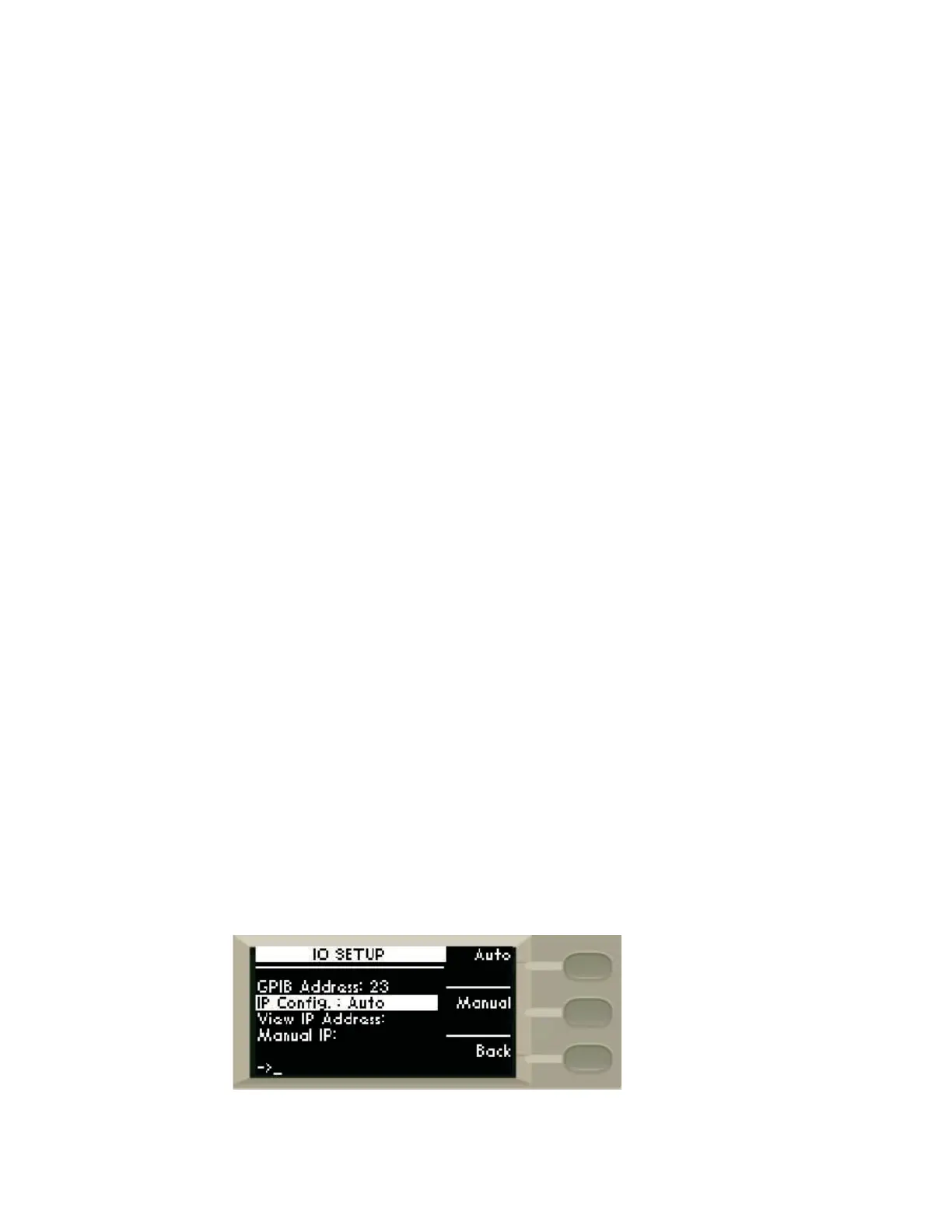

1 IP Config is set default as Auto.
To Next Page
