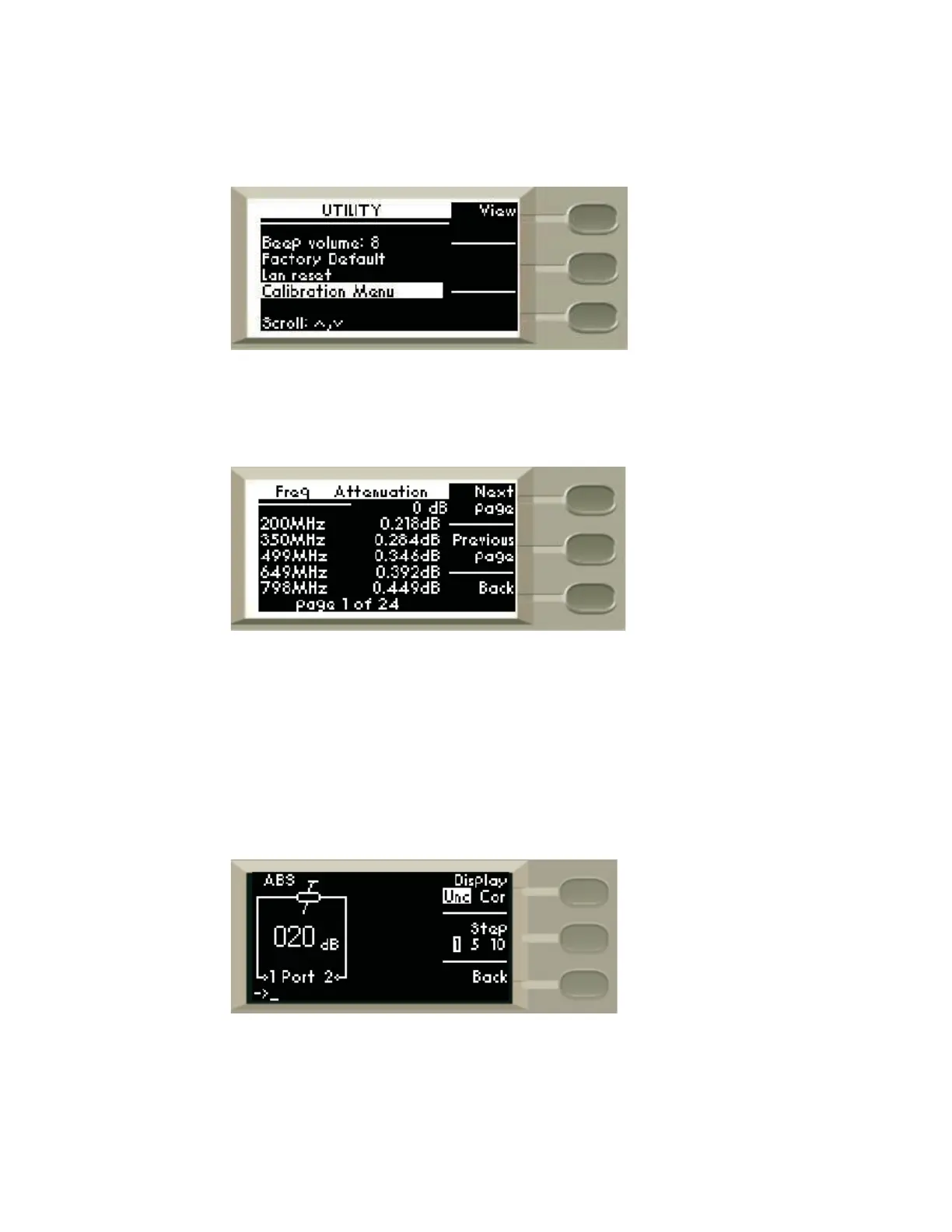

Display cal data for J7211A/B/C:
1 Scroll down to hilight Calibration Menu and press Yes softkey once.
2 On display are all attenuation values at particular frequencies.
3 You can also flip by pressing Next page; Previous page; and Back to the main menu by using
the softkeys.
4 Below of the screen show which page you are at and total pages for cal data.
Relative menu
This relative function enables the user to set the attenuation values relative to the absolute
attenuation for specific application. The currently displayed attenuation is used as a reference
value when this feature is turned on and user may set positive or negative attenuation values from
the reference value. When relative function is disabled, the display returns absolute value of
attenuation setting.
Setting relative attenuation value:
1 In Atten, set attenuation desire attenuation value using keypad.
2 Press Relative button once and button will turn green indicates relative feature is turn on.
3 Notice that REL appears and value 20 dB is set as the relative attenuation.
