148 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Troubleshooting
Rear Panel BNC Connectors
Rear Panel BNC Connectors
There are many different rear panel BNC connectors that provide many
different instrument functions. While the performance verification tests, as well
as the Self Tests, do not test the functionality of these, the user may report that
one or more of these functions is not working properly. To verify the
functionality of these connectors there is a procedure for doing so in the
chapter for the assembly that they are connected to. To determine what
chapter to see for these connectors see Figure 6-5, Figure 6-6, or Figure 6-7
for the instrument being serviced, as well as Table 6-8 to determine the
chapter.

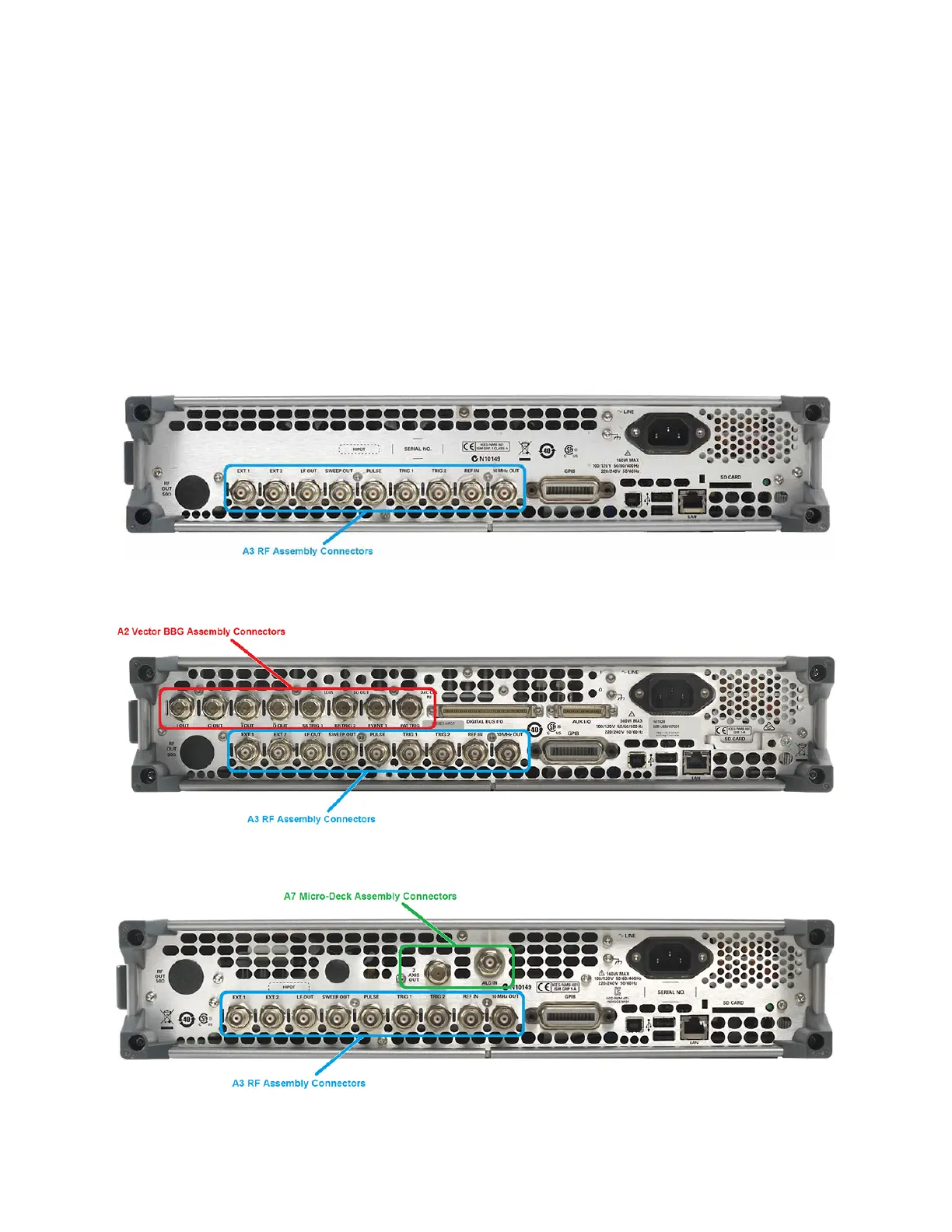

Figure 6-5 N5171B and N5181B Rear Panel BNC Connectors
Figure 6-6 N5166B, N5172B, and N5182B Rear Panel BNC Connectors
Figure 6-7 N5173B and N5183B Rear Panel BNC Connectors
