328 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Assemblies and Cables

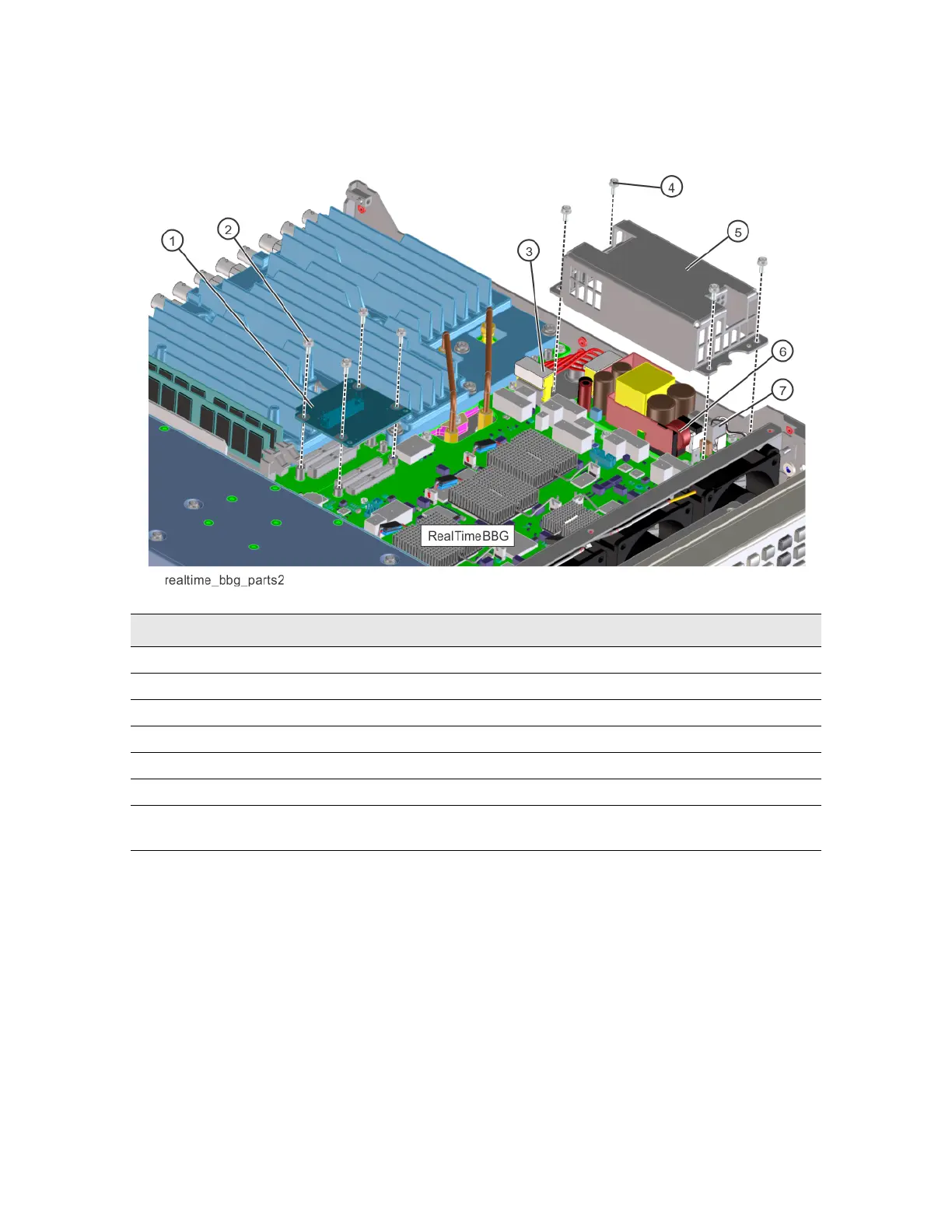

Figure 14-27 A7 Real Time BBG Assembly
Item Description Part Number
A7 Real Time BBG Assembly N5180-60429
1 A8 Real Time BBG Jumper Board N5180-60432
2 and 4 Screw-Machine W/Crest-Cup-Con-Washer Pan-HD Torx-T10 M3 x 0.5 8mm-LG 0515-0372
3 W12, Cable Harness, A7A1 Real Time BBG Aux. Power Supply Output N5180-60181
5 A7A1MP1 Power Supply Cover N5180-60431
6 A7A1 Real Time Aux Power Supply N5180-60430
7 W10, Cable Harness, A1 Power Supply to A7A1 Real Time BBG Aux.
Power Supply Input
N5180-60437
