326 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
Replacement Parts
Assemblies and Cables

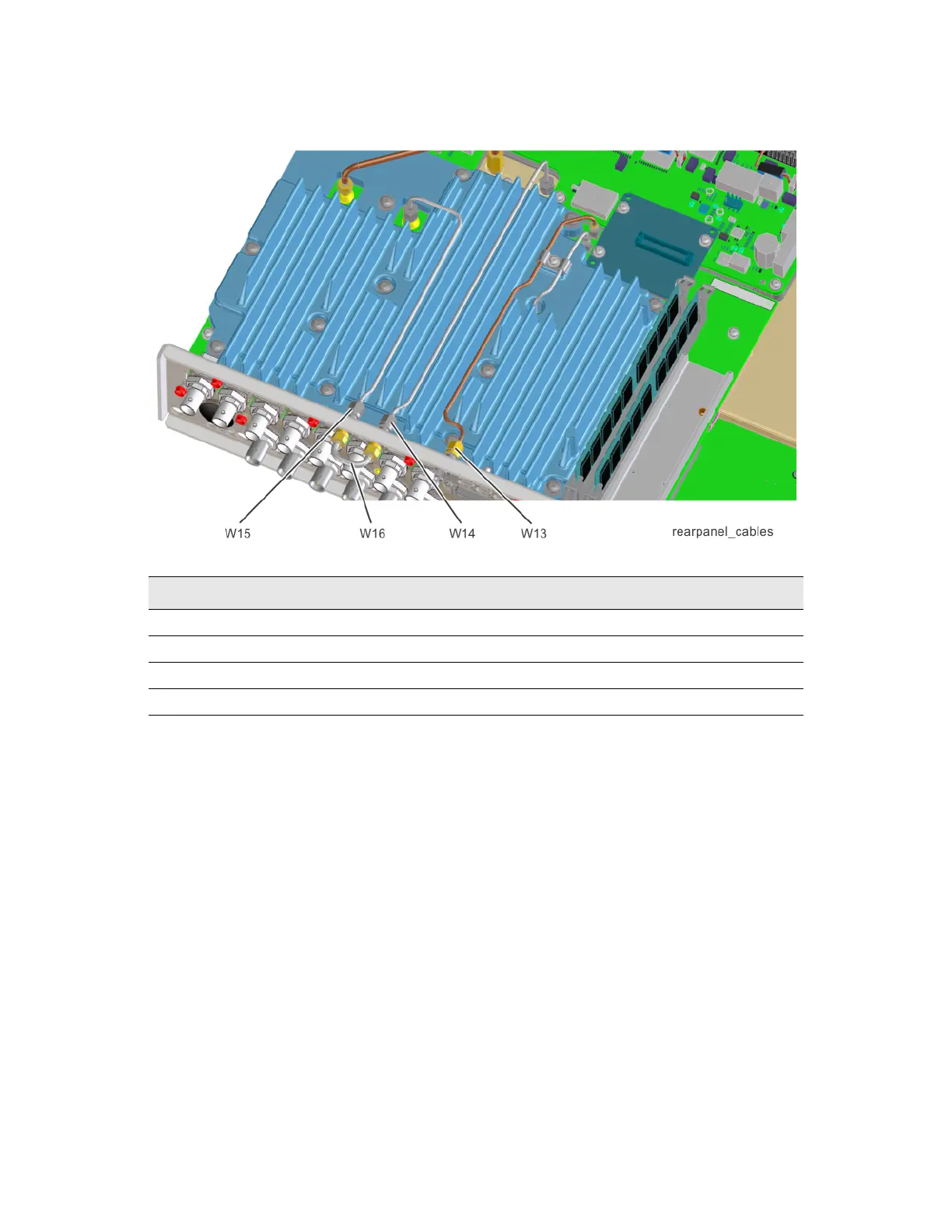

Figure 14-25 Rear Panel Cables - Option 012
Description Part Number
W13, Semi-Rigid Cable, A2 Vector BBG Assy P4 to Rear Panel DAC CLK IN N5180-20186
W14, Semi-Rigid Cable, A3 RF Assy J2004 to Rear Panel LO OUT N5180-20144
W15, Semi-Rigid Cable, Rear Panel LO IN to A2 Vector BBG Assy P1 N5180-20178
W16, Semi-Rigid Cable, Rear Panel LO OUT to Rear Panel LO IN N5180-60458
