Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 103
Service and Utility Menus
Main Firmware Service Menu

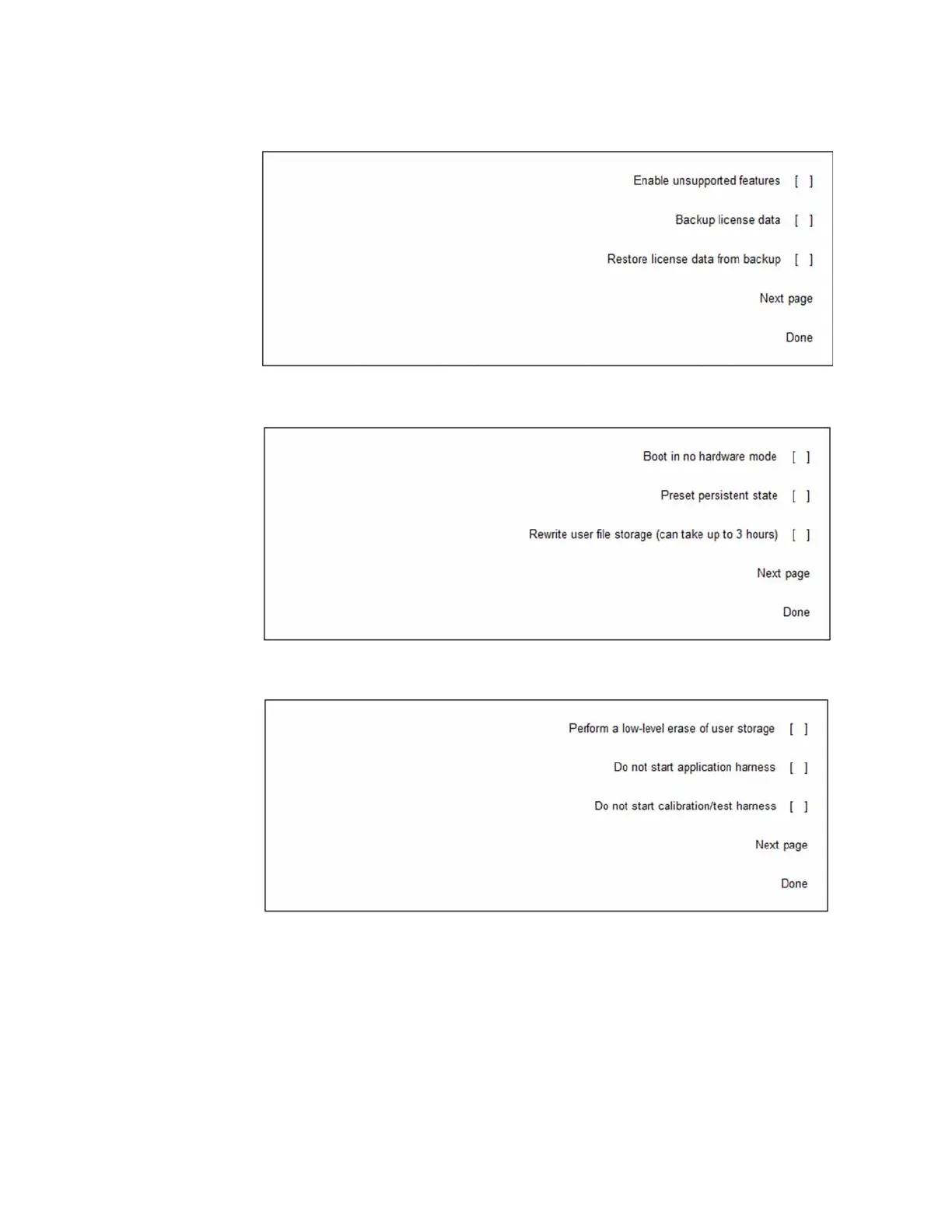

Figure 5-5 Main Firmware Service Menu, Page 2
Figure 5-6 Main Firmware Service Menu, Page 3
Figure 5-7 Main Firmware Service Menu, Page 4
These menu selections are:
Recovery Mode
This will start the recovery firmware. This is used for recovery of corrupted
firmware and/or FPGA images. When the instrument boots up in firmware
recovery mode the display will appear as shown in Figure 5-2. At this point the
instrument firmware can be loaded.
