Keysight Technologies N5172B EXG - A2 Vector BBG Assembly Parts

To Next Page

To Previous Page

Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide 327

Replacement Parts

Assemblies and Cables

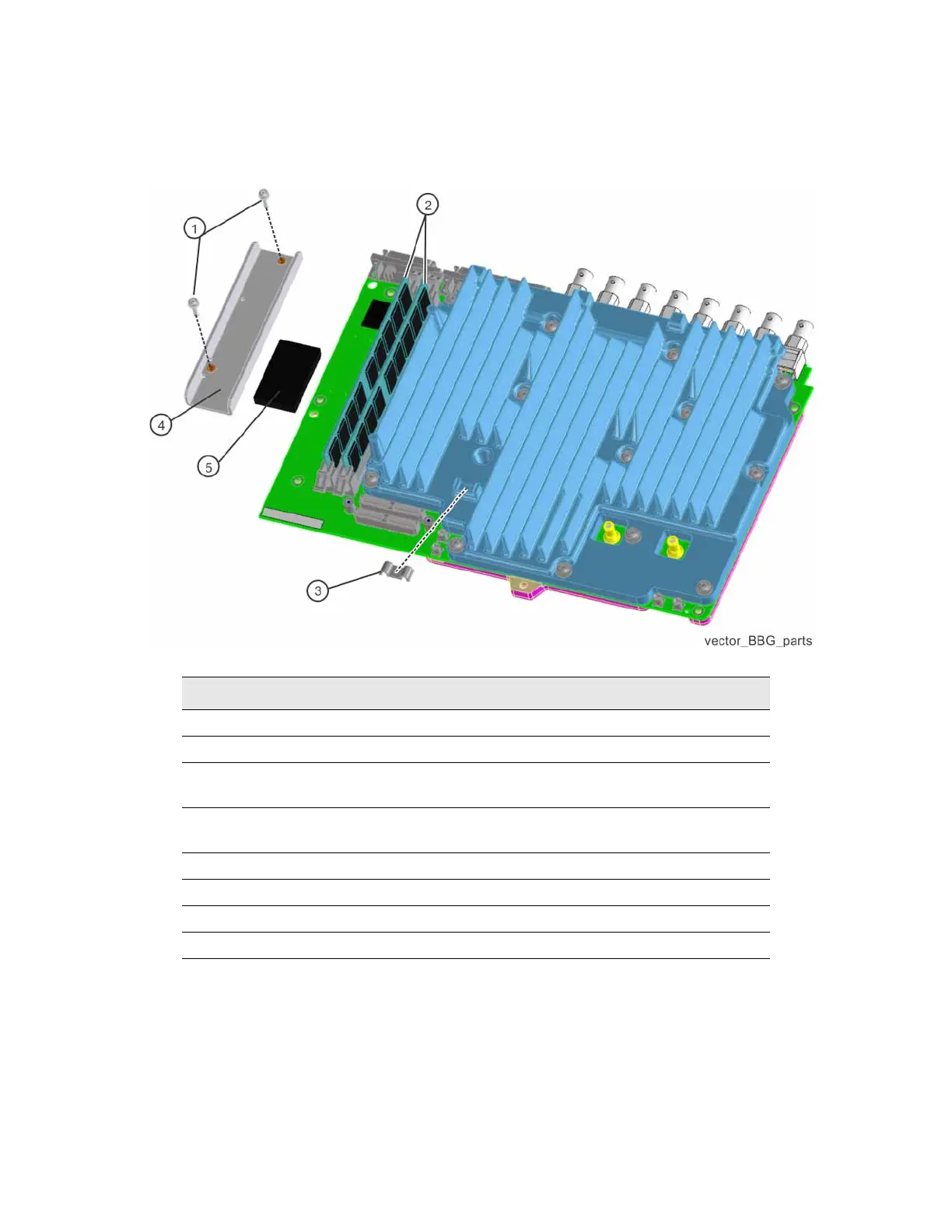

Figure 14-26 A2 Vector BBG Assembly Parts - N5166B/N5172B/N5182B

Item Description Part Number

A2 Vector BBG Assembly N5180-60415

1 Screw, Pan Head, M3 x 0.5, T-10. 18 mm 0515-0666

2 A2A1 Vector BBG Waveform Memory (N5166B,

N5172B - 1 required, N5182B - 2 required)

1819-0590

3 Cable Clamp, W6 Semi-Rigid Cable to A2 Vector

BBG Assy (N5166B, N5172B, N5182B)

1400-3461

4 A2MP1 Connector Preload Bracket w/ Foam N5180-60246

5Foam n/a

not shown Screw (1 ea) 0515-0372

not shown Screws (4 ea) 0515-0374

Keysight Technologies N5172B EXG - A2 Vector BBG Assembly Parts - N5166 B;N5172 B;N5182 B
